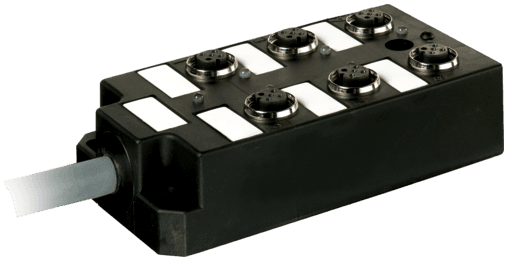

27843 Murr Elektronik I/O Distributors

Product Details

• Weight
  925 g
• Series
  Distribution Systems
• Outer Ø
  9.8 mm ±5%
• Bend radius (moving)
  12× outer Ø
• Locking of ports
  Screw thread (M12×1 mm)
• Jacket Color
  gray
• PIN 5
  (Earth)
• Temperature range
  -20...+80 °C
• Cable number
  388
• Material (jacket)
  PUR/PVC
• Protection
  IP67 inserted and tightened (EN 60529)
• Bend radius (fixed)
  10× outer Ø
• Dimensions H×W×D
  100.5×54.5×25 mm
• Operating voltage
  24 V DC
• C-track properties
  2 Mio.
• Temperature range (fixed)
  -30...+80 °C
• PIN 3
  (-)
• Signal per port
  2
• PIN 1
  (+)
• Total current
  max. 10 A
Temperature range (mobile)
-5...+70 °C
Product article number of manufacturer
27843
No./diameter of wires
12× 0.34 + 3× 0.75 mm²
Color (jacket)
gray
PIN 2
(NC)/(S2)
Operating current per contact
max. 4 A
Wire isolation
PVC (yebr, rd, grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, br, gnye, bl)
PIN 4
(NO)/(S1)
