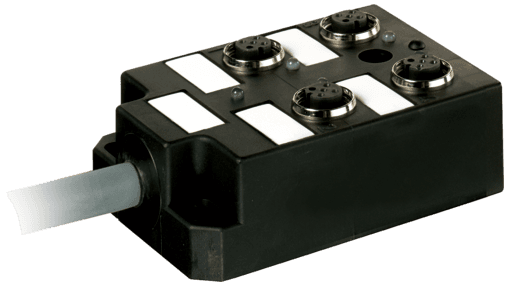

27833 Murr Elektronik I/O Distributors

Product Details

• Weight
  780 g
• Series
  Distribution Systems
• Operating voltage
  24 V DC
• Resistor (core)
  max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
• Jacket Color
  gray
• Bend radius (moving)
  10× outer Ø
• Locking of ports
  Screw thread (M12×1 mm)
• Material (wire)
  Cu wire, bare
• Cable number
  363
• Shield
  no
• Temperature range (fixed)
  -30...+80 °C
• Product article number of manufacturer
  27833
• Wire isolation
  PVC
• Material (wire isolation)
  PVC
• Outer-Ø (jacket)
  8.1 mm ±5%
• Current load capacity
  to DIN VDE 0298-4
• PIN 2
  (NC)/(S2)
• Total current
  max. 10 A
• AWG
  similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
• Color/numbering of wires
  wh, ye, gr, grpk, rdbl, gn, whgn, brgn+bl, br, gnye longitudinally striped
Bend radius (fixed)
5× outer Ø
Operating current per contact
max. 4 A
C-track properties
2 Mio.
Single wire Ø (core)
0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
Material (jacket)
PUR/PVC
Travel speed (C-track)
max. 2 m/s
PIN 5
(Earth)
Temperature range
-20...+80 °C
Cable identification
363
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
Test voltage
2000 V AC
Protection
IP67 inserted and tightened (EN 60529)
Outer Ø
8.1 mm ±5%
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
PIN 1
(+)
No./diameter of wires
8× 0.34 + 3× 0.75 mm²
Cable weight [g/m]
115,5 g
Shore hardness (wire isolation)
43 ±5 D
Nominal voltage
U0/U 300/300 V AC
Acceleration (C-track)
max. 10 m/s²
Signal per port
2
Cable Type
2 (PUR/PVC)
Construction (core)
19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
Shore hardness (jacket)
87 ±5 A
Temperature range (mobile)
-5...+70 °C
PIN 4
(NO)/(S1)
Dimensions H×W×D
82×54.5×25 mm
Approval (cable)
UL (AWM-Style 21441/10955), CE conform
Diameter (core)
8× 0.34 + 3× 0.75 mm²
Color (jacket)
gray
No. of bending cycles (C-track)
max. 2 Mio. (25 °C)
PIN 3
(-)
