CHPT-32.6 Mencom Electronic Components

Name: CHPT-32.6
Brand: Mencom
Price: 98.15 USD
Availability: BackOrder

Part#:CHPT-32.6

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

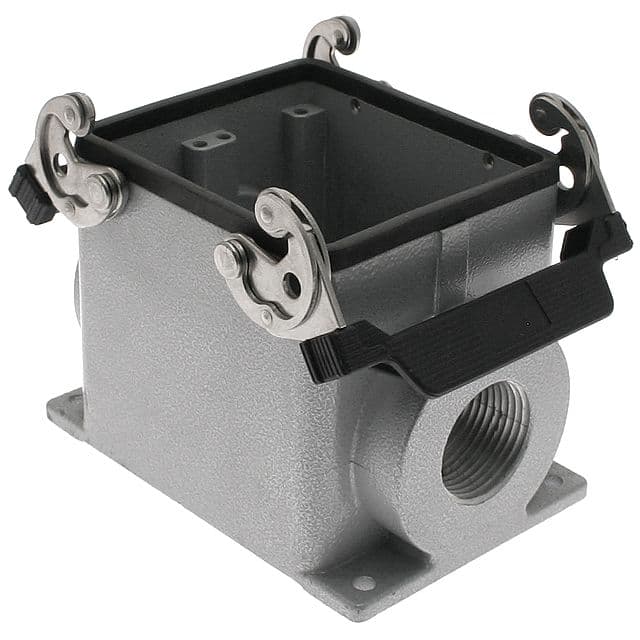

Standard, Rectangular Base, Double Latch, Surface mount, size 77.62, Side 1.0-NPT cable entry

Product Details

Enclosure Dimension
77.62
Housing/Insert Type
Standard
Cover
No
Product Type
Rectangular Connectors
Mounting Style
Surface Mount
Hood Entry
Side
Gender
Male
Weight (lbs.)
1.920000
Hood Thread
1.0-NPT
Enclosure Material
Metal
IP Rating
IP66
Component Type
Base
Lever Type
Double Latch
Number of Entries
1
Temperature Range in Degrees Celsius
-40 C to +125 C
Gasket/O-Ring
Yes
Insert Dimension
77.62
ILME Series
CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CHPT-32.6 on Applied Automation is $98.15. Order now.

CHPT-32.6 Related Documents

CHPT-32.6.PDF-1631086741564.pdf CHPT-32.6.DXF-1631086741560.dxf CHPT-32.6.DWG-1631086741562.dwg
