GV-3 Clippard Electronic Components
Part#:GV-3
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Product description

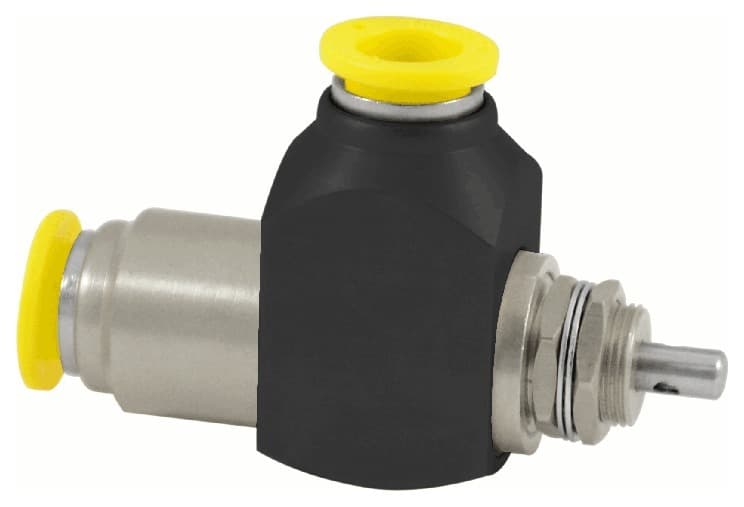

3-Way Stem Valve, 1/4" NPT Female
Product Details
- Mount In-Line
- Unit Imperial
- Operating Temperature Range 32 to 230°F (0 to 110°C)
- Material, Toggle Electroless Nickel-Plated Steel
- Type Standard
- Actuation Stem
- Port, Outlet 1/4" NPT Female
- Material, Seals Nitrile Std., FKM Optional
- Operating Pressure 150 psig max.
- Function 3-Way Normally-Closed
- Weight 0.2000
- Flow Rate 1,070 l/min @ 50 psig (3.5 bar); 1,900 l/min @ 100 psig (7 bar)
- Medium 2-Way: Air, Water or Oil; 3-Way: Air
- Port, Inlet 1/4" NPT Female
- Force 9 lb. nominal @ 100 psig (4 kg @ 7 bar)
- Stem Travel 1/8" (3.2 mm)
- Material, Stem Stainless Steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of GV-3 on Applied Automation is $56.44. Order now.
GV-3 Related Documents
Manufacturer warranty
GV-3 Clippard
$56.44
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$56.44
$56.44 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare GV-3 with other Electronic Components products
Mount
Unit
Operating Temperature Ran...
Material, Toggle
Type
Actuation
Port, Outlet
Material, Seals
Operating Pressure
Function
Selected product
MountIn-Line
UnitImperial
Operating Temperature Range32 to 230°F (0 to 110°C)
Material, ToggleElectroless Nickel-Plated St...
TypeStandard
ActuationStem
Port, Outlet1/4" NPT Female
Material, SealsNitrile Std., FKM Optional
Operating Pressure150 psig max.
Function3-Way Normally-Closed
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
MountManifold
Unit-
Operating Temperature Range32 to 130°F (0 to 55°C) at c...
Material, Toggle-
Type-
Actuation-
Port, Outlet-
Material, SealsNitrile
Operating Pressure95 to 125% of Rated Voltage
Function3-Way Fully-Ported, Universa...
MountManifold Mount
Unit-
Operating Temperature Range32 to 150°F (0 to 66°C)
Material, Toggle-
Type-
Actuation-
Port, Outlet-
Material, SealsNitrile
Operating Pressure28" Hg Vac. to 105 psig
Function3-Way Universally-Ported
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
Recently viewed products
Relevant products
FAQ
What is the price of GV-3?
Purchase the GV-3 from Applied Automation at the price of $56.44. Order today.
Out if stock but available for backorder.
3-Way Stem Valve, 1/4" NPT Female
