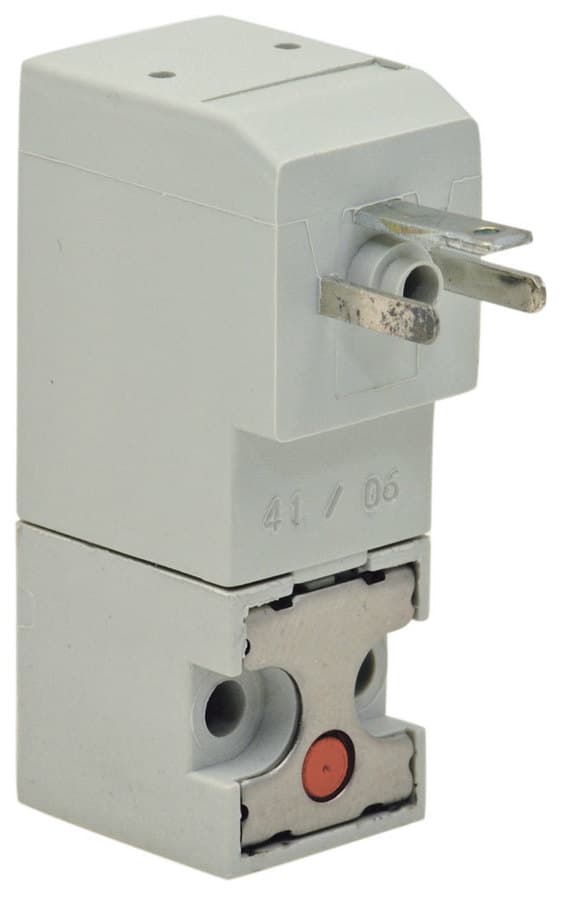

E315F-2D024 Clippard Pneumatic Components
Part#:E315F-2D024
Manufacturer:Clippard
Category:Pneumatic Components
Product Lifecycle:Active
Oct 13, 2026
Product description
15 mm N.C. 3-way Valve, DIN Connector,, 24 VDC
Product Details
- Coil Insulation Class F 311°F (155°C) / H356°F (180°C)
- Medium Air, Water, Gas or Compatible Fluids
- Response Time 6 ms nominal
- Materials Stainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
- Max. Flow 85 l/min @ 100 psig
- Wattage 2.0 Watts
- Mount 2 M3 screws
- Weight 0.0850
- Connection DIN
- Voltage 24 VDC
- Accessories Connectors: 6-240V no LED: CC-C, CC-C-P6, CC-C-P15; 6-24V w/LED: CC-CLL, CC-CLL-P6, CC-CLL-P15; 48-110V w/LED: CC-CLM, CC-CLM-P6, CC-CLM-P15
- Wire Connector DIN 43650 Form C with 8mm spade center spacing
- Function 3-Way Normally-Closed
- Operating Temperature Range 23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
- Voltage Tolerance ±10%
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E315F-2D024 on Applied Automation is $27.19. Order now.
E315F-2D024 Related Documents
Similar products from: Clippard Pneumatic Components
This item can ship in 3-5 days!
Manufacturer warranty
E315F-2D024 Clippard
$27.19
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$27.19
$27.19 each
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare E315F-2D024 with other Pneumatic Components products
Coil Insulation Class
Medium
Response Time
Materials
Max. Flow
Wattage
Mount
Weight
Connection
Voltage
Selected product
Coil Insulation ClassF 311°F (155°C) / H356°F (18...
MediumAir, Water, Gas or Compatibl...
Response Time6 ms nominal
MaterialsStainless steel core & sprin...
Max. Flow85 l/min @ 100 psig
Wattage2.0 Watts
Mount2 M3 screws
Weight0.0850
ConnectionDIN
Voltage24 VDC
Coil Insulation Class-
MediumClean, Dry Air and Compatibl...
Response Time5 to 10 ms (nominal)
Materials-
Max. Flow-
Wattage-
MountManifold Mount
Weight-
ConnectionWire Leads, Side (Radial), 1...
Voltage24 VDC
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
Coil Insulation Class-
MediumCompatible Fluids (40 micron...
Response Time10 to 15 milliseconds
Materials-
Max. Flow-
Wattage-
MountManifold
Weight-
ConnectionWire Leads, 18"
Voltage24 VDC
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
About the Product Category
Components that are pneumatic are crucial elements of a pneumatic system, using compressed air to manage movements and carry out a range of tasks in industries like manufacturing, construction, and automation.
