E315F-2C024 Clippard Pneumatic Components
Part#:E315F-2C024
Manufacturer:Clippard
Category:Pneumatic Components
Product Lifecycle:Active
Oct 13, 2026
Product description

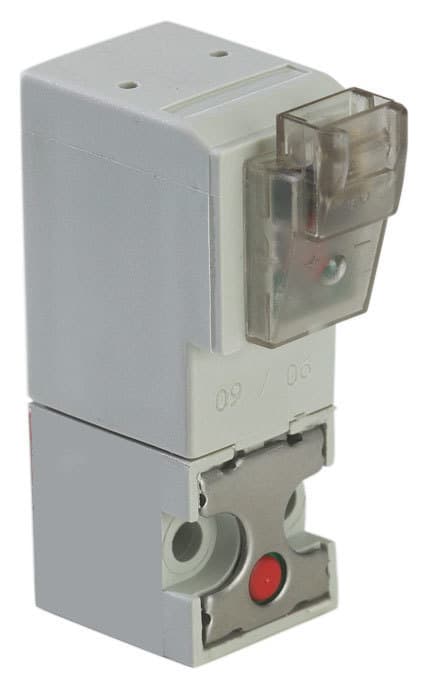

15 mm N.C. 3-way Valve, In-Line Connector, 0.063", 2.3W, 24 VDC
Product Details
- Mount 2 M3 screws
- Response Time 6 ms nominal
- Function 3-Way Normally-Closed
- Accessories Connector Wire with cable: C2A-RB300 (30cm), C2A-RB500 (50cm), C2A-RB1000 (1m)
- Voltage 24 VDC
- Connection 2-Pin In-Line Connector
- Coil Insulation Class F 311°F (155°C) / H356°F (180°C)
- Voltage Tolerance ±10%
- Max. Flow 85 l/min @ 100 psig
- Wattage 2.0 Watts
- Materials Stainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
- Wire Connector Molex #28139 plug with terminal insert #050013-8000
- Medium Air, Water, Gas or Compatible Fluids
- Weight 0.0850
- Operating Temperature Range 23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E315F-2C024 on Applied Automation is $32.84. Order now.
E315F-2C024 Related Documents
Similar products from: Clippard Pneumatic Components
This item can ship in 3-5 days!
Manufacturer warranty
E315F-2C024 Clippard
$32.84
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$32.84
$32.84 each
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare E315F-2C024 with other Pneumatic Components products
Mount
Response Time
Function
Accessories
Voltage
Connection
Coil Insulation Class
Voltage Tolerance
Max. Flow
Wattage
Selected product
Mount2 M3 screws
Response Time6 ms nominal
Function3-Way Normally-Closed
AccessoriesConnector Wire with cable: C...
Voltage24 VDC
Connection2-Pin In-Line Connector
Coil Insulation ClassF 311°F (155°C) / H356°F (18...
Voltage Tolerance±10%
Max. Flow85 l/min @ 100 psig
Wattage2.0 Watts
MountManifold Mount
Response Time5 to 10 ms (nominal)
Function3-Way Universally-Ported
AccessoriesManifolds: Single, Side Port...
Voltage24 VDC
ConnectionWire Leads, Side (Radial), 1...
Coil Insulation Class-
Voltage Tolerance-
Max. Flow-
Wattage-
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
MountManifold
Response Time10 to 15 milliseconds
Function3-Way Fully-Ported, Universa...
Accessories-
Voltage24 VDC
ConnectionWire Leads, 18"
Coil Insulation Class-
Voltage Tolerance-
Max. Flow-
Wattage-
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
About the Product Category
Components that are pneumatic are crucial elements of a pneumatic system, using compressed air to manage movements and carry out a range of tasks in industries like manufacturing, construction, and automation.
Recently viewed products
Relevant products
FAQ
What is the price of E315F-2C024?
Purchase the E315F-2C024 from Applied Automation at the price of $32.84. Order today.
Out if stock but available for backorder.
15 mm N.C. 3-way Valve, In-Line Connector, 0.063", 2.3W, 24 VDC
