E310C-2E024 Clippard Electronic Components
Part#:E310C-2E024
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Product description

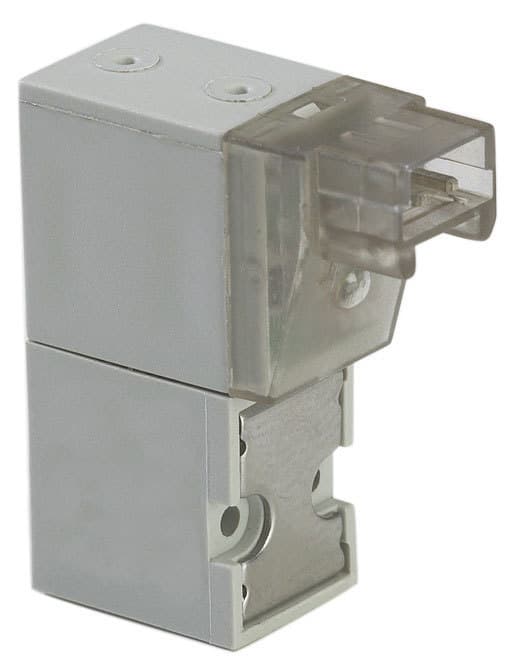

10 mm N-C 3-way Valve, 90° Connector, 24 VDC
Product Details
- Connector Wire Molex #28139 plug with terminal insert #50212-8000
- Operating Pressure 0 to 100 psig (7 bar)
- Mount 2 M17 screws
- Coil Insulation Class F 311°F (155°C)
- Response Time 8 ms nominal
- Function 3-Way Normally-Closed
- Length 1.08
- Materials Stainless steel core and springs, nylon body, FKM dynamic seals, and Nitrile gasket and static seals. FKM gasket and static seals available.
- Operating Temperature Range 14 to 122°F (-10 to 50°C) When below 32°F, must use clean, dry air.
- Medium Air, Water, Gas or Compatible Fluids
- Max. Flow 30 l/min @ 100 psig
- Wattage 1.3 Watts
- Manifolds 10 mm Manifolds
- Voltage 24 VDC
- Connection 90°
- Voltage Operating Range ±10%
- Accessories Connector with cable: C2A-RB300 (30 cm), C2A-RB500 (50 cm), C2A-RB1000 (1 m)
- Weight 0.0250
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E310C-2E024 on Applied Automation is $28.55. Order now.
E310C-2E024 Related Documents
Manufacturer warranty
E310C-2E024 Clippard
$28.55
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$28.55
$28.55 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare E310C-2E024 with other Electronic Components products
Connector Wire
Operating Pressure
Mount
Coil Insulation Class
Response Time
Function
Length
Materials
Operating Temperature Ran...
Medium
Selected product
Connector WireMolex #28139 plug with termi...
Operating Pressure0 to 100 psig (7 bar)
Mount2 M17 screws
Coil Insulation ClassF 311°F (155°C)
Response Time8 ms nominal
Function3-Way Normally-Closed
Length1.08
MaterialsStainless steel core and spr...
Operating Temperature Range14 to 122°F (-10 to 50°C) Wh...
MediumAir, Water, Gas or Compatibl...
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
Connector Wire-
Operating Pressure-
MountManifold
Coil Insulation Class-
Response Time-
Function3-Way Fully-Ported, Universa...
Length-
Materials-
Operating Temperature Range-
MediumCompatible Fluids (40 micron...
CX14NB47501W
ROSS Controls
CX Series 2/2 Solenoid Valve, Normally Closed, Port (In) 1/2" NPT, Port (Out) 1/2"NPT, 24 VDC
Connector Wire-
Operating Pressure-
Mount-
Coil Insulation Class-
Response Time-
Function2/2 Single Solenoid
Length2.83 in (71.8 mm)
Materials-
Operating Temperature Range-
Medium-
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
