E310A-1E024 Clippard Electronic Components
Part#:E310A-1E024
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Oct 9, 2026
Product description

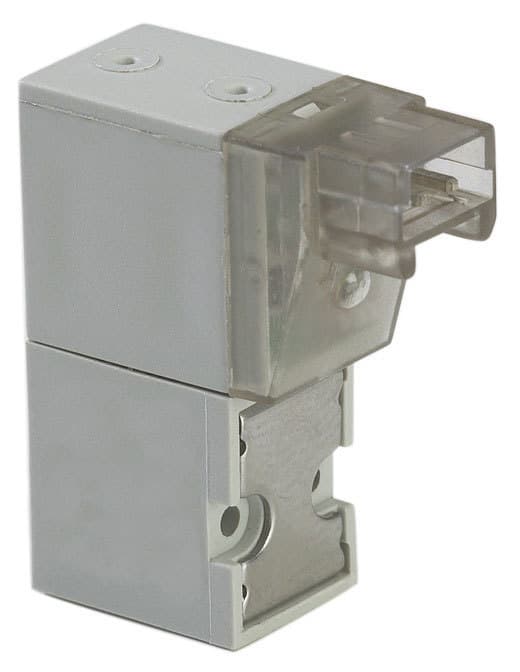

10 mm N-C 3-way Valve, 90° Connector, 24 VDC
Product Details
- Weight 0.0250
- Connection 90°
- Connector Wire Molex #28139 plug with terminal insert #50212-8000
- Length 1.08
- Max. Flow 13 l/min @ 100 psig
- Medium Air, Water, Gas or Compatible Fluids
- Operating Pressure 0 to 100 psig (7 bar)
- Wattage 0.6 Watts
- Mount 2 M17 screws
- Voltage Operating Range ±10%
- Coil Insulation Class F 311°F (155°C)
- Operating Temperature Range 14 to 122°F (-10 to 50°C) When below 32°F, must use clean, dry air.
- Function 3-Way Normally-Closed
- Response Time 10 ms nominal
- Materials Stainless steel core and springs, nylon body, FKM dynamic seals, and Nitrile gasket and static seals. FKM gasket and static seals available.
- Voltage 24 VDC
- Manifolds 10 mm Manifolds
- Accessories Connector with cable: C2A-RB300 (30 cm), C2A-RB500 (50 cm), C2A-RB1000 (1 m)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E310A-1E024 on Applied Automation is $28.55. Order now.
E310A-1E024 Related Documents
Similar products from: Clippard Electronic Components
This item can ship in 3-5 days!
Manufacturer warranty
E310A-1E024 Clippard
$28.55
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$28.55
$28.55 each
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare E310A-1E024 with other Electronic Components products
Weight
Connection
Connector Wire
Length
Max. Flow
Medium
Operating Pressure
Wattage
Mount
Voltage Operating Range
Selected product
Weight0.0250
Connection90°
Connector WireMolex #28139 plug with termi...
Length1.08
Max. Flow13 l/min @ 100 psig
MediumAir, Water, Gas or Compatibl...
Operating Pressure0 to 100 psig (7 bar)
Wattage0.6 Watts
Mount2 M17 screws
Voltage Operating Range±10%
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
Weight0.1500
ConnectionWire Leads, 18"
Connector Wire-
Length-
Max. Flow-
MediumCompatible Fluids (40 micron...
Operating Pressure95 to 125% of Rated Voltage
Wattage1.9 Watts
MountManifold
Voltage Operating Range-
CX14NB47501W
ROSS Controls
CX Series 2/2 Solenoid Valve, Normally Closed, Port (In) 1/2" NPT, Port (Out) 1/2"NPT, 24 VDC
Weight1.4 lb (0.6 kg)
ConnectionEN 175301-803 Form C
Connector Wire-
Length-
Max. Flow-
Medium-
Operating PressureVacuum to 145 psig (vacuum t...
Wattage-
Mount-
Voltage Operating Range-
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
Recently viewed products
Relevant products
FAQ
What is the price of E310A-1E024?
Purchase the E310A-1E024 from Applied Automation at the price of $28.55. Order today.
Out if stock but available for backorder.
10 mm N-C 3-way Valve, 90° Connector, 24 VDC
