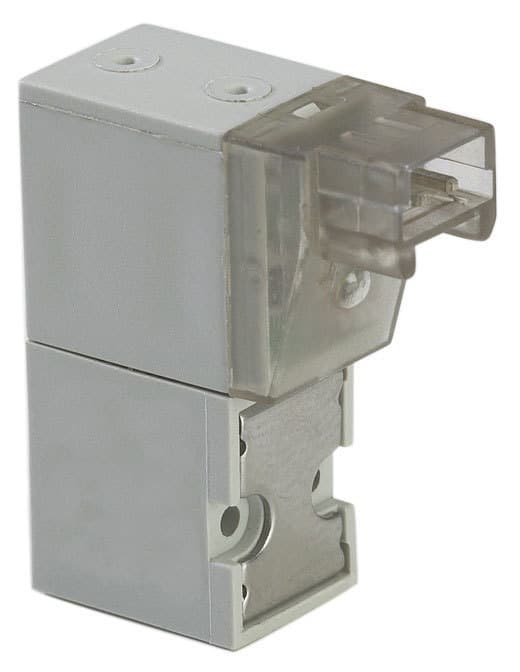

E210A-1E012 Clippard Electronic Components

Product Details

• Medium
  Air, Water, Gas or Compatible Fluids
• Operating Pressure
  0 to 100 psig (7 bar)
• Operating Temperature Range
  14 to 122°F (-10 to 50°C) When below 32°F, must use clean, dry air.
• Response Time
  10 ms nominal
• Voltage Operating Range
  ±10%
• Wattage
  0.6 Watts
• Accessories
  Connector with cable: C2A-RB300 (30 cm), C2A-RB500 (50 cm), C2A-RB1000 (1 m)
• Mount
  2 M1.7 screws
• Voltage
  12 VDC
• Weight
  0.0250
• Function
  2-Way Normally-Closed
• Connector Wire
  Molex #28139 plug with terminal insert #50212-8000
• Coil Insulation Class
  F 311°F (155°C)
• Materials
  Stainless steel core and springs, nylon body, FKM dynamic seals, and Nitrile gasket and static seals. FKM gasket and static seals available.
• Length
  1.08
• Connection
  90°
• Manifolds
  10 mm Manifolds
• Max. Flow
  13 l/min @ 100 psig
