816.780.55 Werma Signal Beacons
Part#:816.780.55
Manufacturer:Werma
Category:Signal Beacons
Product Lifecycle:Active
Product description
LED Perm. Beacon EM 24VDC MC
Product Details
- Materials PC
- Operating voltage type DC
- Light source In the connection area: 2
- UL Type Rating cULus
- Working temperature maximum +50°C
- Product weight 110 g
- Optical signal image MC 7 colours
- Conforms with AS-I Yes
- Type of fixing Built-in mounting
- Operating voltage 24V
- Light colour LED
- Conforms with IC No

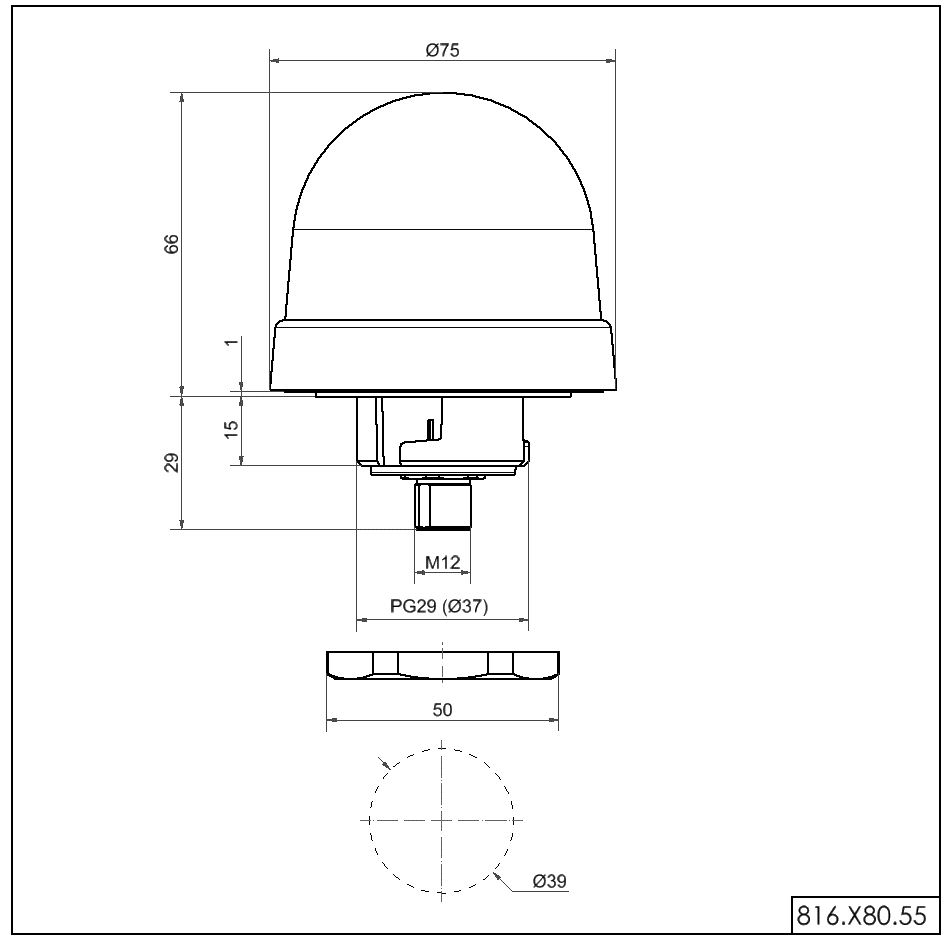

- Diameter 75 mm
- Rated operational voltage 24 VDC
- Conforms with CE 50,000 h maximum
- Conforms with CCC No
- Working temperature minimum -20°C
- Weight with packaging 132 g
- Rated operational current 120 mA
- Service life optical Permanent
- Conforms with FCC Type 12
- ICAO Certification No
- Connection M12 plug 4-pole
- Operating voltage tolerance +/- 10%
- Protection class Protection class 2
- Conform with ATEX-directive Yes
- EAC certificate available No
- Tension relief Present (conforms to VDE)
- Height 97 mm
- Rated inrush current 500 mA
- WEEE Yes
- Conforms with GL No
- Protection category IP65
- Dome colour Clear
- Pollution degree 3
- Conforms with UL No
- Conforms with RoHS CN No
- Conforms with VdS No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
