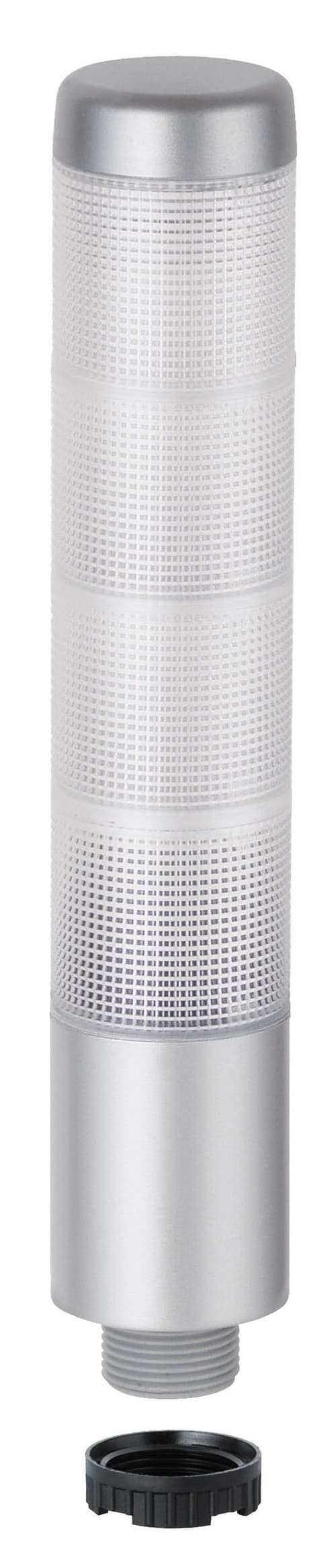

698.330.75 Werma Signal Towers

Product Details

• Height
  141 mm
• Cable entry
  Membrane grommet
• Protection category
  IP65
• Product weight
  146 g
• Rated operational current
  60 mA
• WEEE
  50,000 h maximum
• Conforms with AS-I
  No
• Conforms with RoHS CN
  No
• cross-sectional area maximum
  0,34mm² / 22AWG
• Cable length
  2000 mm
• Working temperature maximum
  +50°C
• Rated inrush current
  500 mA
• Conforms with RED directive
  Yes
• Diameter
  38 mm
• Cable entry minimum
  d = 1 mm
• Operating voltage type
  AC/DC
• Optical signal image
  Red
• Housing colour
  Black
• Working temperature minimum
  -20°C
• Operating voltage
  24V
Pollution degree
3
Conforms with CCC
No
Conforms with VdS
No
Materials
PC
Type of fixing
Built-in mounting
Operating voltage tolerance
+/- 10%
Light source
In the connection area: 2
Conforms with IC
Type 12
UL Type Rating
No
Connection
Cable
Tension relief
Pull-out protection
Rated operational voltage
24 VDC
Service life optical
Yellow
ICAO Certification
No
EAC certificate available
Type 4X
Dome colour
Clear
Cable entry maximum
d = 9 mm
Operating voltage frequency
50Hz
Light colour
LED
Conforms with CE
Permanent
Weight with packaging
179 g
Protection class
Protection class 2
Conform with ATEX-directive
Yes
Conforms with UL
No
Conforms with FCC
cULus
Conforms with GL
Yes
