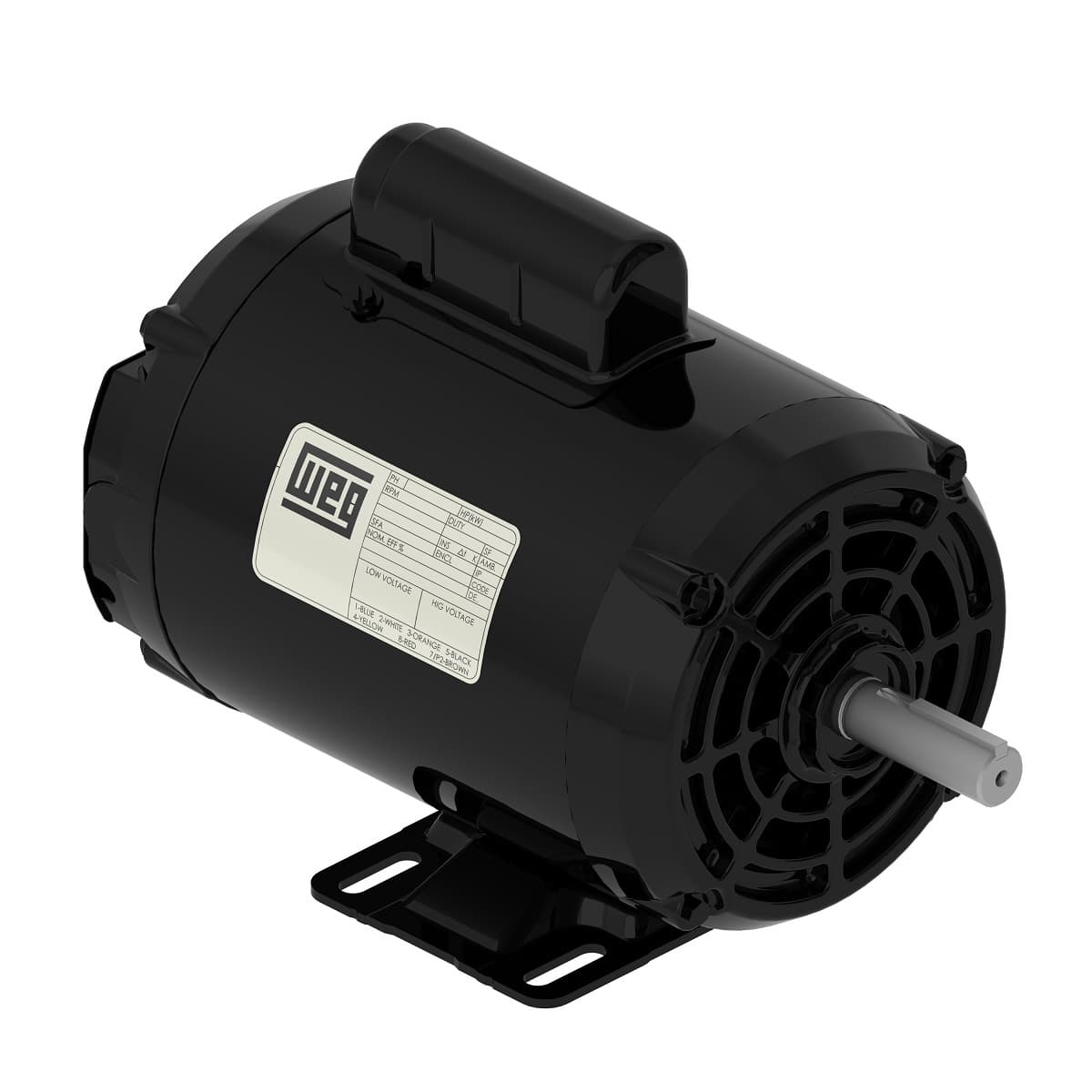

CDS032OM001 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 208-230 V
- Output Rating 3 HP
- Rated Speed 3420 rpm
- Flange Type Without
- Slip 5.00 %
- Locked rotor time 14s (cold) 8s (hot)
- Mounting F-1
- Synchronous speed 3600 rpm
- Rated current 15.0-12.5 A
- Insulation Class F
- Rotation¹ CCW
- Frame D56
- Locked rotor torque 180 %
- Breakdown torque 180 %
- Voltage 208-230 V
- L. R. Amperes 82.5-68.7 A
- Temperature rise 105 K
- Standard NEMA MG-1
- Number of Poles 2
- No load current 2.99-2.70 A
- Starting Method Direct On Line
- Enclosure IC01 - ODP
- Output 3 HP (2.2 kW)
- Moment of inertia (J) 0.0451 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Rated speed 3420 rpm
- Rated torque 4.61 ft.lb
- Altitude 1000 m.a.s.l.
- Terminal box¹ Without Terminal Box
- Rated voltage 208-230 V
- Service factor 1.20
- Approx. weight³ 37.5 lb
- Output rating 3 HP
- LRC 5.5x(Code G)
- Duty Cycle COMPRESSOR DUTY
- Number of poles 2
- Frequency 60 Hz
- Degree of Protection IP21
- Flange Without
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
