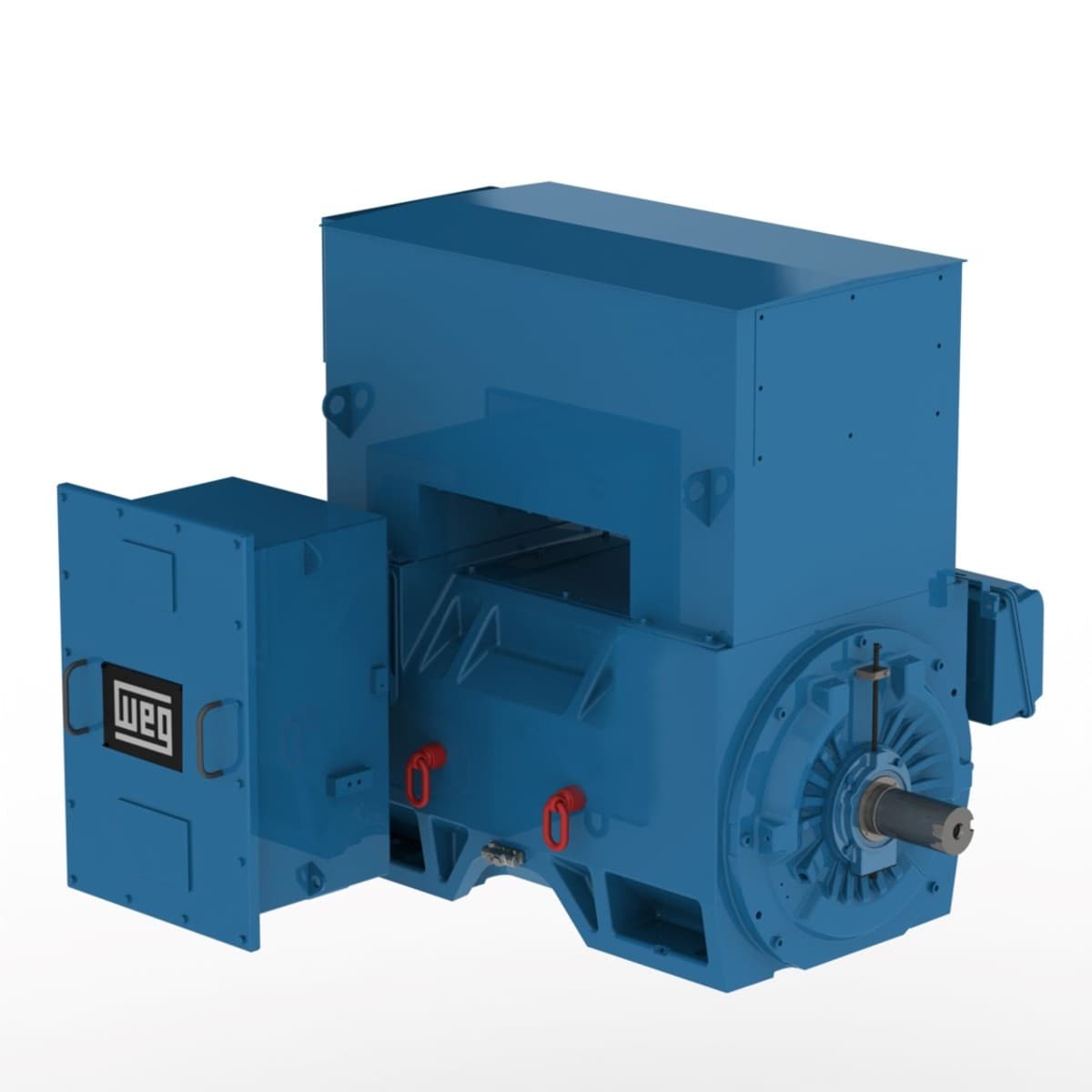

90036WT3X5010-W60MV2 WEG AC Motors
Product Details
- L. R. Amperes 1287/741 A
- Locked rotor torque 60 %
- Mounting F-1
- Rated current 198/114 A
- Breakdown torque 229 %
- Noise level² 85.0 dB(A)
- Rated voltage 2300/4000 V
- No load current 39.5/23.0 A
- Starting Method VFD
- Standard NEMA MG-1
- Frequency 60 Hz
- Moment of inertia (J) 122 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Flange Without
- Number of Poles 2
- Rated torque 1320 ft.lb
- Ambient temperature 0°C to +40°C
- Slip 0.78 %
- Locked rotor time 12s (cold) 7s (hot)
- Degree of Protection IP24
- Voltage 2300/4000 V
- Output 900 HP (660 kW)
- Duty Cycle Cont.(S1)
- Rotation¹ CCW
- Terminal box¹ Left position
- Frame 5010/11
- Insulation Class F
- Approx. weight³ 5488 lb
- LRC 6.5x(Code G)
- Temperature rise 80 K
- Number of poles 2
- Rated speed 3572 rpm
- Service factor 1.00
- Output rating 900 HP
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
90036WT3X5010-W60MV2 Related Documents
Manufacturer warranty
90036WT3X5010-W60MV2 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized WEG distributor, proud to partner with this globally recognized leader in industrial products and solutions. WEG stands out as a manufacturer committed to innovation, sustainability, and technological excellence, offering a vast portfolio of products that cater to diverse industrial needs. With a strong emphasis on energy efficiency and performance, WEG's produc...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
W60 Hazardous Area 900 HP 2P 5010/11 3Ph 2300/4000 V 60 Hz - Foot-mounted
