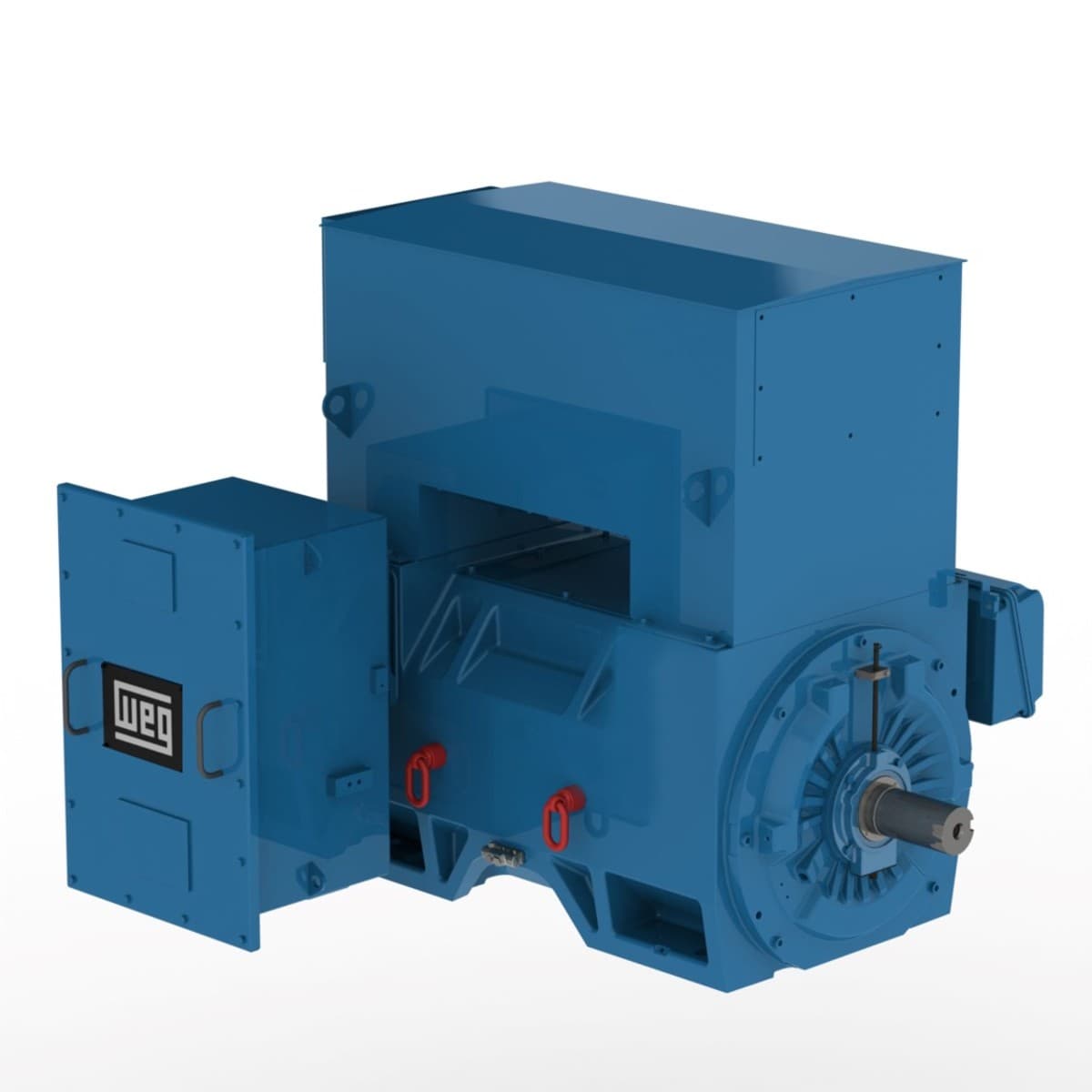

70036WT3X5010-W60MV1 WEG AC Motors
Product Details
- Rated current 112/64.3 A
- Insulation Class F
- Standard NEMA MG-1
- LRC 7.6x(Code H)
- Ambient temperature 0°C to +40°C
- Approx. weight³ 5323 lb
- Flange Without
- Frame 5010/11
- Locked rotor time 18s (cold) 10s (hot)
- Locked rotor torque 90 %
- Number of poles 2
- Number of Poles 2
- Rated torque 735 ft.lb
- Altitude 1000 m.a.s.l.
- Rated speed 3574 rpm
- Duty Cycle Cont.(S1)
- Noise level² 85.0 dB(A)
- L. R. Amperes 851/489 A
- No load current 35.0/20.1 A
- Rotation¹ CW
- Output rating 700 HP
- Slip 0.72 %
- Breakdown torque 240 %
- Mounting F-1
- Synchronous speed 3600 rpm
- Output 500 HP (370 kW)
- Degree of Protection IP24
- Voltage 2300/4000 V
- Frequency 60 Hz
- Moment of inertia (J) 80.9 sq.ft.lb
- Service factor 1.15
- Terminal box¹ Left position
- Rated voltage 2300/4000 V
- Starting Method VFD
- Temperature rise 80 K
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
