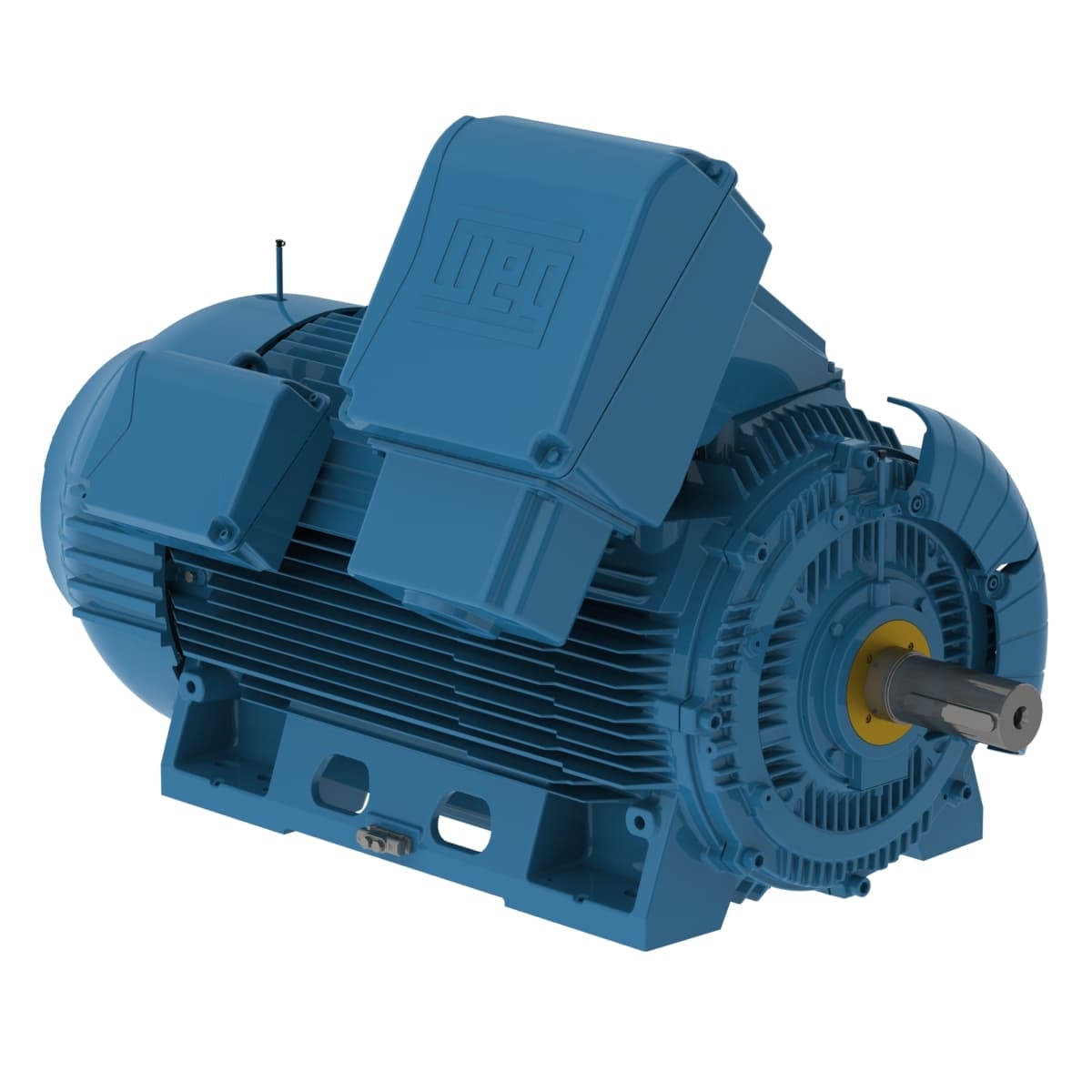

70018WT3X5010-W60MV WEG AC Motors
Product Details
- Rated current 119/68.6 A
- Breakdown torque 280 %
- Approx. weight³ 4630 lb
- Slip 0.44 %
- No load current 47.0/27.0 A
- Mounting F-1
- Output rating 700 HP
- L. R. Amperes 904/521 A
- Service factor 1.15
- Noise level² 85.0 dB(A)
- Rated speed 1792 rpm
- Rated torque 1470 ft.lb
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Insulation Class F
- Number of poles 4
- LRC 7.6x(Code J)
- Ambient temperature 0°C to +40°C
- Rotation¹ Both (CW and CCW)
- Output 500 HP (370 kW)
- Moment of inertia (J) 147 sq.ft.lb
- Standard NEMA MG-1
- Terminal box¹ Left position
- Number of Poles 4
- Locked rotor time 27s (cold) 15s (hot)
- Starting Method VFD
- Altitude 1000 m.a.s.l.
- Frame 5010/11
- Temperature rise 80 K
- Voltage 2300/4000 V
- Rated voltage 2300/4000 V
- Locked rotor torque 100 %
- Degree of Protection IP24
- Flange Without
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
