50036OT3G449TS-RFW40 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 460 V
- Output Rating 500 HP
- Rated Speed 3570 rpm
- Flange Type Without
- Slip 0.83 %
- Locked rotor torque 190 %
- Degree of Protection IP23
- Voltage 460 V
- Breakdown torque 250 %
- Service factor 1.15
- Enclosure IC01 - ODP
- Number of poles 2
- Rated speed 3570 rpm
- No load current 120 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 2252 lb
- Rated voltage 460 V
- Design A
- Altitude 1000 m.a.s.l.
- Output rating 500 HP
- Frequency 60 Hz
- Locked rotor time 25s (cold) 14s (hot)
- Mounting F-1
- Flange Without
- Output 500 HP (370 kW)
- Rated torque 735 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- L. R. Amperes 3806 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Frame 447/9TS
- Moment of inertia (J) 46.9 sq.ft.lb
- Temperature rise 80 K
- Synchronous speed 3600 rpm
- Number of Poles 2
- LRC 7.1x(Code G)
- Ambient temperature -20°C to +40°C
- Noise level² 87.0 dB(A)
- Terminal box¹ Left position
- Rated current 536 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
50036OT3G449TS-RFW40 Related Documents
Manufacturer warranty
50036OT3G449TS-RFW40 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized WEG distributor, proud to partner with this globally recognized leader in industrial products and solutions. WEG stands out as a manufacturer committed to innovation, sustainability, and technological excellence, offering a vast portfolio of products that cater to diverse industrial needs. With a strong emphasis on energy efficiency and performance, WEG's produc...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.

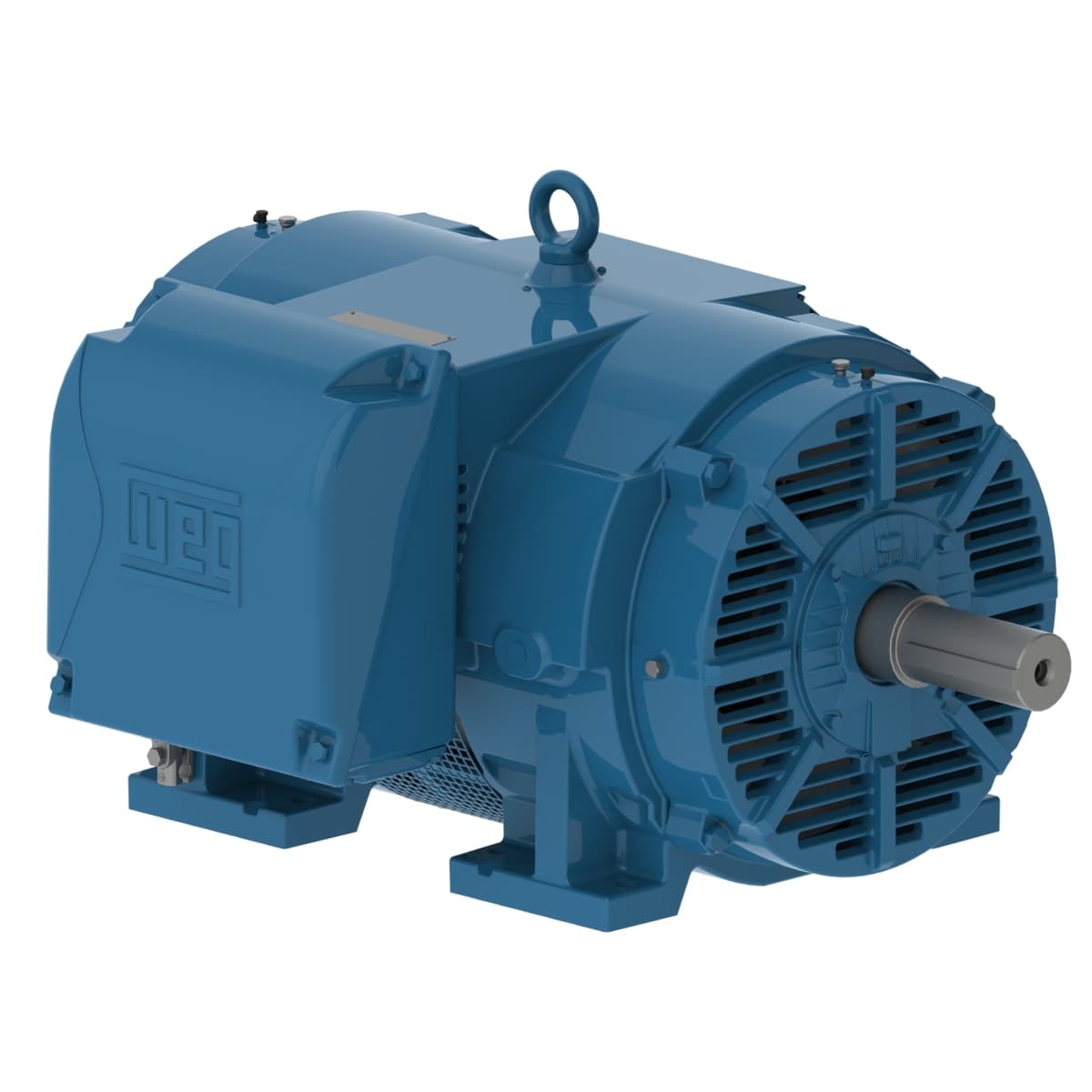

W40 NEMA Premium Efficiency 500 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
