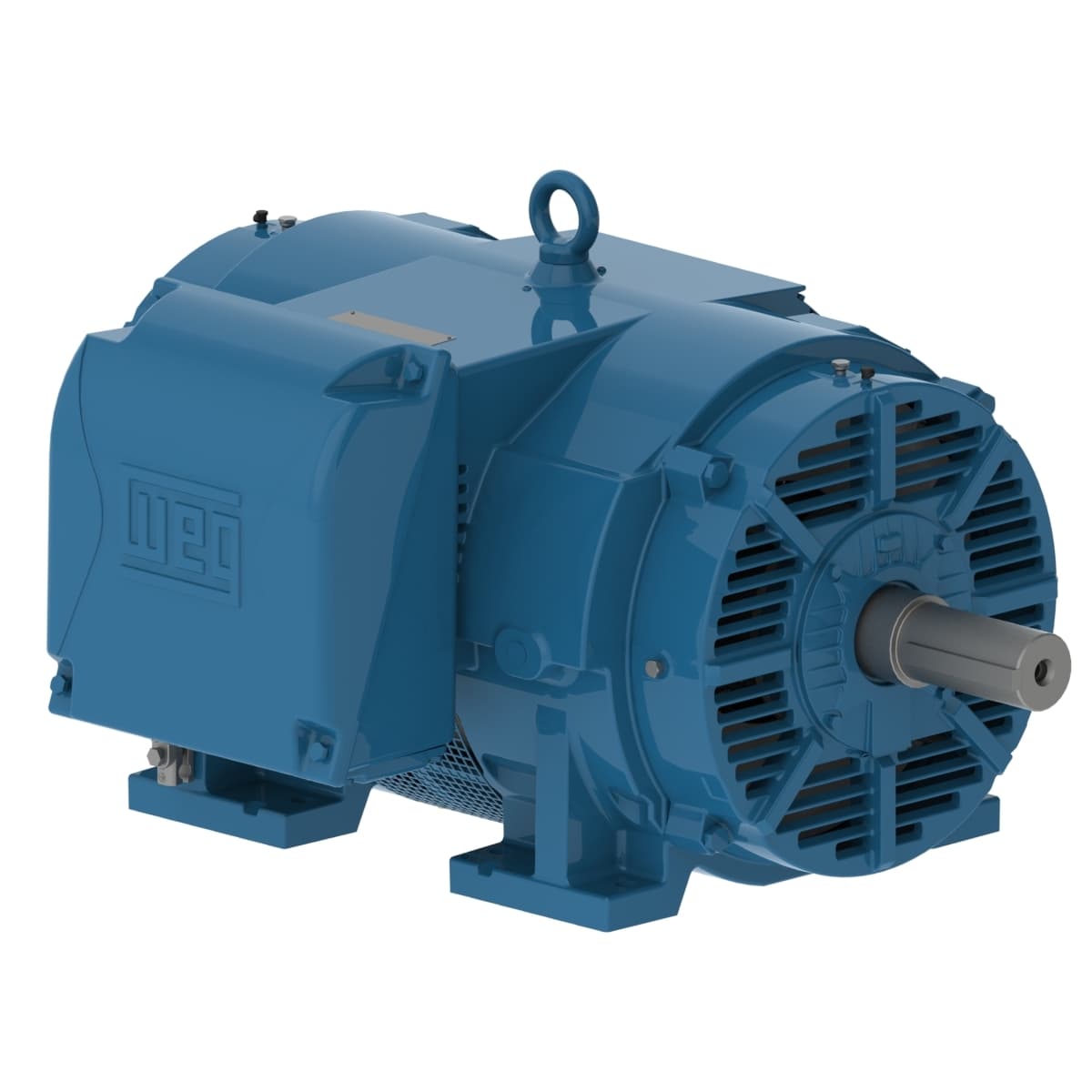

35036OP3GFP447/9TSW4 WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  460 V
• Output Rating
  350 HP
• Rated Speed
  3565 rpm
• Flange Type
  Without
• Number of Poles
  2
• Slip
  0.97 %
• LRC
  6.5x(Code G)
• Rated torque
  516 ft.lb
• Insulation Class
  F
• Ambient temperature
  -20°C to +40°C
• Rotation¹
  Both (CW and CCW)
• Output rating
  350 HP
• Rated speed
  3565 rpm
• Design
  B
• Degree of Protection
  IP23
• Synchronous speed
  3600 rpm
• Rated voltage
  460 V
• Temperature rise
  80 K
• Mounting
  F-1
Terminal box¹
Left position
L. R. Amperes
2509 A
Service factor
1.15
Voltage
460 V
Locked rotor time
25s (cold) 14s (hot)
Moment of inertia (J)
35.7 sq.ft.lb
Noise level²
85.0 dB(A)
Frequency
60 Hz
No load current
88.0 A
Enclosure
IC01 - ODP
Flange
Without
Rated current
386 A
Starting Method
Direct On Line
Standard
NEMA MG-1
Output
350 HP (260 kW)
Locked rotor torque
170 %
Duty Cycle
Cont.(S1)
Number of poles
2
Frame
447/9TS
Breakdown torque
250 %
Altitude
1000 m.a.s.l.
Approx. weight³
1965 lb
