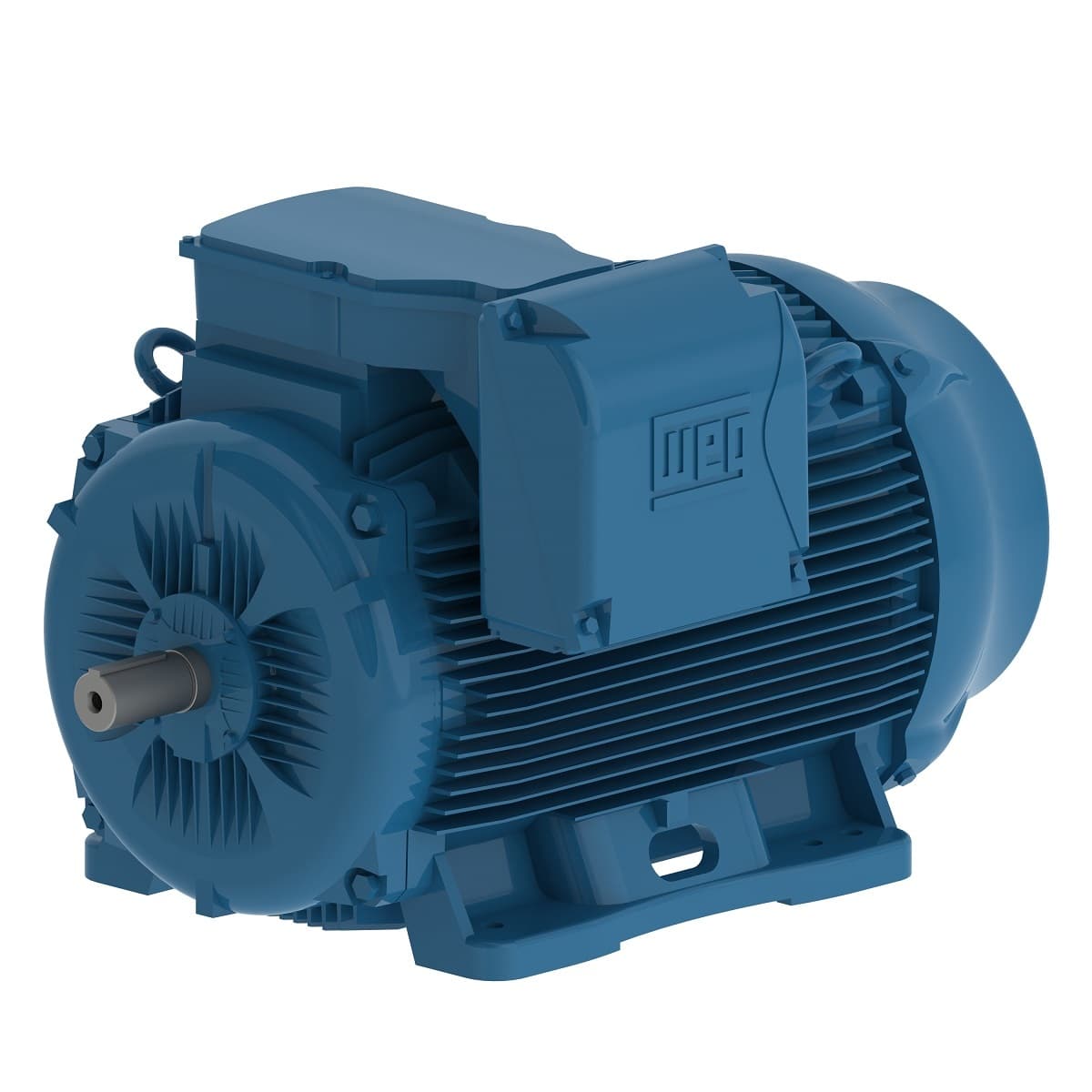

30036ET3Y355M/L-W22 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 380 V
- Output Rating 400 HP
- Rated Speed 2982 rpm
- Flange Type Without
- LRC 7.5
- Moment of inertia (J) 143 sq.ft.lb
- Degree of Protection IP55
- Output 400 HP (300 kW)
- Locked rotor time 54s (cold) 30s (hot)
- Starting Method Direct On Line
- Noise level² 80.0 dB(A)
- Frequency 50 Hz
- No load current 85.0 A
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Rated voltage 380 V
- Locked rotor torque 229 %
- Ambient temperature -20°C to +40°C
- Output rating 400 HP
- Number of Poles 2
- Insulation Class F
- Voltage 460//380-415 V
- L. R. Amperes 3968 A
- Duty Cycle S1
- Approx. weight³ 4053 lb
- Slip 0.60 %
- Rated torque 704 ft.lb
- Temperature rise 80 K
- Standard NEMA MG-1
- Frame 355M/L
- Design N
- Mounting B3L(E)
- Flange Without
- Rated current 529 A
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Right position
- Rated speed 2982 rpm
- Breakdown torque 240 %
- Enclosure IC411 - TEFC
- Synchronous speed 3600 rpm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
