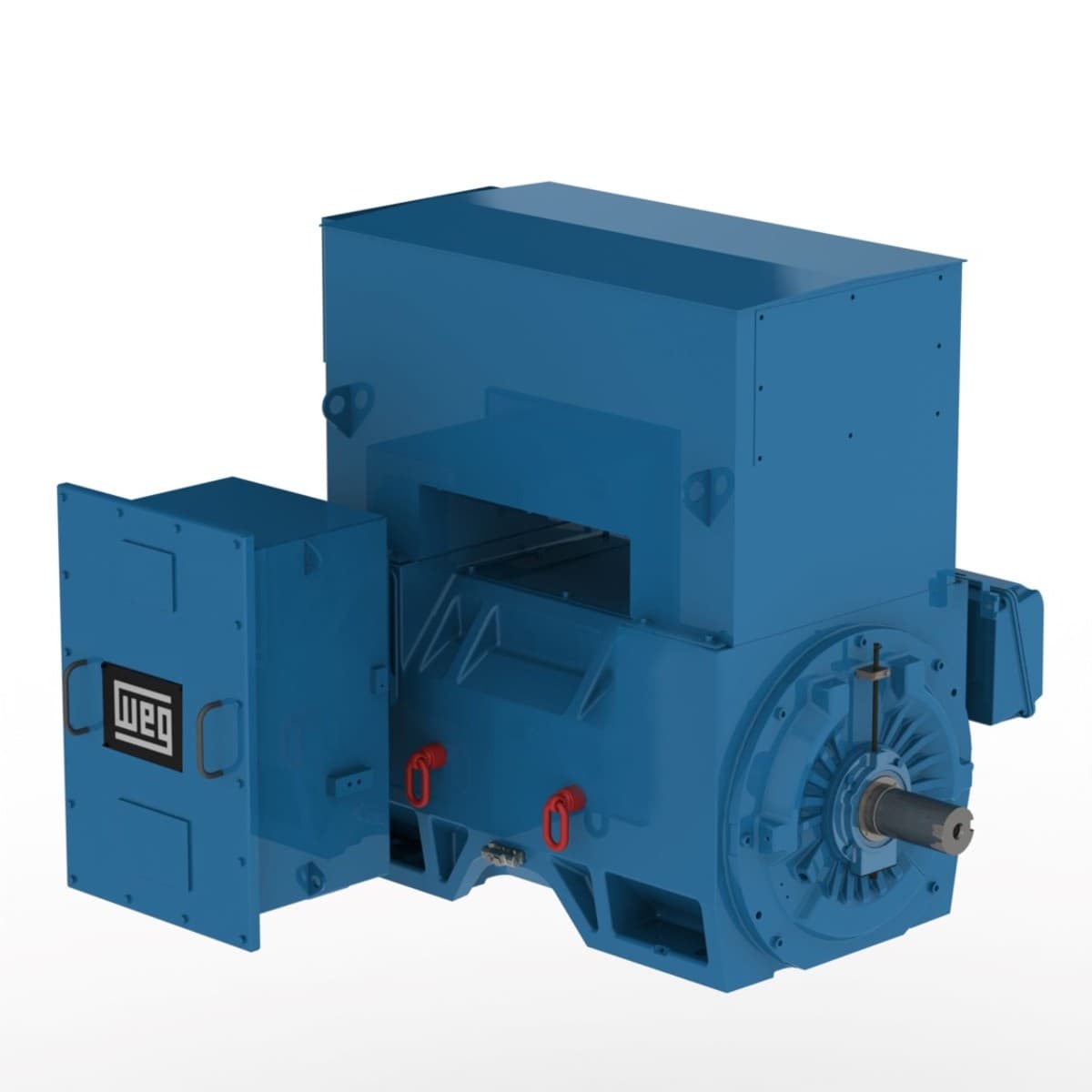

225036WT3X6810-W60MV2 WEG AC Motors
Product Details
- LRC 6.5x(Code G)
- Locked rotor torque 45 %
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- No load current 98.0/56.4 A
- Ambient temperature 0°C to +40°C
- Terminal box¹ Left position
- Slip 0.75 %
- Temperature rise 80 K
- Rotation¹ CCW
- Output 2000 HP (1500 kW)
- Breakdown torque 229 %
- Degree of Protection IP24
- Flange Without
- Rated voltage 2300/4000 V
- Moment of inertia (J) 252 sq.ft.lb
- Mounting F-1
- Standard NEMA MG-1
- Number of Poles 2
- Altitude 1000 m.a.s.l.
- Output rating 2250 HP
- Rated speed 3573 rpm
- Insulation Class F
- Voltage 2300/4000 V
- Rated current 447/257 A
- Locked rotor time 18s (cold) 10s (hot)
- Starting Method VFD
- Number of poles 2
- Frame 6810/11
- Service factor 1.15
- Noise level² 88.0 dB(A)
- L. R. Amperes 2906/1671 A
- Rated torque 2940 ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 10712 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
