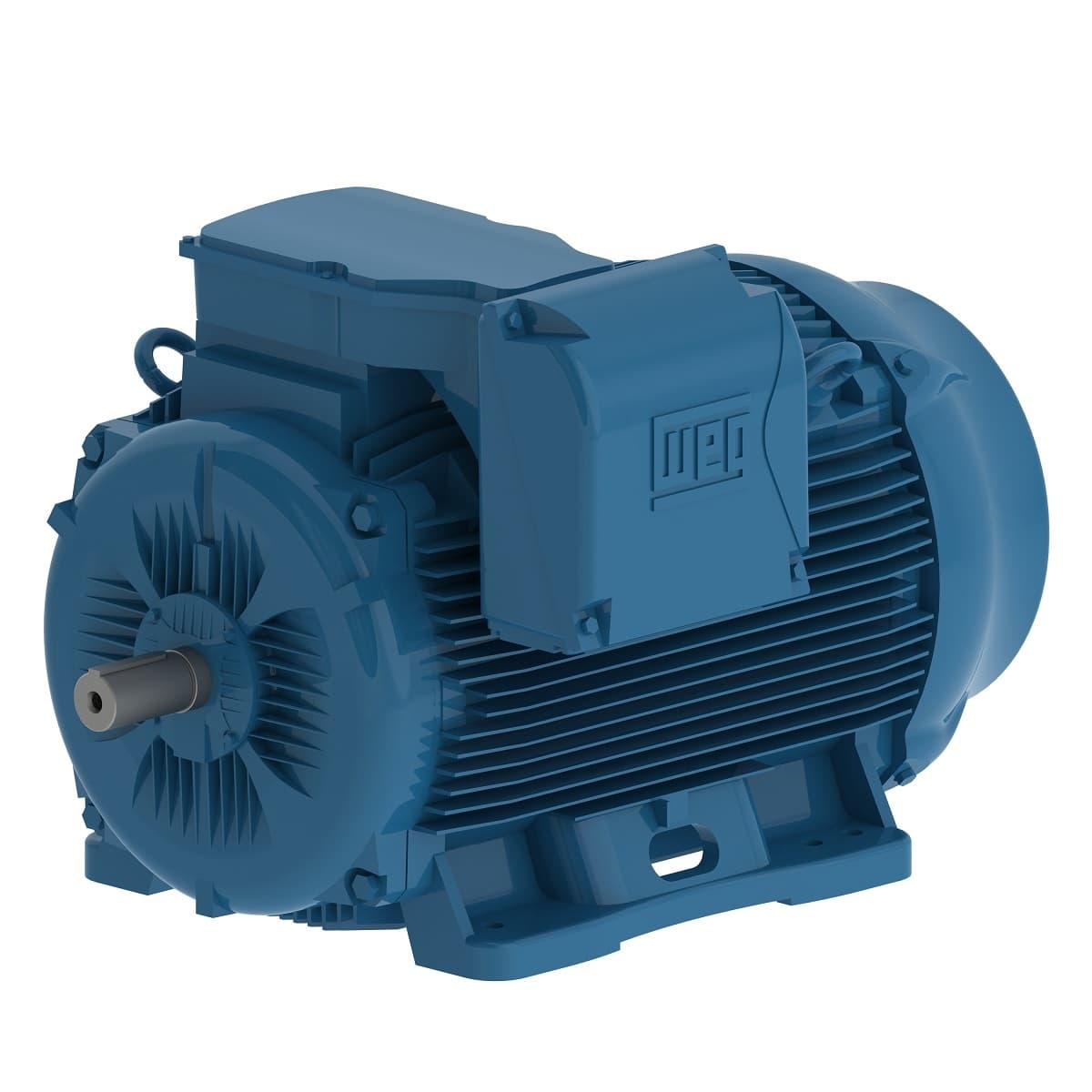

13212ET3Y315S/M-W22 WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 380 V
- Output Rating 175 HP
- Rated Speed 991 rpm
- Flange Type Without
- LRC 6.7
- Insulation Class F
- Approx. weight³ 2841 lb
- Rated current 255 A
- No load current 97.0 A
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Output 175 HP (132 kW)
- Moment of inertia (J) 121 sq.ft.lb
- Enclosure IC411 - TEFC
- Number of poles 6
- Frequency 50 Hz
- Locked rotor torque 220 %
- Degree of Protection IP55
- Terminal box¹ Right position
- Frame 315S/M
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Number of Poles 6
- Rated torque 927 ft.lb
- Duty Cycle S1
- Mounting B3L(E)
- L. R. Amperes 1709 A
- Locked rotor time 46s (cold) 26s (hot)
- Voltage 460//380-415 V
- Flange Without
- Rated speed 991 rpm
- Starting Method Direct On Line
- Output rating 175 HP
- Rated voltage 380 V
- Breakdown torque 250 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Slip 0.90 %
- Design N
- Noise level² 67.0 dB(A)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
