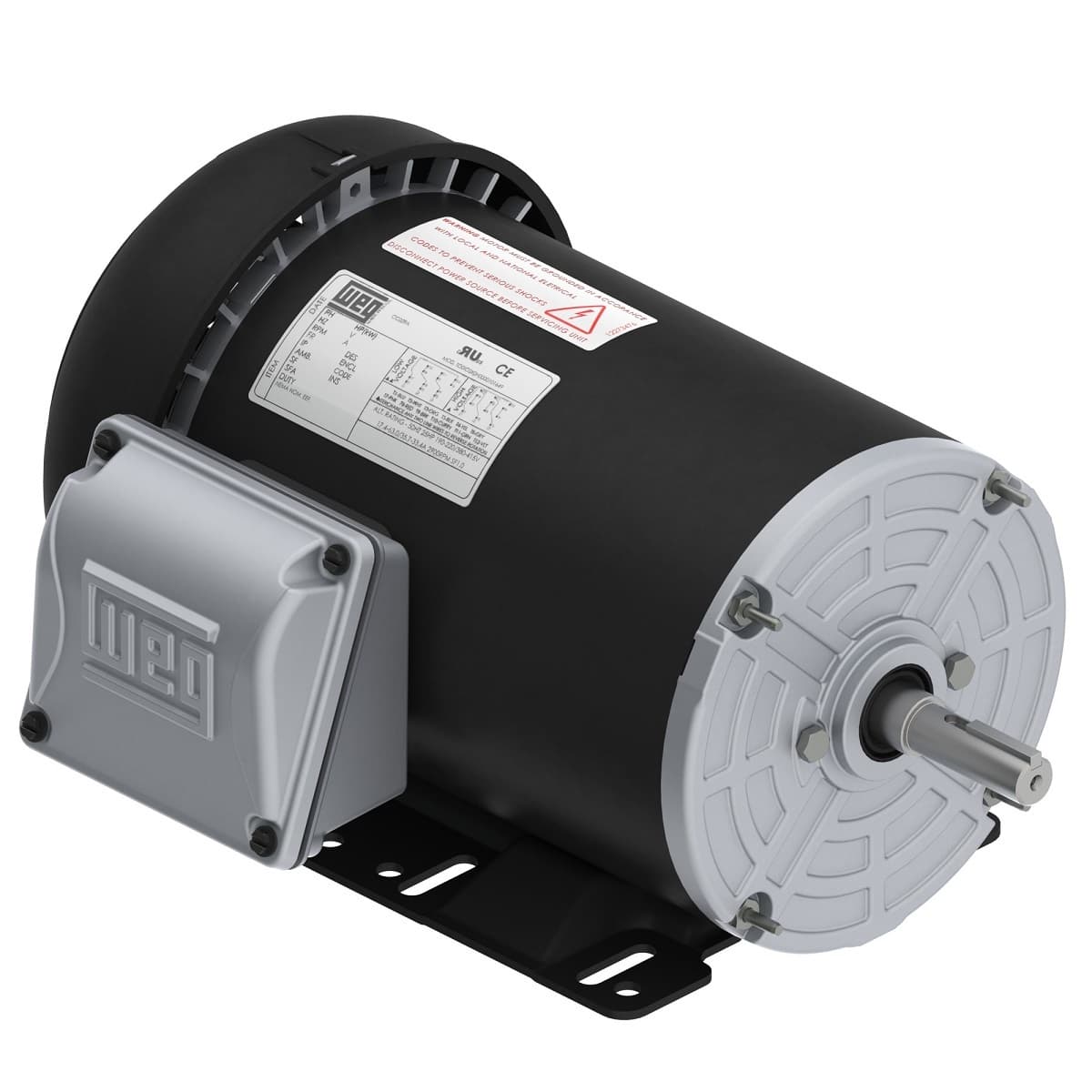

12676245 WEG AC Motors

Product Details

• Locked rotor time
  19s (cold) 11s (hot)
• Duty Cycle
  Cont.(S1)
• Approx. weight³
  32.1 lb
• L. R. Amperes
  40.3/20.2 A
• Insulation Class
  F
• Altitude
  1000 m.a.s.l.
• Synchronous speed
  3600 rpm
• Slip
  3.47 %
• Design
  A
• Degree of Protection
  IP55
• Voltage
  230/460//190-220/380-415 V
• Number of Poles
  2
• Temperature rise
  80 K
• Enclosure
  IC411 - TEFC
• Rated voltage
  230/460 V
• Breakdown torque
  290 %
• Ambient temperature
  -20°C to +40°C
• Terminal box¹
  Left position
• Rated speed
  3475 rpm
• Rated torque
  3.02 ft.lb
Noise level²
68.0 dB(A)
Number of poles
2
Frame
56H
Moment of inertia (J)
0.0963 sq.ft.lb
Mounting
F-1
Rated current
5.24/2.62 A
Locked rotor torque
229 %
Service factor
1.15 (1.00 @ 208V)
Flange
Without
Output
2 HP (1.5 kW)
No load current
2.07/1.04 A
Rotation¹
Both (CW and CCW)
Output rating
2 HP
Frequency
60 Hz
LRC
7.7x(Code K)
Starting Method
Direct On Line
Standard
NEMA MG-1
