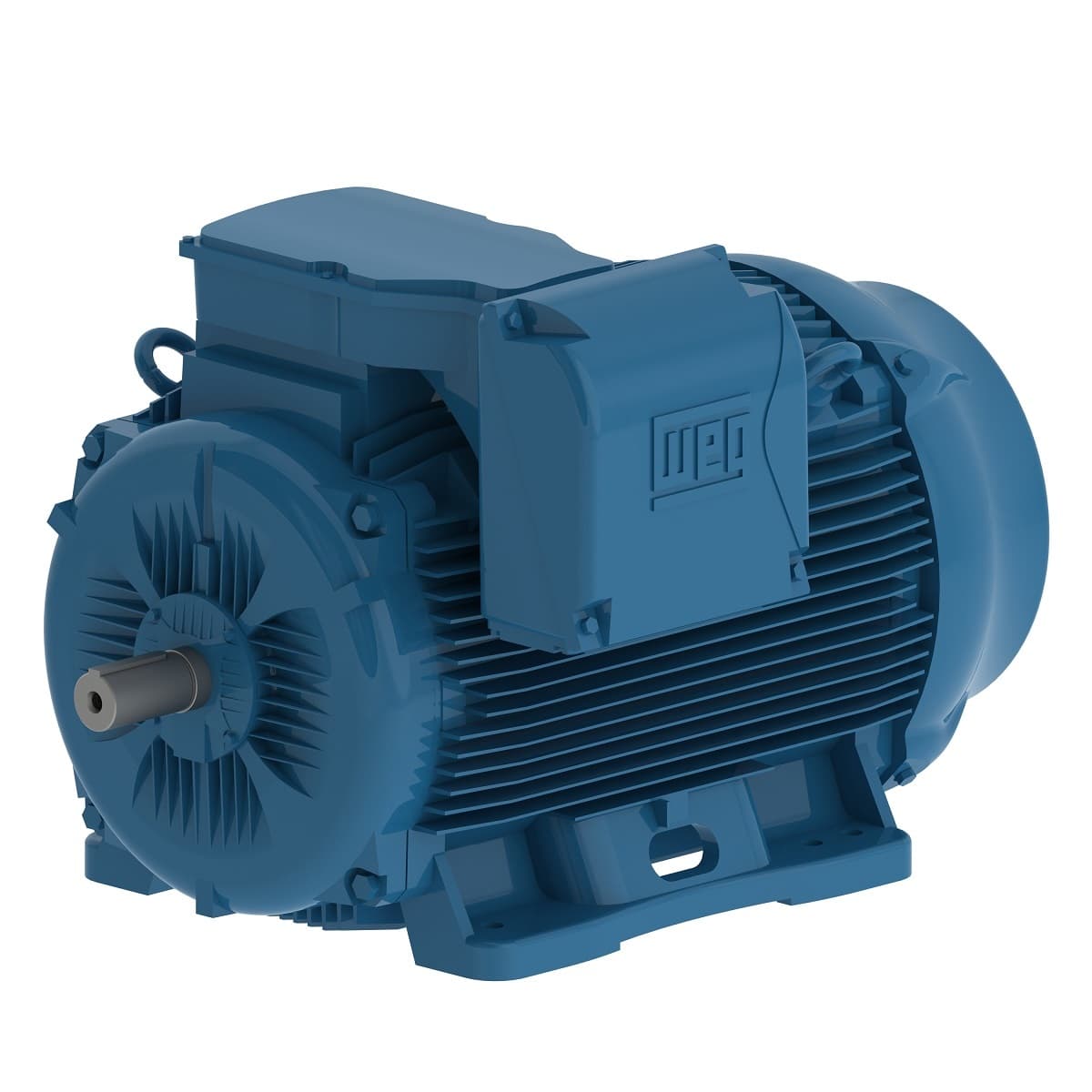

12654100 WEG AC Motors

Product Details

• Rated current
  7.10/3.55 A
• Locked rotor torque
  270 %
• Temperature rise
  80 K
• Rotation¹
  Both (CW and CCW)
• Rated voltage
  230/460 V
• Moment of inertia (J)
  0.1407 sq.ft.lb
• Mounting
  F-1
• Terminal box¹
  Left position
• LRC
  8.4x(Code J)
• Starting Method
  Direct On Line
• Synchronous speed
  3600 rpm
• Frame
  143/5JM
• No load current
  2.60/1.30 A
• Enclosure
  IC411 - TEFC
• Voltage
  230/460//190-220/380-415 V
• Rated speed
  3480 rpm
• Breakdown torque
  330 %
• Duty Cycle
  Cont.(S1)
• Ambient temperature
  -20°C to +40°C
• Slip
  3.33 %
Locked rotor time
16s (cold) 9s (hot)
Standard
NEMA MG-1
Flange
C
Frequency
60 Hz
Insulation Class
F
Degree of Protection
IP55
Number of poles
2
Output
3 HP (2.2 kW)
Service factor
1.15 (1.00 @ 208V)
Approx. weight³
45.6 lb
Number of Poles
2
Rated torque
4.53 ft.lb
Noise level²
68.0 dB(A)
L. R. Amperes
59.6/29.8 A
Design
A
Altitude
1000 m.a.s.l.
Output rating
3 HP
