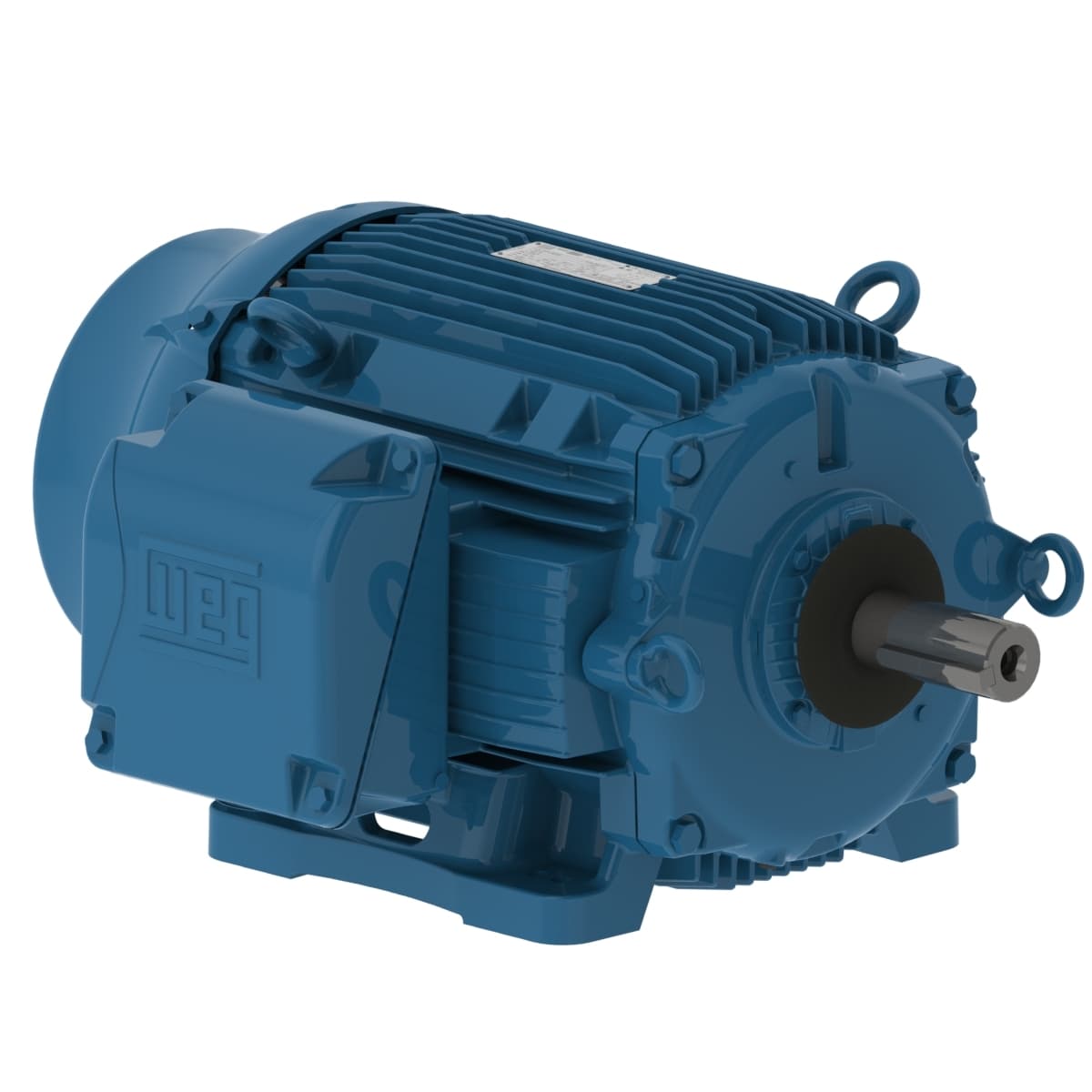

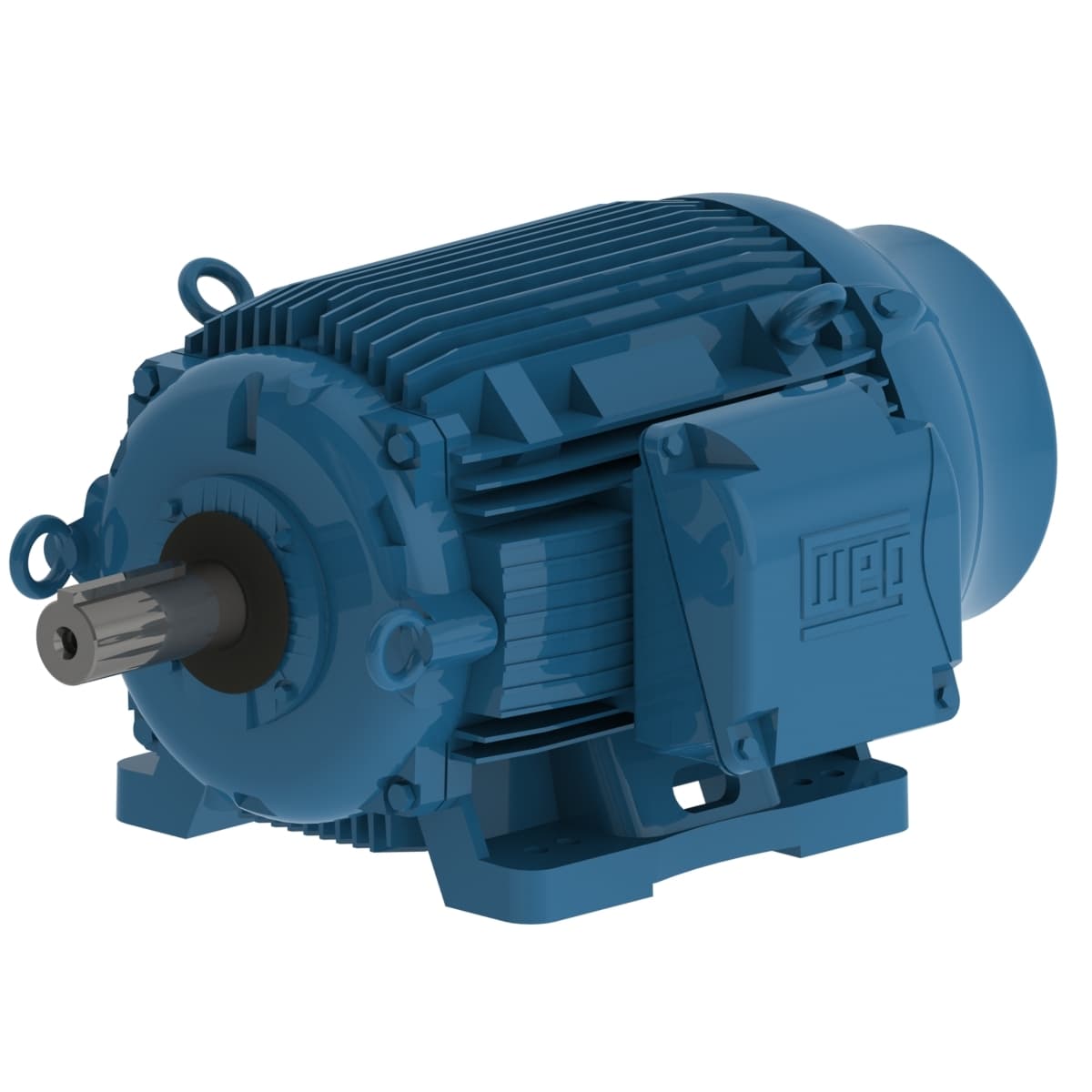

07589EP3PCT404V-W22 WEG AC Motors

Product Details

• Number of Poles
  45508 Pole
• Voltage
  200 V
• Output Rating
  18.5/75 HP
• Rated Speed
  1780 rpm
• Flange Type
  Without
• Frame
  404/5T
• Mounting
  F-2
• Locked rotor time
  14s (cold) 8s (hot)
• Flange
  Without
• Rated speed
  1780 rpm
• LRC
  8.0x(Code J)
• Starting Method
  Direct On Line
• Approx. weight³
  0.0 lb
• Slip
  1.11 %
• Insulation Class
  F
• Voltage
  200 V
• Rated current
  196 A
• No load current
  73.6 A
• Ambient temperature
  -20°C to +40°C
• Synchronous speed
  900/1800 rpm
Temperature rise
80 K
Rated torque
221 ft.lb
Standard
NEMA MG-1
Locked rotor torque
240 %
Duty Cycle
Cont.(S1)
Noise level²
71.0 dB(A)
Number of Poles
8/4
L. R. Amperes
1570 A
Altitude
1000 m.a.s.l.
Number of poles
8/4
Rated voltage
200 V
Moment of inertia (J)
27.4 sq.ft.lb
Rotation¹
Both (CW and CCW)
Output
75 HP (55 kW)
Breakdown torque
280 %
Enclosure
IC411 - TEFC
Output rating
18.5/75 HP
Frequency
60 Hz
Service factor
1.15
Degree of Protection
IP55
Terminal box¹
Right position
