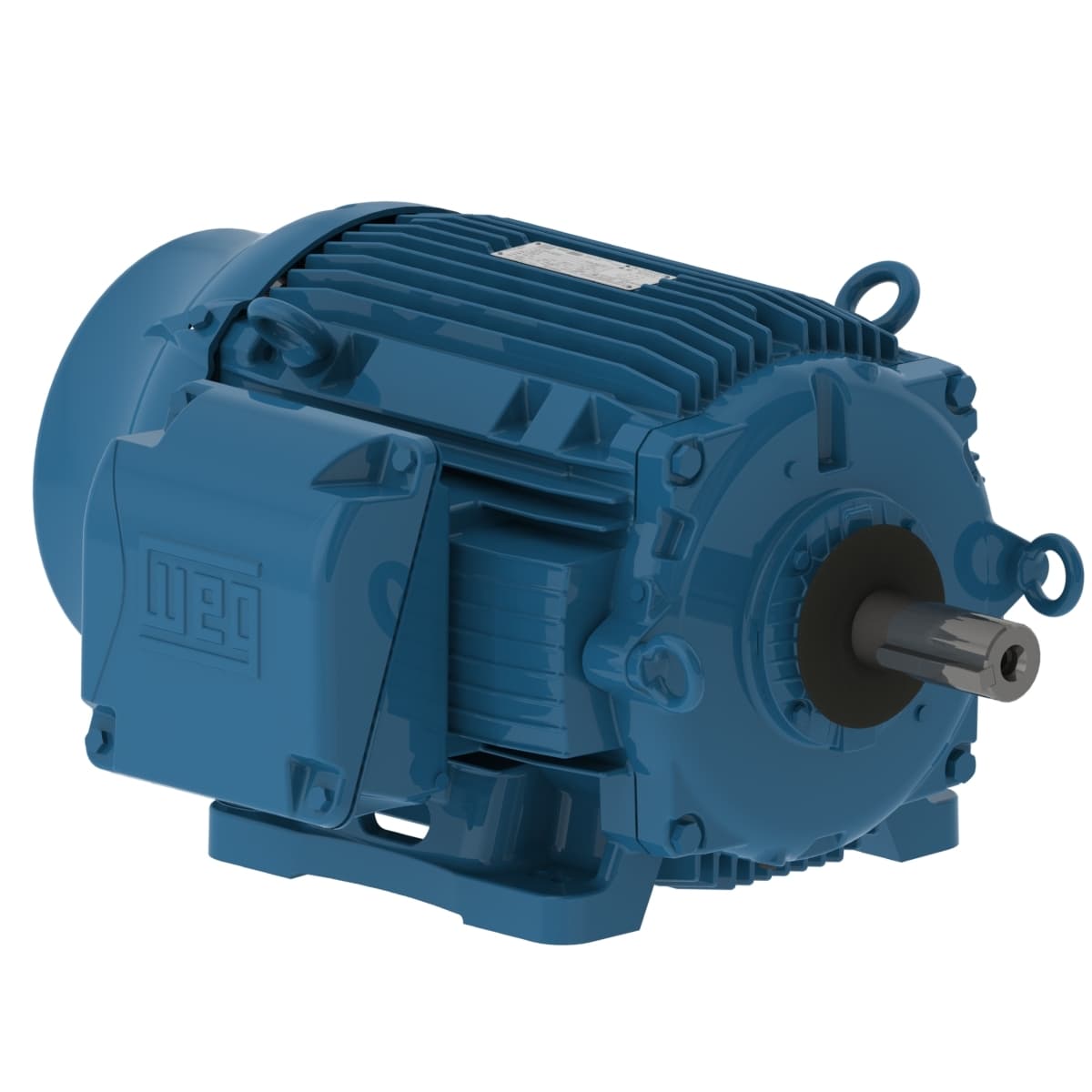

05089EP3PCT364VF1-W2 WEG AC Motors

Product Details

• Number of Poles
  45508 Pole
• Voltage
  200 V
• Output Rating
  12.5/50 HP
• Rated Speed
  1780 rpm
• Flange Type
  Without
• LRC
  8.8x(Code K)
• Service factor
  1.15
• Synchronous speed
  900/1800 rpm
• L. R. Amperes
  1210 A
• Output
  50 HP (37 kW)
• Altitude
  1000 m.a.s.l.
• Output rating
  12.5/50 HP
• Frequency
  60 Hz
• Moment of inertia (J)
  19.9 sq.ft.lb
• Enclosure
  IC411 - TEFC
• Slip
  1.11 %
• Temperature rise
  80 K
• Voltage
  200 V
• Number of Poles
  8/4
• Locked rotor time
  14s (cold) 8s (hot)
Starting Method
Direct On Line
Rotation¹
Both (CW and CCW)
Frame
364/5T
Insulation Class
F
Noise level²
71.0 dB(A)
Flange
Without
No load current
70.6 A
Duty Cycle
Cont.(S1)
Mounting
F-1
Terminal box¹
Left position
Rated voltage
200 V
Locked rotor torque
310 %
Degree of Protection
IP55
Rated current
138 A
Breakdown torque
350 %
Approx. weight³
850 lb
Rated speed
1780 rpm
Rated torque
148 ft.lb
Ambient temperature
-20°C to +40°C
Number of poles
8/4
Standard
NEMA MG-1
