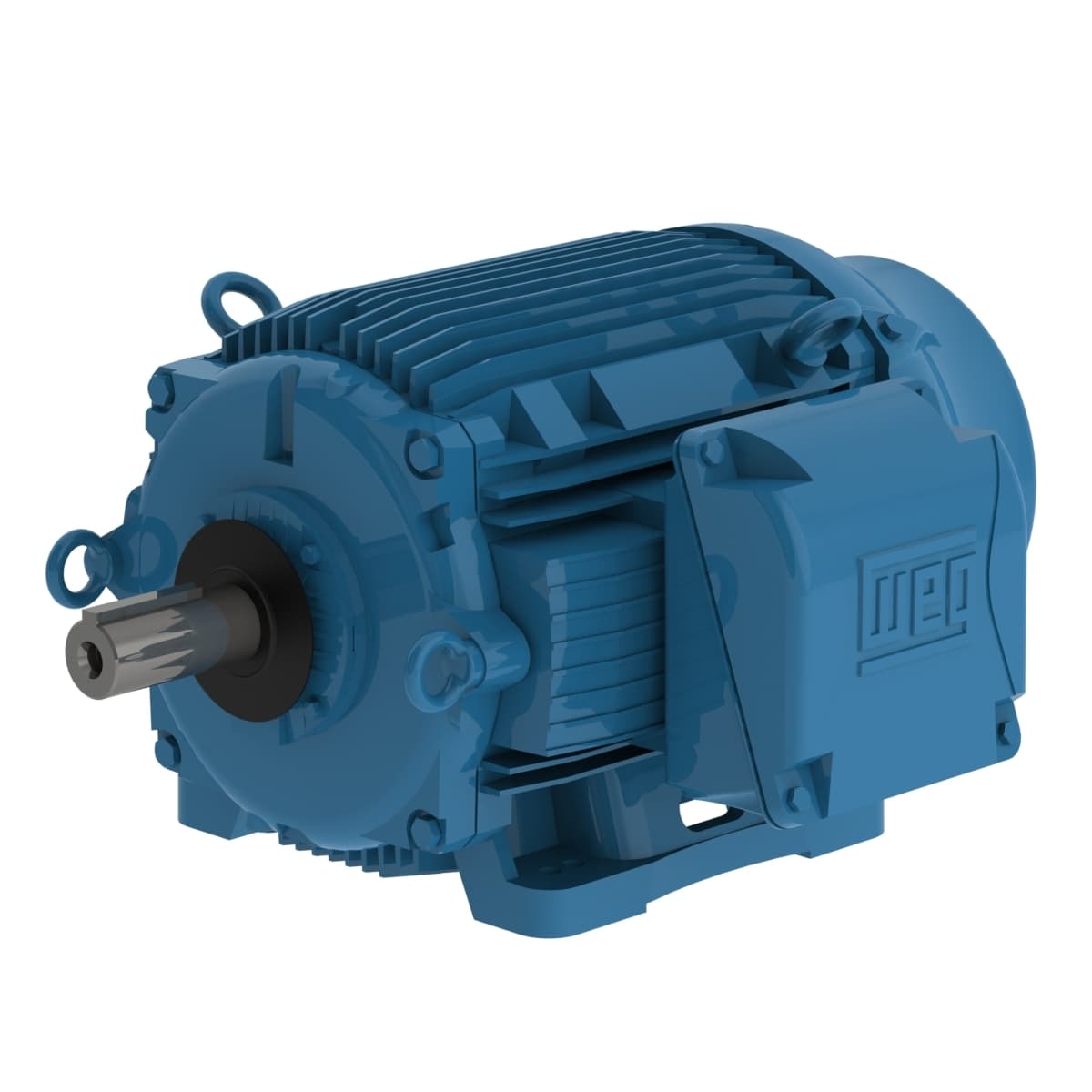

04026EP3QCT365VF1-W2 WEG AC Motors

Product Details

• Number of Poles
  45632 Pole
• Voltage
  460 V
• Output Rating
  14885 HP
• Rated Speed
  590 rpm
• Flange Type
  Without
• Number of Poles
  12/6
• Temperature rise
  80 K
• Mounting
  F-1
• Flange
  Without
• Rated voltage
  460 V
• Rated torque
  89.0 ft.lb
• Voltage
  460 V
• Ambient temperature
  -20°C to +40°C
• Rated speed
  590 rpm
• Locked rotor torque
  130 %
• Approx. weight³
  857 lb
• Frame
  364/5T
• LRC
  3.7x(Code F)
• Altitude
  1000 m.a.s.l.
• Synchronous speed
  600/1200 rpm
Slip
1.67 %
Duty Cycle
Cont.(S1)
Standard
NEMA MG-1
Rated current
17.7 A
Service factor
1.25
Noise level²
60.0 dB(A)
Output rating
10/40 HP
Output
10 HP (7.5 kW)
Moment of inertia (J)
29.0 sq.ft.lb
Degree of Protection
IP55
L. R. Amperes
65.5 A
Insulation Class
F
Rotation¹
Both (CW and CCW)
Terminal box¹
Left position
Frequency
60 Hz
Locked rotor time
162s (cold) 90s (hot)
Breakdown torque
180 %
Number of poles
12/6
No load current
12.7 A
Enclosure
IC411 - TEFC
Starting Method
Direct On Line
