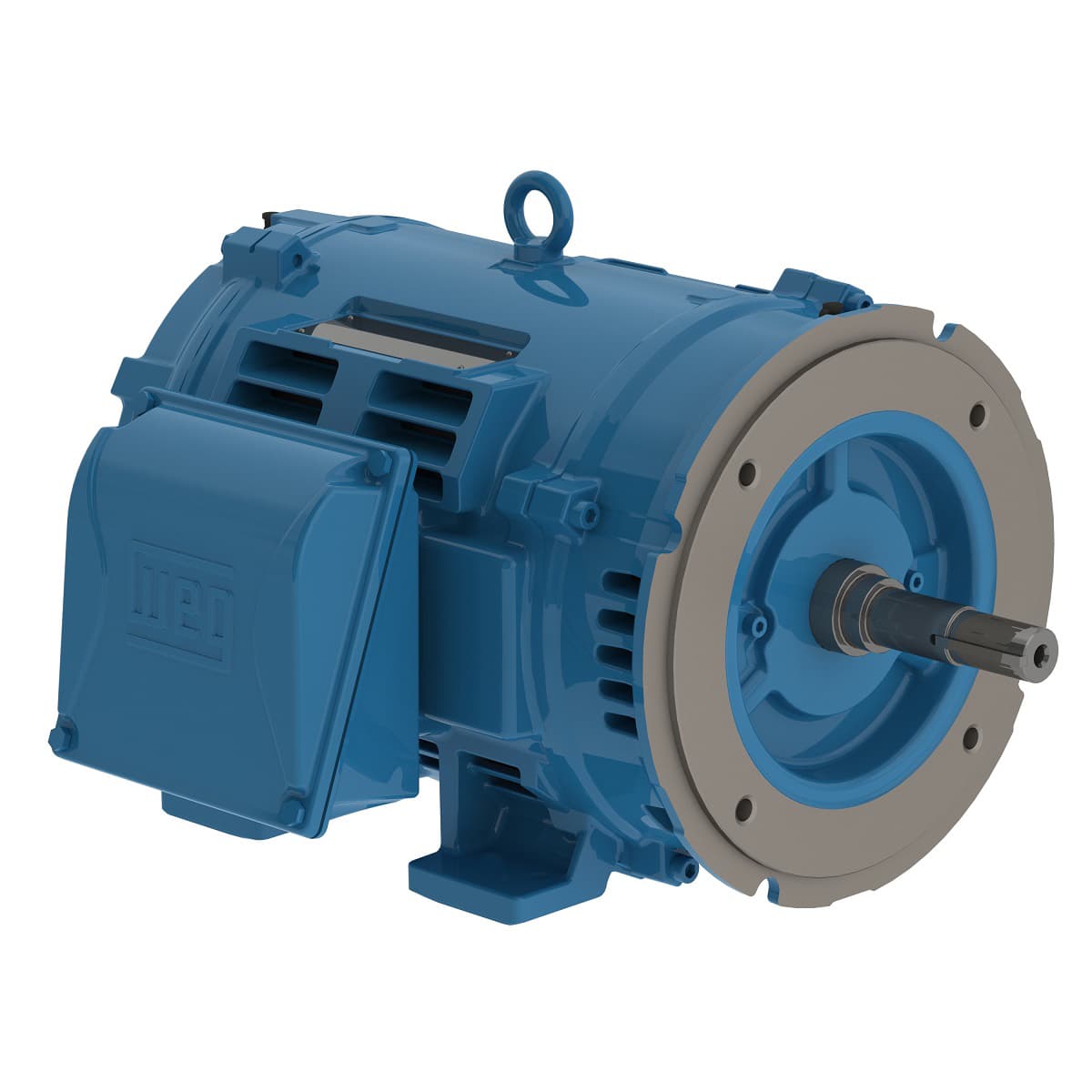

03036OT3E284JM-W40 WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  230/460 V
• Output Rating
  30 HP
• Rated Speed
  3545 rpm
• Flange Type
  C
• Rated speed
  3545 rpm
• LRC
  6.3x(Code G)
• Enclosure
  IC01 - ODP
• Flange
  C
• Rated current
  70.0/35.0 A
• Locked rotor torque
  180 %
• Starting Method
  Direct On Line
• Voltage
  230/460//380 V
• L. R. Amperes
  441/221 A
• Rated torque
  44.4 ft.lb
• Duty Cycle
  Cont.(S1)
• Number of poles
  2
• No load current
  25.0/12.5 A
• Degree of Protection
  IP23
• Output rating
  30 HP
Slip
1.53 %
Moment of inertia (J)
1.59 sq.ft.lb
Temperature rise
80 K
Standard
NEMA MG-1
Frequency
60 Hz
Insulation Class
F
Noise level²
73.0 dB(A)
Rated voltage
230/460 V
Breakdown torque
260 %
Altitude
1000 m.a.s.l.
Synchronous speed
3600 rpm
Frame
284JM
Service factor
1.25
Rotation¹
Both (CW and CCW)
Output
30 HP (22 kW)
Design
B
Mounting
F-1
Terminal box¹
Left position
Number of Poles
2
Locked rotor time
18s (cold) 10s (hot)
Ambient temperature
-20°C to +40°C
Approx. weight³
323 lb
