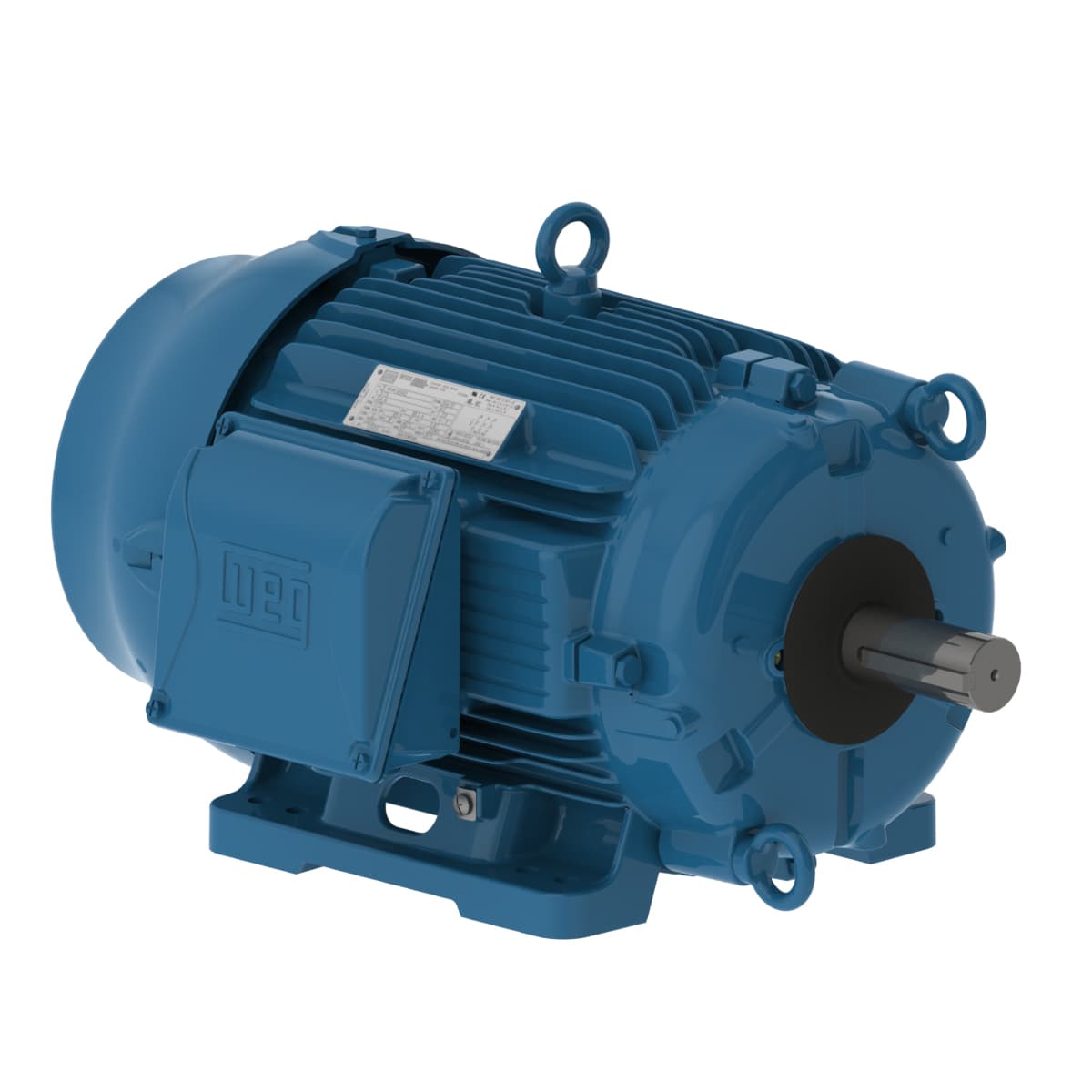

02018ET3HCT256TF1-W2 WEG AC Motors

Product Details

• Number of Poles
  4 Pole
• Voltage
  575 V
• Output Rating
  20 HP
• Rated Speed
  1770 rpm
• Flange Type
  Without
• LRC
  6.9x(Code H)
• Temperature rise
  80 K
• Voltage
  575 V
• Output
  20 HP (15 kW)
• Locked rotor torque
  240 %
• Degree of Protection
  IP55
• Terminal box¹
  Left position
• Frame
  254/6T
• Insulation Class
  F
• Approx. weight³
  335 lb
• Frequency
  60 Hz
• Rated torque
  59.3 ft.lb
• Ambient temperature
  -20°C to +40°C
• Number of poles
  4
• Breakdown torque
  260 %
Starting Method
Direct On Line
Mounting
F-1
Rated current
19.3 A
Number of Poles
4
Service factor
1.25
Standard
NEMA MG-1
Rated speed
1770 rpm
Design
B
Rotation¹
Both (CW and CCW)
Flange
Without
Locked rotor time
54s (cold) 30s (hot)
Altitude
1000 m.a.s.l.
L. R. Amperes
133 A
Synchronous speed
1800 rpm
Slip
1.67 %
Moment of inertia (J)
3.10 sq.ft.lb
Duty Cycle
Cont.(S1)
Output rating
20 HP
Rated voltage
575 V
No load current
7.68 A
Enclosure
IC411 - TEFC
Noise level²
64.0 dB(A)
