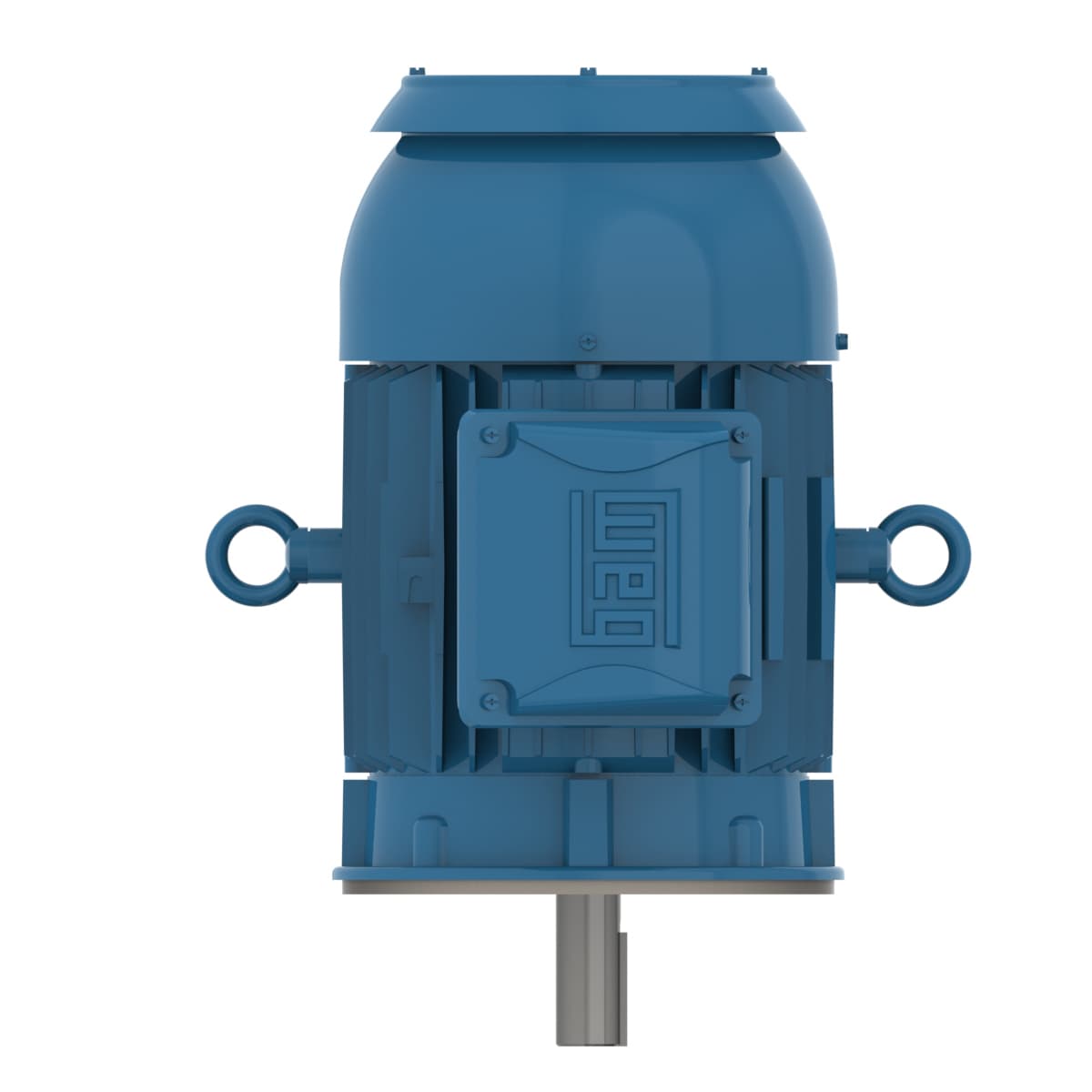

00518ST3QIER184TC-W2 WEG AC Motors

Product Details

• Number of Poles
  4 Pole
• Voltage
  460 V
• Output Rating
  5 HP
• Rated Speed
  1750 rpm
• Flange Type
  C
• Output
  5 HP (3.7 kW)
• Service factor
  1.25
• Enclosure
  IC411 - TEFC
• Number of Poles
  4
• No load current
  2.90 A
• Degree of Protection
  IP56
• Flange
  C
• Moment of inertia (J)
  0.4003 sq.ft.lb
• Temperature rise
  80 K
• Noise level²
  56.0 dB(A)
• Frame
  184TC
• Insulation Class
  F
• Voltage
  460 V
• Synchronous speed
  1800 rpm
• Slip
  2.78 %
LRC
7.7x(Code J)
Altitude
1000 m.a.s.l.
Standard
NEMA MG-1
L. R. Amperes
50.0 A
Locked rotor torque
229 %
Rotation¹
Both (CW and CCW)
Terminal box¹
Left position
Rated voltage
460 V
Locked rotor time
21s (cold) 12s (hot)
Duty Cycle
Cont.(S1)
Number of poles
4
Rated speed
1750 rpm
Breakdown torque
290 %
Starting Method
Direct On Line
Rated current
6.49 A
Design
B
Mounting
W-6
Output rating
5 HP
Frequency
60 Hz
Rated torque
15.0 ft.lb
Ambient temperature
-20°C to +40°C
Approx. weight³
113 lb
