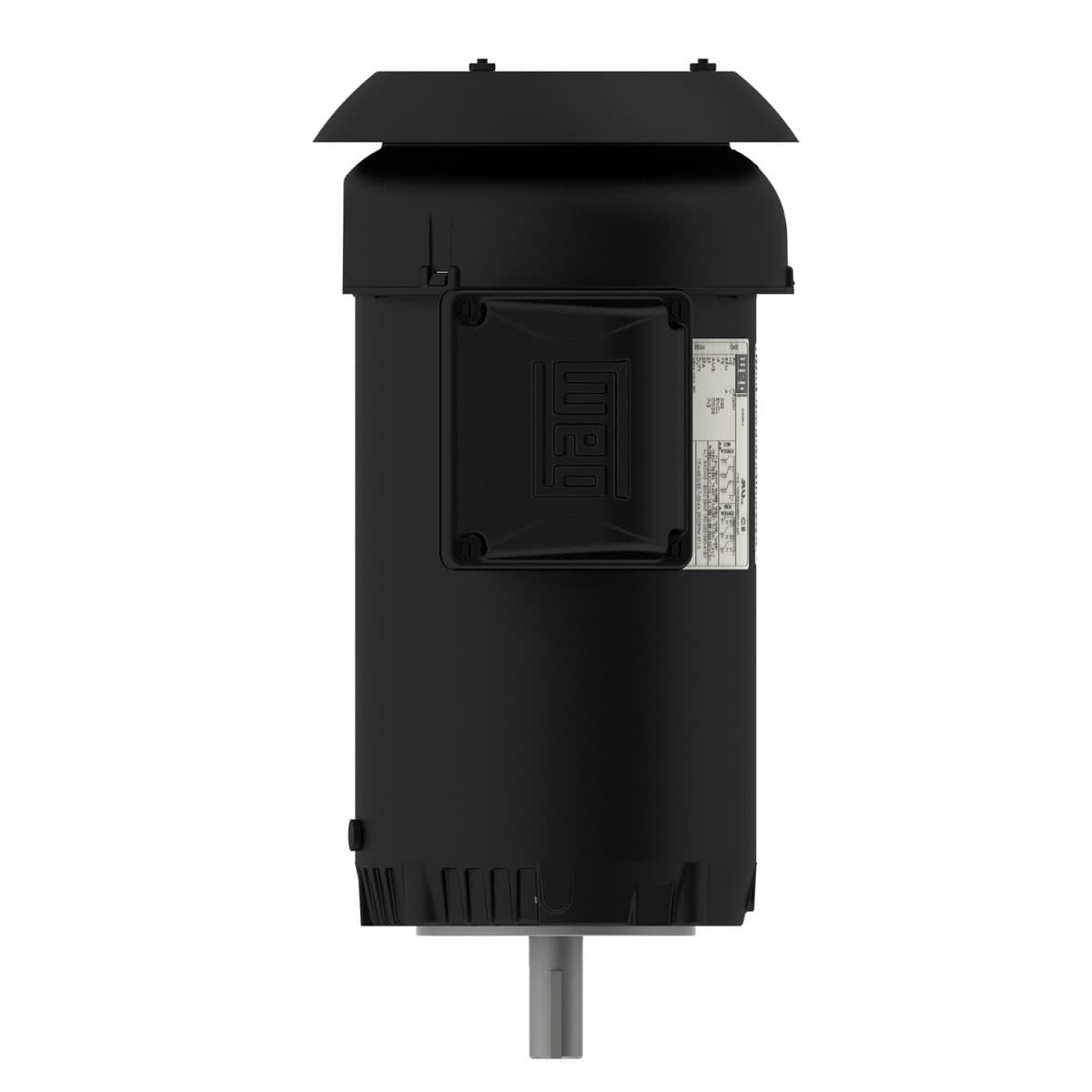

00112EP3ER145TC-S WEG AC Motors

Product Details

• Number of Poles
  6 Pole
• Voltage
  230/460 V
• Output Rating
  1 HP
• Rated Speed
  1145 rpm
• Flange Type
  C
• Frame
  143/5TC
• Starting Method
  Direct On Line
• Synchronous speed
  1200 rpm
• Number of Poles
  6
• L. R. Amperes
  20.9/10.5 A
• Moment of inertia (J)
  0.1037 sq.ft.lb
• Mounting
  W-6
• Voltage
  230/460//190-220/380-415 V
• Output rating
  1 HP
• Output
  1 HP (0.75 kW)
• Insulation Class
  F
• Approx. weight³
  37.1 lb
• No load current
  2.15/1.08 A
• Degree of Protection
  IP55
• Frequency
  60 Hz
Service factor
1.15 (1.00 @ 208V)
Noise level²
50.0 dB(A)
Rated speed
1145 rpm
Rated torque
4.59 ft.lb
Altitude
1000 m.a.s.l.
Rotation¹
Both (CW and CCW)
Terminal box¹
Left position
Breakdown torque
320 %
Enclosure
IC411 - TEFC
Slip
4.58 %
LRC
6.3x(Code K)
Locked rotor time
55s (cold) 31s (hot)
Standard
NEMA MG-1
Rated current
3.32/1.66 A
Temperature rise
80 K
Duty Cycle
Cont.(S1)
Ambient temperature
-20°C to +40°C
Rated voltage
230/460 V
Locked rotor torque
270 %
Design
B
Number of poles
6
Flange
C
