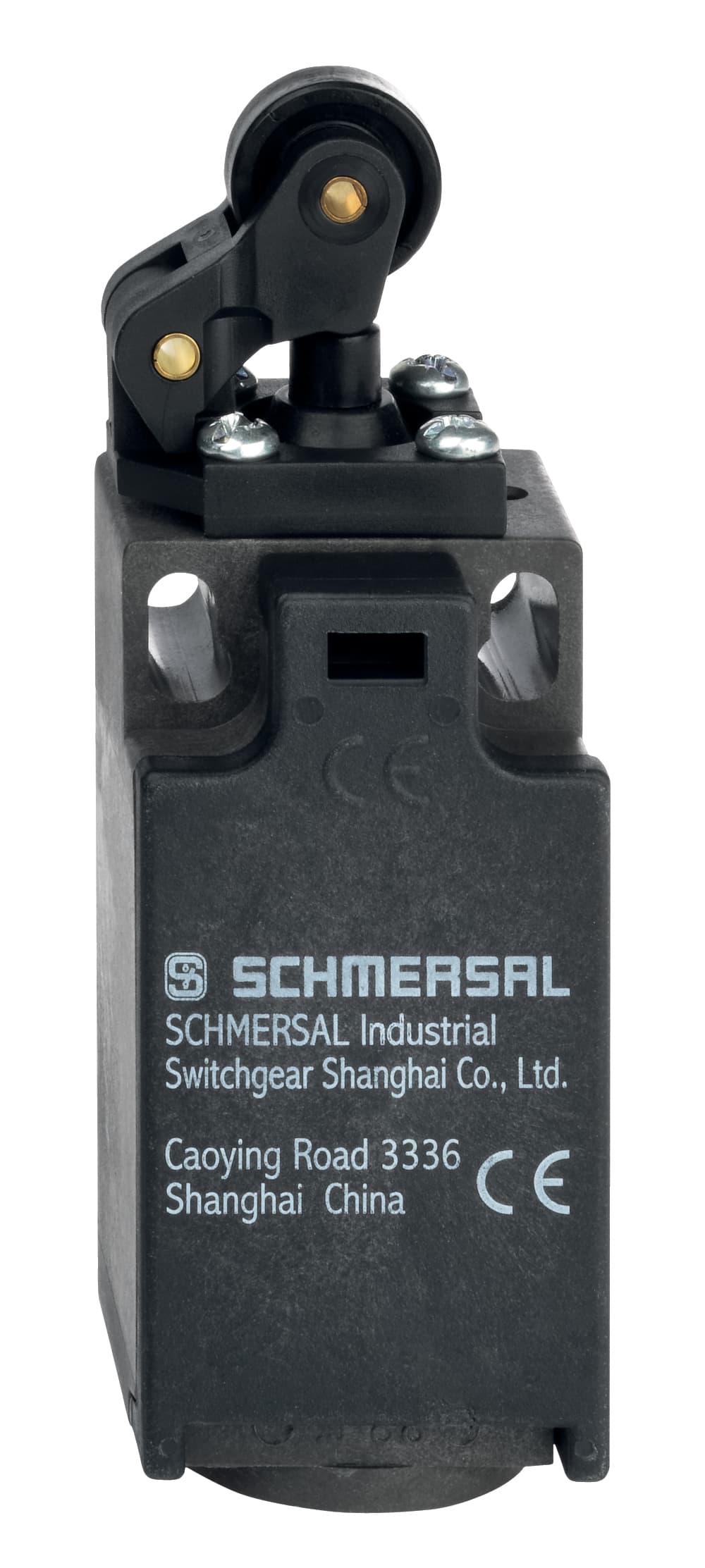

Z1R 236-11Z-M20 Schmersal Electronic Components

Product Details

• Actuating element
  Offset roller lever
• Number of auxiliary contacts
  1
• Cable section, maximum
  2.5 mm²
• Rated impulse withstand voltage Uimp
  6 kV
• Gross weight
  55 g
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Actuating speed, minimum
  27 mm/min
• Cable section, minimum
  0.75 mm²
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Housing construction form
  Norm construction design
• Material of the contacts, electrical
  Silver
• Actuating force, minimum
  9 N
• Number of safety contacts
  1
• Mechanical life, minimum
  20,000,000 Operations
• Standards
  IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
• Safety functions
  Yes
• Positive break force, minimum
  19 N
• Terminal Connector
  Screw connection
• Thermal test current
  10 A
• Utilisation category DC-13
  1 A
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Actuating speed, maximum
1 m/s
Note (Actuating speed)
Actuating speed with actuating angle 30° to switch axis
Length of sensor
30 mm
Required rated short-circuit current to EN 60947-5-1
1,000 A
Width of sensor
30 mm
Note (Switchover time)
Switchover time in accordance with actuating speed
Utilisation category AC-15
240 VAC
Note Bounce duration
Bounce duration in accordance with actuating speed
Ambient temperature, minimum
-30 °C
Height of sensor
89.5 mm
Rated insulation voltage Ui
250 V
Switching principle
Snap switch element
Ambient temperature, maximum
+80 °C
Switching element
NO contact, NC contact
Switching frequency
5,000 /h
