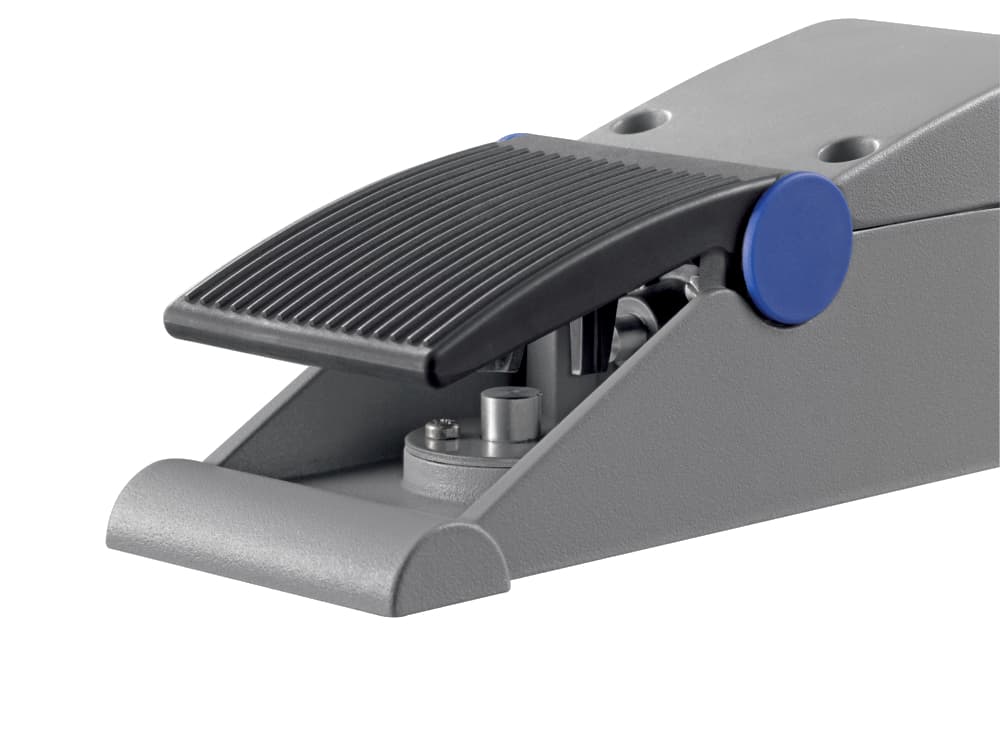

TF 232-02 Schmersal Electronic Components

Product Details

• Standards
  BG-GS-ET-15, DIN VDE 0660-200, EN 60947-5-1
• Terminal Connector
  Screw connection
• Depth
  274 mm
• Rated insulation voltage Ui
  500 V
• Switching element
  Opener (NC)
• Probing possible
  Yes
• Width
  170 mm
• Thermal test current
  10 A
• Colour of the housing
  RAL 9006 (White aluminum)
• Cable section, maximum
  1 x 2.5 mm²
• Ambient temperature, minimum
  -25 °C
• Gross weight
  1,165.4 g
• Material of the protective shield
  Aluminium
• Height
  189 mm
• Enclosure material
  Aluminium
• Mechanical life, minimum
  1,000,000 Operations
• Utilisation category AC-15
  4 A
• Enclosure coating material
  powder-coated
• Degree of protection
  IP65 to EN 60529
• Material of the cover
  Aluminium
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Rated impulse withstand voltage Uimp
6 kV
Number of openers
2
Utilisation category DC-13
1 A
Ambient temperature, maximum
+70 °C
Material of the pedal
Glass-fibre, reinforced thermoplastic
Switching principle
Slow action
