T5C 236-02Z-M20 Schmersal Electronic Components

T5C 236-02Z-M20 on Applied Automation
Schmersal

Part#:T5C 236-02Z-M20

Alt. Part#:101164467

Manufacturer:Schmersal

Category:Electronic Components

Product Lifecycle:Active

Product description

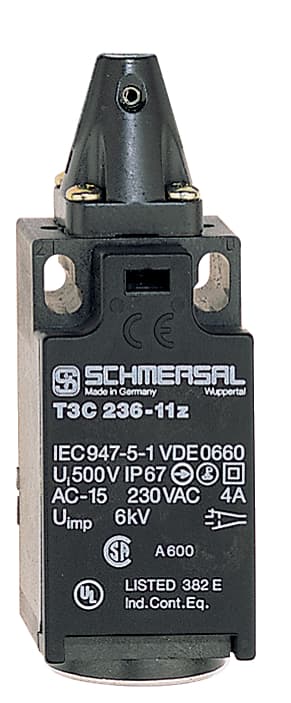

Safety switch for hinged guards; Flap safety switches; 1 Cable entry M 20 x 1.5; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; 30 mm x 88,5 mm x 30 mm; Actuator heads can be repositioned by 4 x 90°

Product Details

  • Switching frequency
    5,000 /h
  • Switching principle
    Creep circuit element
  • Switching element
    Opener (NC)
  • Thermal test current
    10 A
  • Utilisation category DC-13
    1 A
  • Utilisation category AC-15
    4 A
  • Rated impulse withstand voltage Uimp
    6 kV
  • Ambient temperature, minimum
    -30 °C
  • Ambient temperature, maximum
    +80 °C
  • Rated insulation voltage Ui
    500 V
  • Degree of protection
    IP67
  • Height of the actuator
    78 mm
  • Height of sensor
    94.5 mm
  • Width of sensor
    93 mm
  • Cable section, maximum
    1 x 2.5 mm²
  • Length of sensor
    30 mm
  • Cable section, minimum
    1 x 0.75 mm²
  • Note (Cable section)
    All indications about the cable section are including the conductor ferrules.
  • Opening angle
    180°
  • Number of safety contacts
    2
  • Terminal Connector
    Screw connection
  • Enclosure material
    Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Actuating element
    Swivel lever
  • Material of the actuator
    Stainless steel
  • Positive break angle
    12.5 °
  • Mechanical life, minimum
    1,000,000 Operations
  • Material of the contacts, electrical
    Silver
  • Positive break torque
    0.2 Nm
  • Gross weight
    90 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T5C 236-02Z-M20 on Applied Automation is $136.00. Order now.
