T5C 235-02Z-M20 Schmersal Electronic Components
Part#:T5C 235-02Z-M20
Alt. Part#:101157475
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

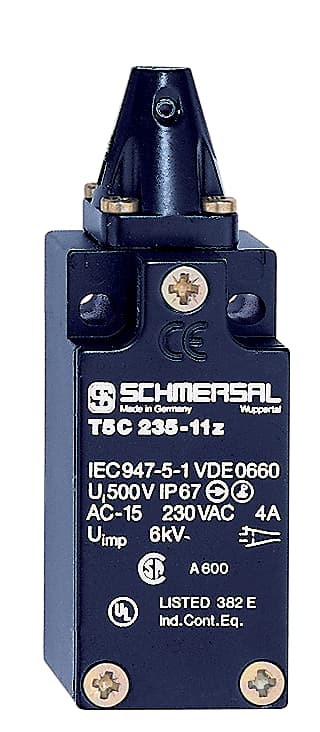

Safety switch for hinged guards; Flap safety switches; 1 Cable entry M 20 x 1.5; Metal enclosure; Good resistance to oil and petroleum spirit; 30 mm x 88,5 mm x 30 mm; Actuator heads can be repositioned by 4 x 90°
Product Details
- Utilisation category DC-13 1 A
- Number of safety contacts 2
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Rated insulation voltage Ui 500 V
- Switching principle Creep circuit element
- Enclosure material Zinc die-cast
- Positive break angle 12.5 °
- Cable section, minimum 0.75 mm²
- Utilisation category AC-15 4 A
- Material of the contacts, electrical Silver
- Opening angle 180°
- Height of sensor 161 mm
- Enclosure coating material painted
- Width of sensor 30 mm
- Ambient temperature, maximum +80 °C
- Switching frequency 5,000 /h
- Material of the actuator Stainless steel
- Length of sensor 30 mm
- Thermal test current 10 A
- Mechanical life, minimum 1,000,000 Operations
- Cable section, maximum 2.5 mm²
- Degree of protection IP67
- Rated impulse withstand voltage Uimp 6 kV
- Gross weight 195 g
- Positive break torque 0.2 Nm
- Height of the actuator 78 mm
- Switching element Opener (NC)
- Actuating element Swivel lever
- Terminal Connector Screw connection
- Ambient temperature, minimum -30 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T5C 235-02Z-M20 on Applied Automation is $171.00. Order now.
T5C 235-02Z-M20 Related Documents
Manufacturer warranty
T5C 235-02Z-M20 Schmersal
$171.00
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$171.00
$171.00 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of T5C 235-02Z-M20?
Purchase the T5C 235-02Z-M20 from Applied Automation at the price of $171.00. Order today.
Out if stock but available for backorder.
Safety switch for hinged guards; Flap safety switches; 1 Cable entry M 20 x 1.5; Metal enclosure; Good resistance to oil and petroleum spirit; 30 mm x 88,5 mm x 30 mm; Actuator heads can be repositioned by 4 x 90°
