T4C 236-02Z-M20 Schmersal Electronic Components
Part#:T4C 236-02Z-M20
Alt. Part#:101162635
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

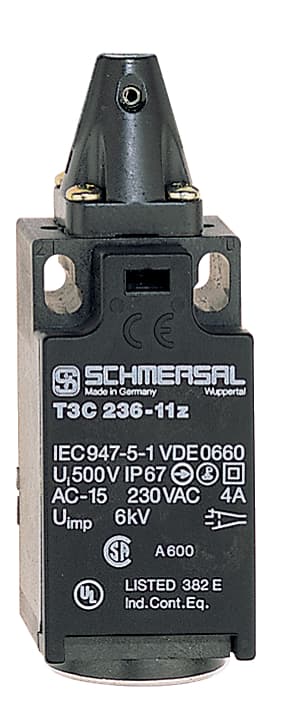

Safety switch for hinged guards; Flap safety switches; 1 Cable entry M 20 x 1.5; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; 30 mm x 88,5 mm x 30 mm; Actuator heads can be repositioned by 4 x 90°
Product Details
- Mechanical life, minimum 1,000,000 Operations
- Number of safety contacts 2
- Cable section, maximum 1 x 2.5 mm²
- Ambient temperature, maximum +80 °C
- Material of the contacts, electrical Silver
- Terminal Connector Screw connection
- Rated impulse withstand voltage Uimp 6 kV
- Utilisation category DC-13 1 A
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Cable section, minimum 1 x 0.75 mm²
- Width of sensor 30 mm
- Degree of protection IP67
- Switching frequency 5,000 /h
- Positive break torque 0.2 Nm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Rated insulation voltage Ui 500 V
- Switching element Opener (NC)
- Material of the actuator Stainless steel
- Height of the actuator 78 mm
- Gross weight 95 g
- Ambient temperature, minimum -30 °C
- Length of sensor 30 mm
- Positive break angle 12.5 °
- Opening angle 2 x 90°
- Thermal test current 10 A
- Switching principle Creep circuit element
- Actuating element Swivel lever
- Height of sensor 161 mm
- Utilisation category AC-15 4 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
