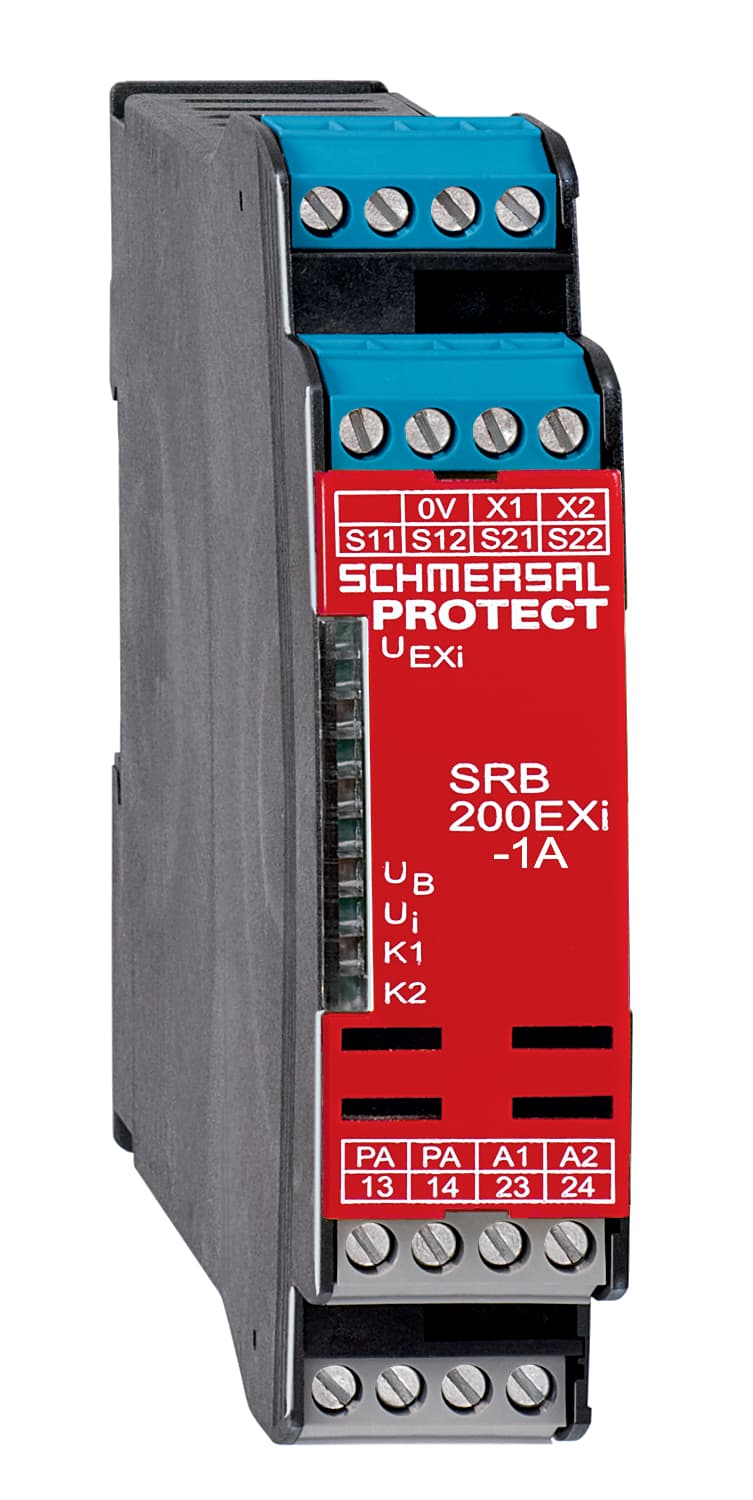

SRB200EXI-1A Schmersal Electronic Components
Part#:SRB200EXI-1A
Alt. Part#:101196286
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Safety-monitoring module; Automatic reset function; 2 safety contacts; Suitable for signal processing of emergency stop control devices, interlocking equipment, etc
Product Details
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Width 22.5 mm
- Degree of protection of the mounting space IP54
- Overvoltage category III
- Contact resistance, maximum 0.1 Ω
- Short-circuit recognition Yes
- Terminal designations IEC/EN 60947-1
- Ambient temperature, maximum +60 °C
- Operating Current 57 mA
- Drop-out delay in case of emergency stop, maximum 20 ms
- Integral System Diagnostics, status Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Ambient temperature, minimum -25 °C
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Conduction resistance, maximum 30 Ω
- Stop-Category 0
- Number of safety contacts 2
- Degree of protection of clips or terminals IP20
- Degree of pollution to IEC/EN 60664-1 2
- Note (Contact resistance) in new state
- Gross weight 230 g
- Number of LEDs 5
- Height 100 mm
- Storage and transport temperature, maximum +85 °C
- Utilisation category AC-15 230 VAC
- Pull-in delay at RESET, typically 20 ms
- Utilisation category DC-13 2 A
- Pull-in delay at automatic start, maximum, typically 300 ms
- Climatic stress EN 60068-2-78
- Earth connection detection Yes
- Depth 121 mm
- Restistance to shock 30 g / 11 ms
- Material of the contacts, electrical AgSn0. self-cleaning, positive drive
- Mechanical life, minimum 10,000,000 Operations
- Degree of protection of the enclosure IP40
- Rated impulse withstand voltage Uimp 4 kV
- EMC rating EMC-Directive
- Wire breakage detection Yes
- Number of openers 2
- Storage and transport temperature, minimum -40 °C
- Resistance to vibrations to EN 60068-2-6 10 ... 55 Hz, Amplitude 0.35 mm
- Rated control voltage at DC, maximum 28.8 VDC
- Drop-out delay in case of power failure, typically 20 ms
- Electrical power consumption 3 W
- Cable section, maximum 2.5 mm²
- Rated operating voltage 24 VDC -15%/+20%, residual ripple max. 10%
- Tightening torque of Clips 0.6 Nm
- Feedback circuit Yes
- Terminal Connector Screw connection, rigid or flexible
- Automatic reset function Yes
- Cable section, minimum 0.25 mm²
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
