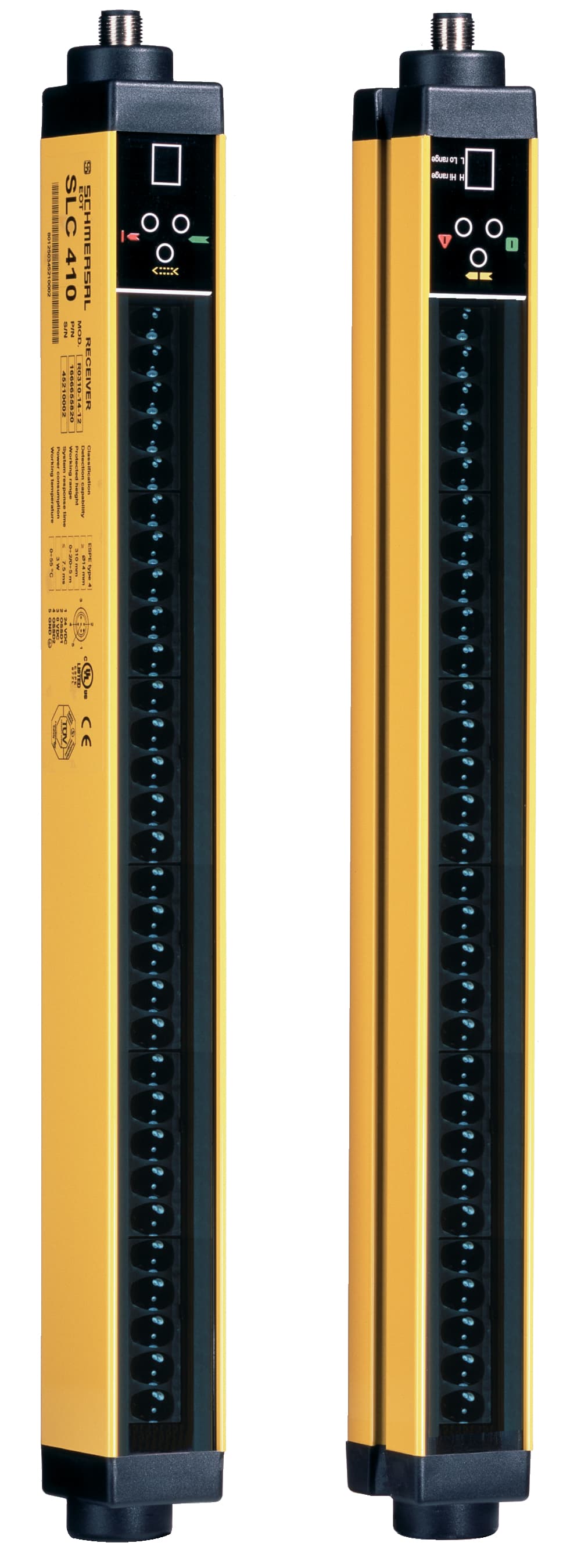

SLC 210-E/R0910-30-RFS Schmersal Safety Light Curtains

Product Details

• Enclosure material
  Aluminium
• Wave length of the sensor
  950 nm
• Terminal connector, Recipient
  Connector plug M12, 8-pole
• Storage and transport temperature, minimum
  -20 °C
• Master- or Slave-function
  slave
• Height of the protection field
  910 mm
• Terminal, Connector, Transmitter
  Connector plug M12, 5-pole
• Storage and transport temperature, maximum
  +70 °C
• Standards
  IEC/EN 61496-1/-2
• Integral System Diagnostics
  Yes
• Detection ability for test bodies at v = 1.6 m/s
  30 mm
• Number of fail-safe digital outputs
  2
• Length of the connectable cable, maximum
  50 m
• Length of sensor
  35 mm
• Electrical power consumption of the receiver
  3 W
• Switching voltage OSSD, HIGH signal
  24 V
• Cascadable
  Yes
• Reaction time, maximum
  14 ms
• Height of sensor
  1,011 mm
• Protection rating
  III
Output current, (fail-safe output), maximum
0.5 A
Integral System Diagnostics, status
Yes
Range, protection field, minimum
0 mm
Width of sensor
45 mm
Ambient temperature, maximum
+55 °C
Versions
p-type
Restart interlock (manual reset)
Yes
Number of beams
48
Terminal Connector
Connector
Ambient temperature, minimum
+0 °C
Electrical power consumption of the transmitter
2 W
Beam coding available
Yes
Range, protection field, maximum
18,000 mm
Degree of protection
IP65 to EN 60529
Voltage type
DC (direct current)
