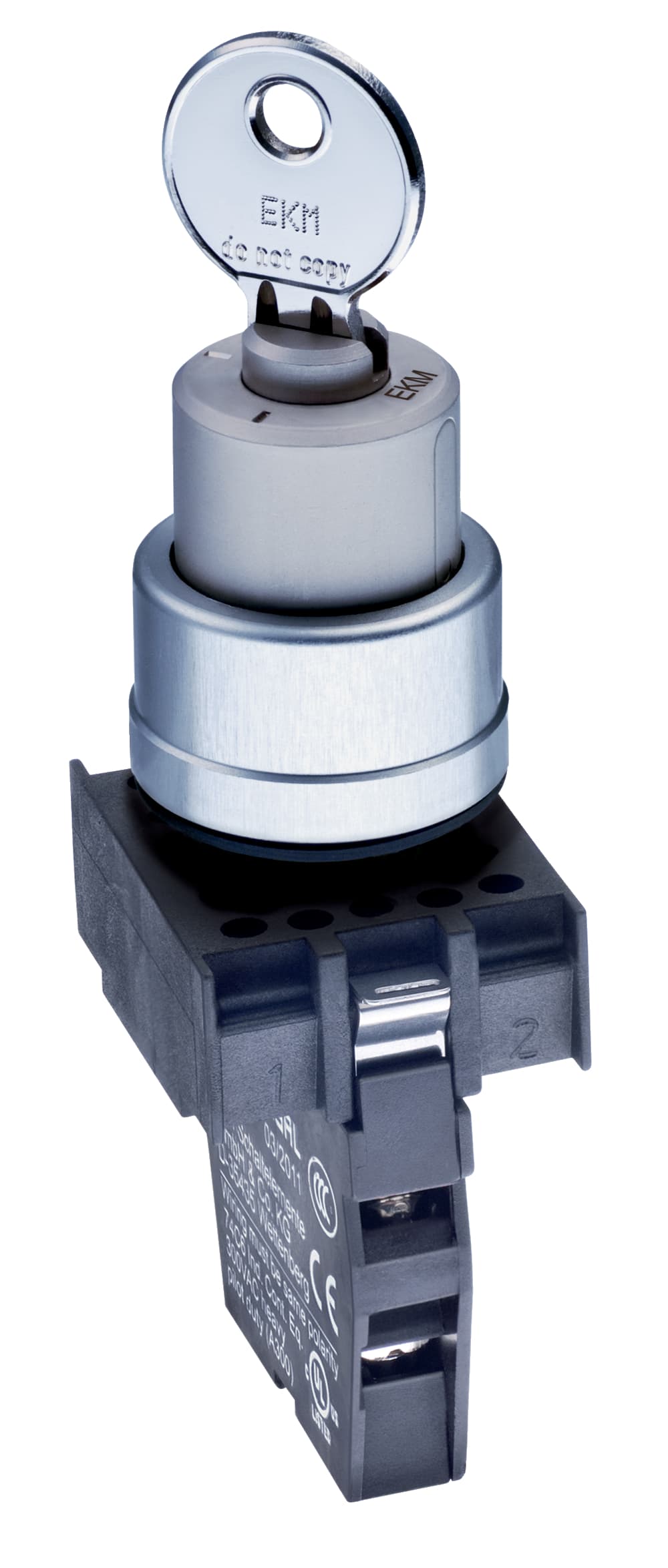

SHGV/ESS21S2/213/103 Schmersal Electronic Components

Product Details

• Latching
  Yes
• Versions
  Key - Selector switch - Front plate mounting
• Fully insulated
  Yes
• Tightening torque of the screw
  0.6 Nm
• diameters for the cylinder lock
  22 mm
• Degree of protection of the switch rooms
  IP40
• Utilisation category DC-13
  5 A
• Gross weight
  136 g
• Key number
  CODE_KEY_NUMBER213
• Degree of protection
  IP65
• Latching position
  right
• Thickness, of the front panel, minimum
  1 mm
• Ambient temperature, maximum
  +75 °C
• Switching principle
  Slow action
• Colour of the cylinder lock
  Silver
• Colour of the Contact element
  Black
• Cable section, minimum
  0.5 mm², rigid, 0.5 mm², flexible
• Diameter of the front ring
  29.5 mm
• Degree of protection of clips or terminals
  IP20
• Utilisation category AC-15
  8 A
Switching frequency
5 /h
Installation conditions (mechanical)
arbitrarily
Colour of key head
Silver
Key withdrawal position
Position I, 90°
Terminal Connector
Screw connection
Switching element
NC contact, NO contact
Material of the cylinder lock
Steel
Length x Width x Height
Height with key (and contact element): 60 mm (119 mm)
Spacing
40 x 50 mm
Thermal test current
10 A
Suitable for low-voltages
≥ 5 V / ≥ 3.2 mA
Sealing type
Membrane, Lip gaskets, Form seals
Unlocking
Rotating unlatcher
Cable section, maximum
2.5 mm², rigid, 2.5 mm², flexible
Restistance to shock
110 g / 4 ms
Material of the contacts, electrical
Silver
Number of auxiliary contacts
1
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Resistant to vibration
Resistance to vibration: 20 g / 10…200 Hz
Material of the front ring
Aluminium
Colour of the front ring
Silver
Mechanical life, minimum
100,000 Operations
Tightening torque of Clips
1 Nm
Ambient temperature, minimum
-25 °C
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Number of plunger
1
Mounting
mounting flange
Diameter hole, with tolerance indication
22.3 + 0.4 mm
Thickness of the front panel, maximum
6 mm
Rated insulation voltage Ui
400 V
Bounce duration, maximum
5 ms
Standards
IEC 60947-5-1, EN ISO 14119, IEC/EN 60947-1
Number of switch positions
2
Diameter hole
22.3 mm
