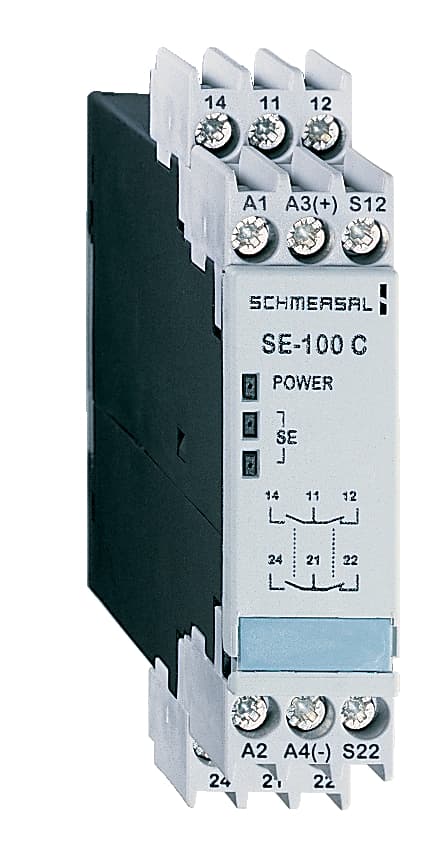

SE-100 C AUSWERTEGERAET Schmersal Electronic Components

Product Details

• Enclosure material
  Plastic, PE (Black), Crastin (Grey)
• Number of LEDs
  2
• Mechanical life, minimum
  20,000,000 Operations
• Degree of protection of the mounting space
  IP54
• Degree of pollution to VDE 0110
  2
• Wire breakage detection
  Yes
• Stop-Category
  0
• Climatic stress
  EN ISO 13856-2
• Length of cable
  200 m
• Ambient temperature, maximum
  +55 °C
• Rated AC voltage for controls at DC minimum
  21.6 VDC
• Time to readiness, maximum
  300 ms
• Number of signalling outputs
  1
• Height
  100 mm
• Resistance to vibrations to EN 60068-2-6
  10 … 55 Hz, amplitude 0.15 mm
• Standards
  EN ISO 13850, EN ISO 13849-1
• Gross weight
  166 g
• Mounting
  Snaps onto standard DIN rail to EN 60715
• Depth
  121 mm
• Ambient temperature, minimum
  +5 °C
Rated operating voltage
24 VDC +20% / -10%
Rated control voltage at DC, maximum
28.8 VDC
Reaction time, maximum
16 ms
Short-circuit recognition
Yes
Integral System Diagnostics, status
Yes
Width
22.5 mm
Rated impulse withstand voltage Uimp
4 kV
Automatic reset function
Yes
Number of safety contacts
1
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Operating current
150 mA
Degree of protection of clips or terminals
IP20
Reset after disconnection of supply voltage
Yes
Number of auxiliary contacts
1
Cable section, maximum
2 x 1.5 mm²
Electronic Fuse
Yes
Earth connection detection
Yes
Terminal Connector
Screw connection
Degree of protection of the enclosure
IP40
Overvoltage category
III
Electrical power consumption, maximum
4 W
EMC rating
EMC-Directive
Utilisation category AC-15
230 VAC
Utilisation category DC-13
24 VDC
