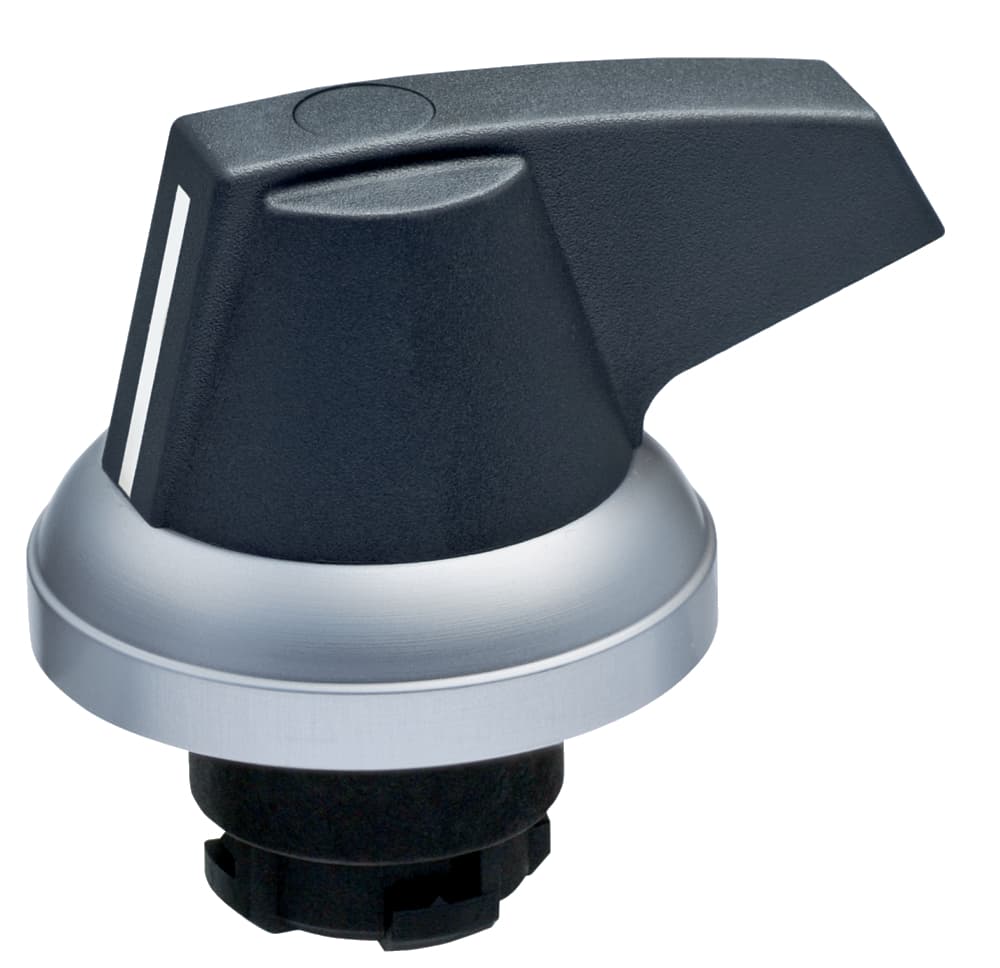

RWT21 Schmersal Selector Switches

Product Details

• Standards
  EN 60947-5-1, IEC/EN 60947-1
• Touch position
  right
• Mounting
  Mounting flange EFM
• Restistance to shock
  50 g
• Material of the operators
  ABS
• Mechanical life, minimum
  300,000 Operations
• Diameter of the front ring
  39.5 mm
• Thickness, of the front panel, minimum
  1 mm
• Sealing type
  Membrane, Lip gaskets, Form seals
• Number of plunger
  1
• Tightening torque of the screw
  0.6 Nm
• Thickness of the front panel, maximum
  6 mm
• Colour of the front ring
  Silver
• Number of switch positions
  2
• Diameter hole
  22.3 mm
• Degree of protection
  IP65
• Versions
  Toggle
• Unlocking
  without
• Length of the handle
  25 mm
• Ambient temperature, minimum
  +0 °C
Colour of the handle
Black
Probing possible
Yes
Diameter total
39.5 mm
Ambient temperature, maximum
+75 °C
Installation conditions (mechanical)
arbitrarily
Toggle
short
Fully insulated
Yes
Diameter of the knob
30 mm
Spacing
50 x 60 mm
Material of the front ring
Aluminium
Gross weight
50 g
Switching angle, right
55 °
Diameter hole, with tolerance indication
22.3 + 0.4 mm
