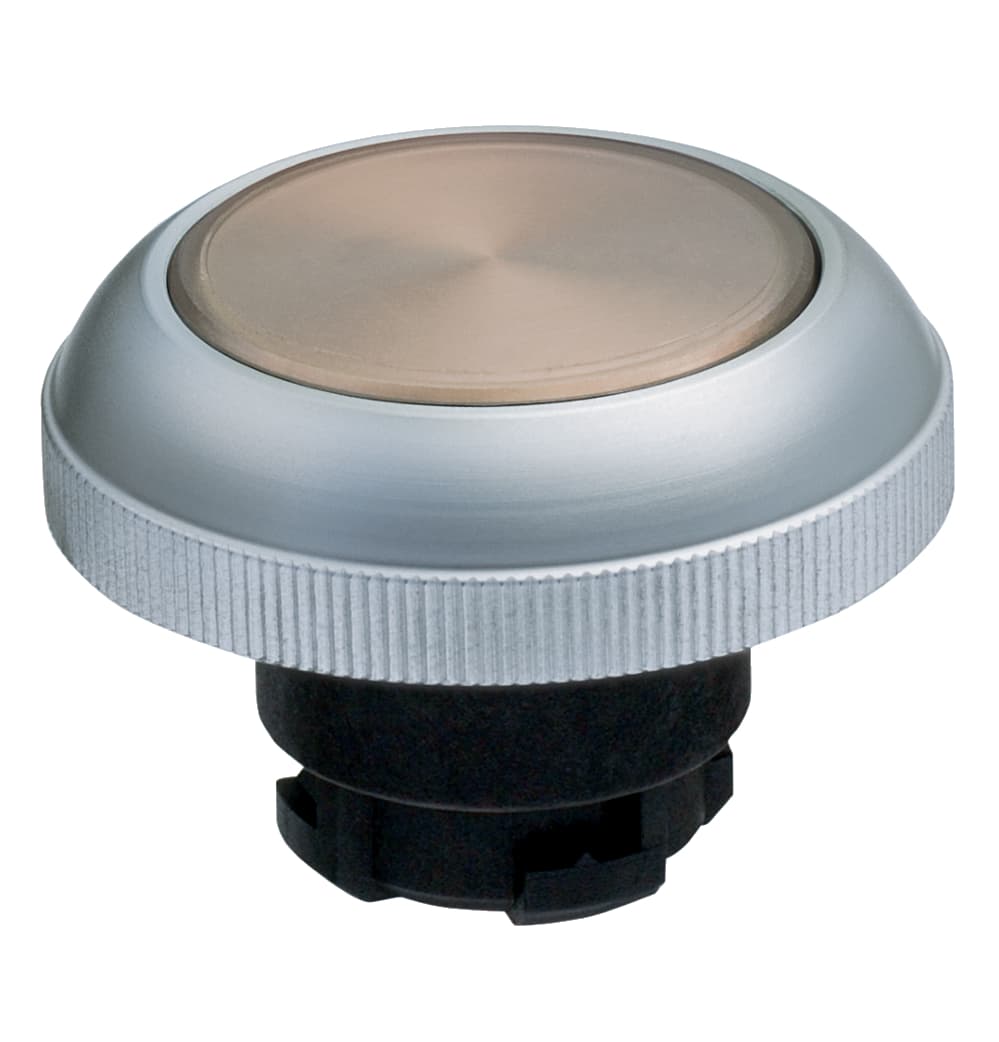

RDMRT Schmersal Pushbuttons
Part#:RDMRT
Alt. Part#:101188270
Manufacturer:Schmersal
Category:Pushbuttons
Product Lifecycle:Active
Product description
RDMRT Schmersal - Command and signalling devices; "R" program; Push button with membrane; Symbols still clearly visible under transparent membrane
Product Details
- Colour of the front ring Silver
- Material of the front ring Aluminium
- Actuating force, approx. 2 N
- Diameter hole 22.3 mm
- Degree of protection IP65
- Installation conditions (mechanical) arbitrarily
- Unlocking without
- Diameter total 39.5 mm
- Switching frequency 1,200 /h
- Versions Embeddable button - Front plate mounting
- Mounting flange Yes
- Mounting Mounting flange EFM
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Restistance to shock 50 g
- Standards EN 60947-5-1, IEC/EN 60947-1
- Gross weight 40 g
- Mechanical life, minimum 1,000,000 Operations
- Diameter of the front ring 39.5 mm
- Ambient temperature, minimum -25 °C
- Sealing type Membrane, Lip gaskets, Form seals
- Probing possible Yes
- Diameter of touch surface 28 mm
- Thickness of the front panel, maximum 6 mm
- Design Round
- Colour of the operating element Red
- Actuating stroke 4 mm
- Fully insulated Yes
- Tightening torque of the screw 0.6 Nm
- Height of touch surface 1.5 mm
- Spacing 40 x 50 mm
- Ambient temperature, maximum +75 °C
- Material of the operators Aluminium
- Membrane Yes
- Height 12 mm
- Thickness, of the front panel, minimum 1 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RDMRT on Applied Automation is $67.00. Order now.
