RDLBL Schmersal Pushbuttons
Part#:RDLBL
Alt. Part#:101188259
Manufacturer:Schmersal
Category:Pushbuttons
Product Lifecycle:Active
Product description

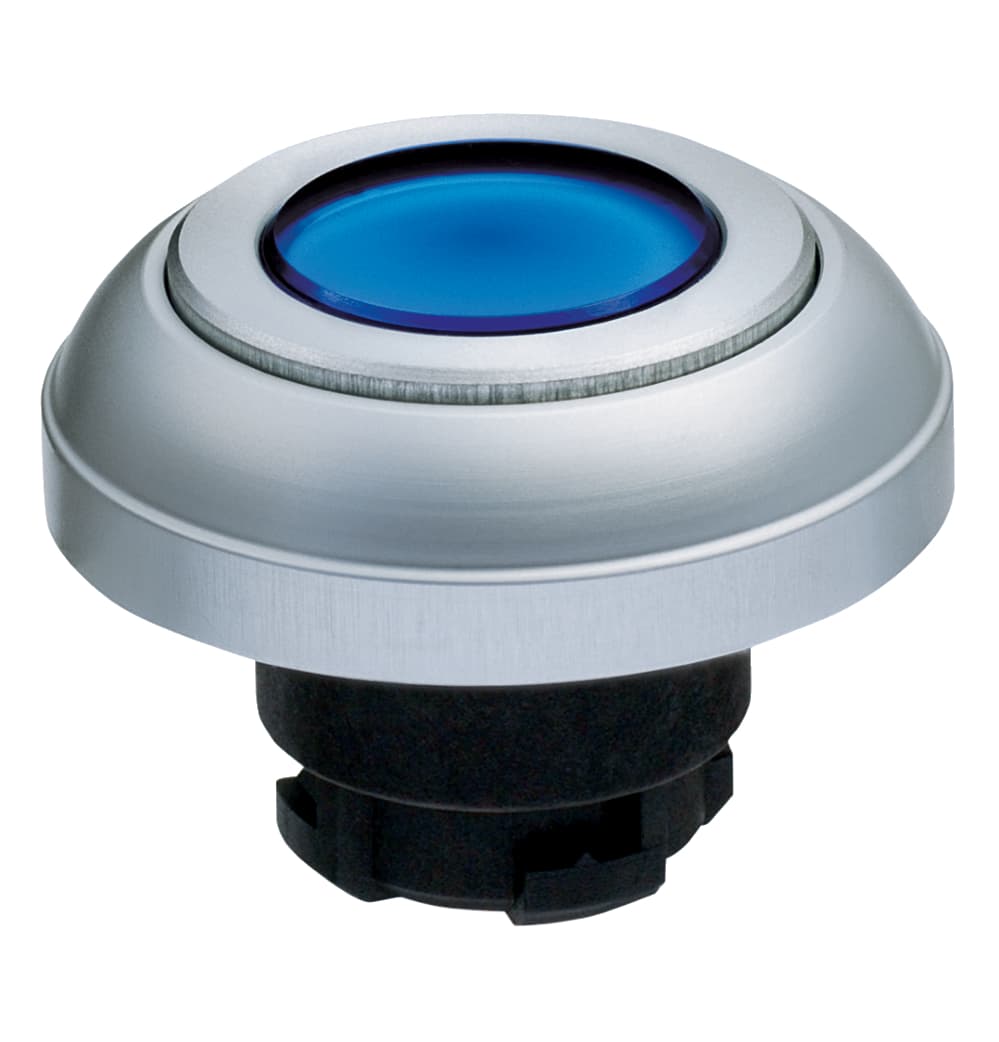

RDLBL Schmersal - Illuminated Pushbutton
Product Details
- Material of the front ring Aluminium
- Versions Flush-mounted illuminated pushbutton - Front plate mounting
- Fully insulated Yes
- Diameter hole 22.3 mm
- Ambient temperature, maximum +75 °C
- Material of the operators Glass
- Mounting Mounting flange ELM
- Height of touch surface 0.8 mm
- Restistance to shock 50 g
- Mounting flange Yes
- Mechanical life, minimum 1,000,000 Operations
- Diameter of touch surface 28 mm
- Thickness, of the front panel, minimum 1 mm
- Standards EN 60947-5-1, IEC/EN 60947-1
- Colour of the front ring Silver
- Probing possible Yes
- Height 11.3 mm
- Spacing 40 x 50 mm
- Illuminable Yes
- Unlocking without
- Tightening torque of the screw 0.6 Nm
- Degree of protection IP65
- Gross weight 45 g
- Design Round
- Actuating force, approx. 1.5 N
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Switching frequency 1,200 /h
- Thickness of the front panel, maximum 6 mm
- Installation conditions (mechanical) arbitrarily
- Actuating stroke 4 mm
- Diameter total 39.5 mm
- Ambient temperature, minimum -25 °C
- Sealing type Membrane, Lip gaskets, Form seals
- Colour of the operating element Blue
- Integral System Diagnostics, general No
- Diameter of the front ring 39.5 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
