PS215-Z12-R200 Schmersal Safety Switches

PS215-Z12-R200 on Applied Automation
Schmersal

Part#:PS215-Z12-R200

Alt. Part#:103014957

Manufacturer:Schmersal

Category:Safety Switches

Product Lifecycle:Active

Product description

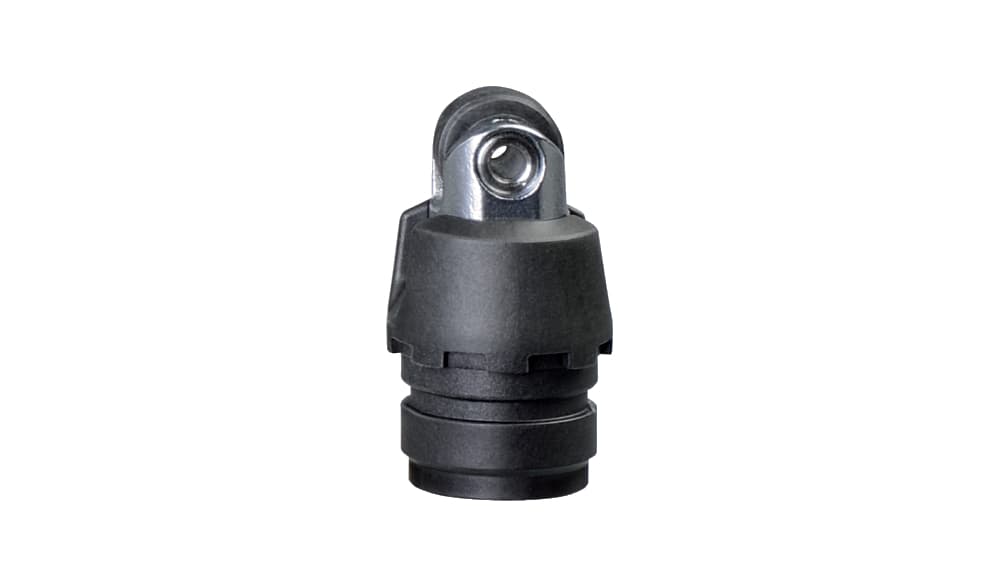

PS215-Z12-R200 Schmersal - Position switch; PS215; Metal enclosure; Design to EN 50047; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; plastic roller Ø 9,5 mm

Product Details

  • Utilisation category DC-13
    24 VDC
  • Utilisation category AC-15
    240 VAC
  • Ambient temperature, maximum
    +80 °C
  • Cable section, minimum
    0.34 mm²
  • Terminal Connector
    Screw connection
  • Actuating element
    Roller plunger R200
  • Housing construction form
    Norm construction design
  • Switching frequency
    5,000 /h
  • Switching element
    1 NO contact, 2 NC contacts
  • Switching principle
    Snap switch element
  • Thermal test current
    5 A
  • Required rated short-circuit current to EN 60947-5-1
    400 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated insulation voltage Ui
    300 V
  • Ambient temperature, minimum
    -30 °C
  • Length of sensor
    32.5 mm
  • Degree of protection
    IP66, IP67
  • Height of sensor
    85.6 mm
  • Width of sensor
    31 mm
  • Cable section, maximum
    1.5 mm²
  • Actuating speed, maximum
    0.5 m/s
  • Mechanical life, minimum
    10,000,000 Operations
  • Gross weight
    207 g
  • Enclosure material
    Metal, zinc die-cast
  • Actuating speed, minimum
    10 mm/min
  • Standards
    IEC 60947-5-1
  • Positive break force, minimum
    40 N
  • Enclosure coating material
    painted
  • Safety functions
    Yes
  • Number of auxiliary contacts
    1
  • Number of safety contacts
    2
  • Material of the contacts, electrical
    Silver
  • Actuator type to DIN EN 50047
    c

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS215-Z12-R200 on Applied Automation is $98.00. Order now.




PS215-Z12-R200 Related Documents

Manufacturer warranty

PS215-Z12-R200 Schmersal

$98.00

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$98.00

$98.00 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!

Fast Shipping & Delivery

We deliver nationwide and international


Secure Payment Processing

Your Safety, Our Priority.


Warranty

Manufacturer warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

About the manufacturer

Schmersal

Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...

Recently viewed products

Relevant products

FAQ

What is the price of PS215-Z12-R200?
Purchase the PS215-Z12-R200 from Applied Automation at the price of $98.00. Order today.

Out if stock but available for backorder.

PS215-Z12-R200 Schmersal - Position switch; PS215; Metal enclosure; Design to EN 50047; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; plastic roller Ø 9,5 mm
