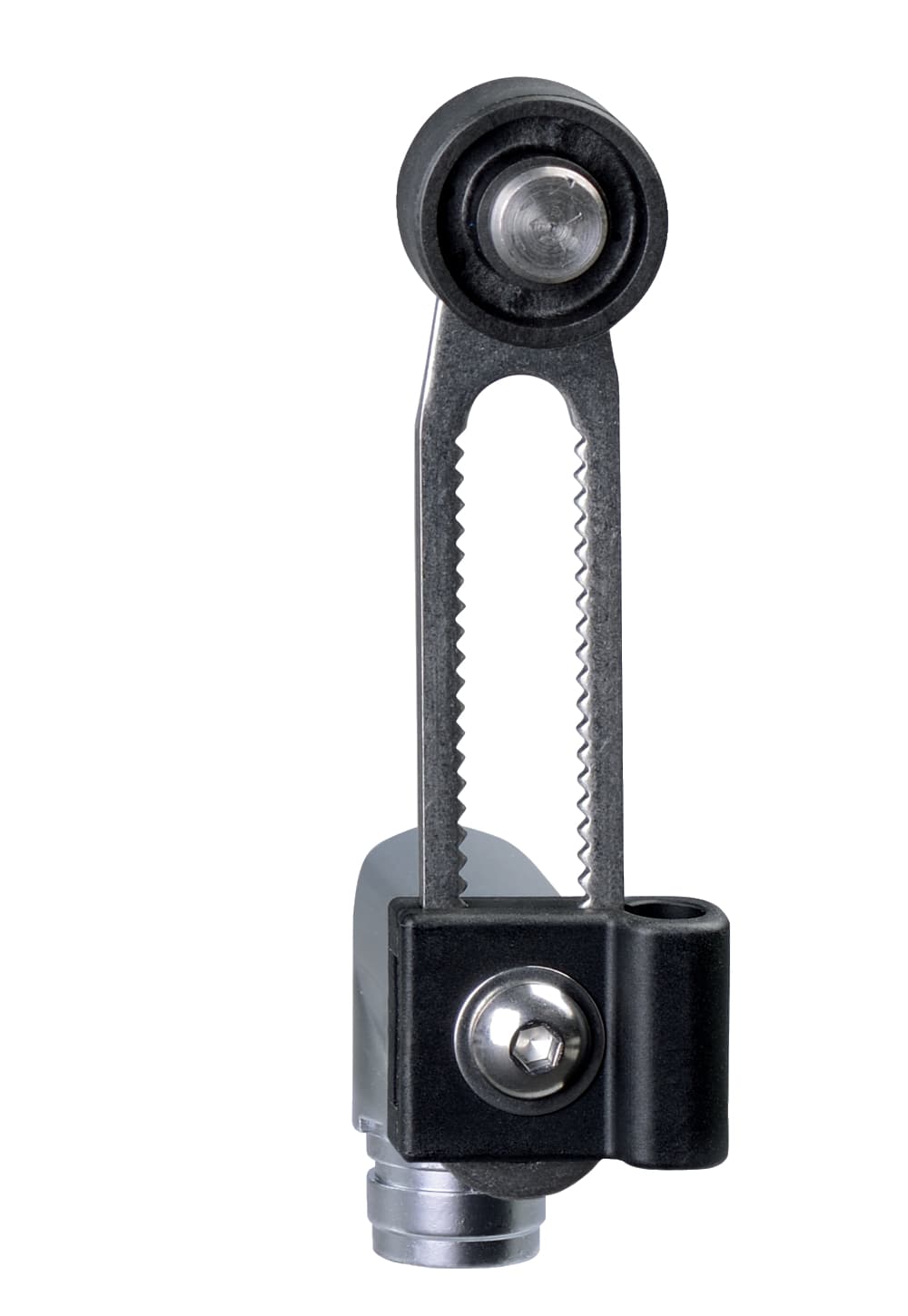

PS215-Z11-N200 Schmersal Safety Switches
Part#:PS215-Z11-N200
Alt. Part#:103014972
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS215-Z11-N200 Schmersal - Position switch; PS215; Lever angle adjustable in 15° steps; Actuator heads can be repositioned by 8 x 45°; Metal enclosure; Design to EN 50047; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control ele
Product Details
- Number of safety contacts 1
- Actuating speed, maximum 1 m/s
- Ambient temperature, maximum +80 °C
- Switching frequency 5,000 /h
- Housing construction form Norm construction design
- Terminal Connector Screw connection
- Ambient temperature, minimum -30 °C
- Utilisation category AC-15 3 A
- Number of auxiliary contacts 1
- Positive break force, minimum 40 N
- Degree of protection IP66, IP67
- Utilisation category DC-13 3 A
- Standards IEC 60947-5-1
- Enclosure material Metal, zinc die-cast
- Length of sensor 32.5 mm
- Rated insulation voltage Ui 300 V
- Switching principle Snap switch element
- Enclosure coating material painted
- Actuating speed, minimum 10 mm/min
- Width of sensor 31 mm
- Required rated short-circuit current to EN 60947-5-1 400 A
- Switching element 1 NO contact, 1 NC contacts
- Gross weight 265 g
- Height of sensor 150.5 mm
- Mechanical life, minimum 10,000,000 Operations
- Safety functions Yes
- Cable section, maximum 1.5 mm²
- Rated impulse withstand voltage Uimp 4 kV
- Material of the contacts, electrical Silver
- Actuating element Roller lever N200
- Cable section, minimum 0.34 mm²
- Thermal test current 10 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS215-Z11-N200 on Applied Automation is $154.00. Order now.
