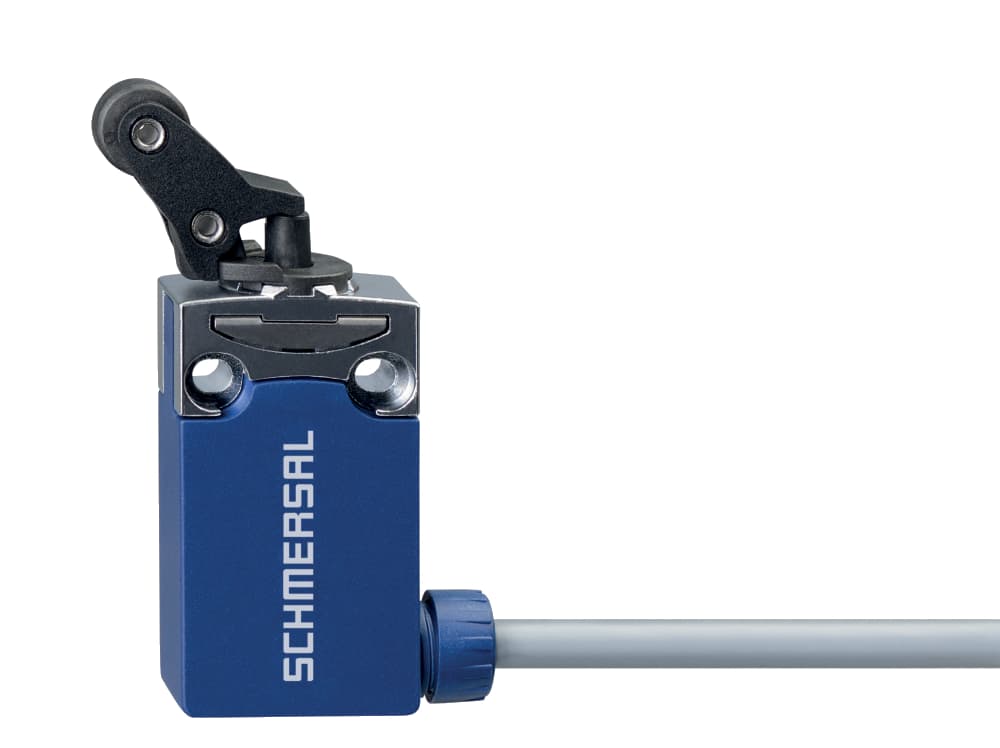

PS116-Z11-LR200-K230 Schmersal Safety Switches

Product Details

• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
• Actuating speed, maximum
  1 m/s
• Length of cable
  2 m
• Rated insulation voltage Ui
  300 V
• Number of safety contacts
  1
• Positive break force, minimum
  40 N
• Housing construction form
  Norm construction design
• Length of sensor
  16.6 mm
• Switchover time, maximum
  5.5 ms
• Gross weight
  174.7 g
• Terminal Connector
  Cable, 4-pole
• Width of sensor
  31 mm
• Thermal test current
  5 A
• Required rated short-circuit current to EN 60947-5-1
  400 A
• Standards
  IEC 60947-5-1
• Actuating element
  Angle roller lever K230
• Diameter of Castor
  14 mm
• Ambient temperature, maximum
  +80 °C
• Bounce duration, maximum
  3 ms
• Safety functions
  Yes
Positive break torque
0.6 Nm
Wire cross-section
0.5 mm2
Ambient temperature, minimum
-30 °C
Utilisation category DC-13
1.5 A
Number of auxiliary contacts
1
Actuating speed, minimum
27 mm/min
Degree of protection
IP66, IP67
Switching element
NO contact, NC contact
Utilisation category AC-15
3 A
Material of the contacts, electrical
Silver
Mechanical life, minimum
10,000,000 Operations
Cable type
LiYY
Rated impulse withstand voltage Uimp
4 kV
Switching frequency
5,000 /h
Terminal (mechanical)
right
Actuating force, minimum
9.5 N
Actuating torque, minimum
0.2 Nm
Height of sensor
82 mm
Switching principle
Snap switch element
