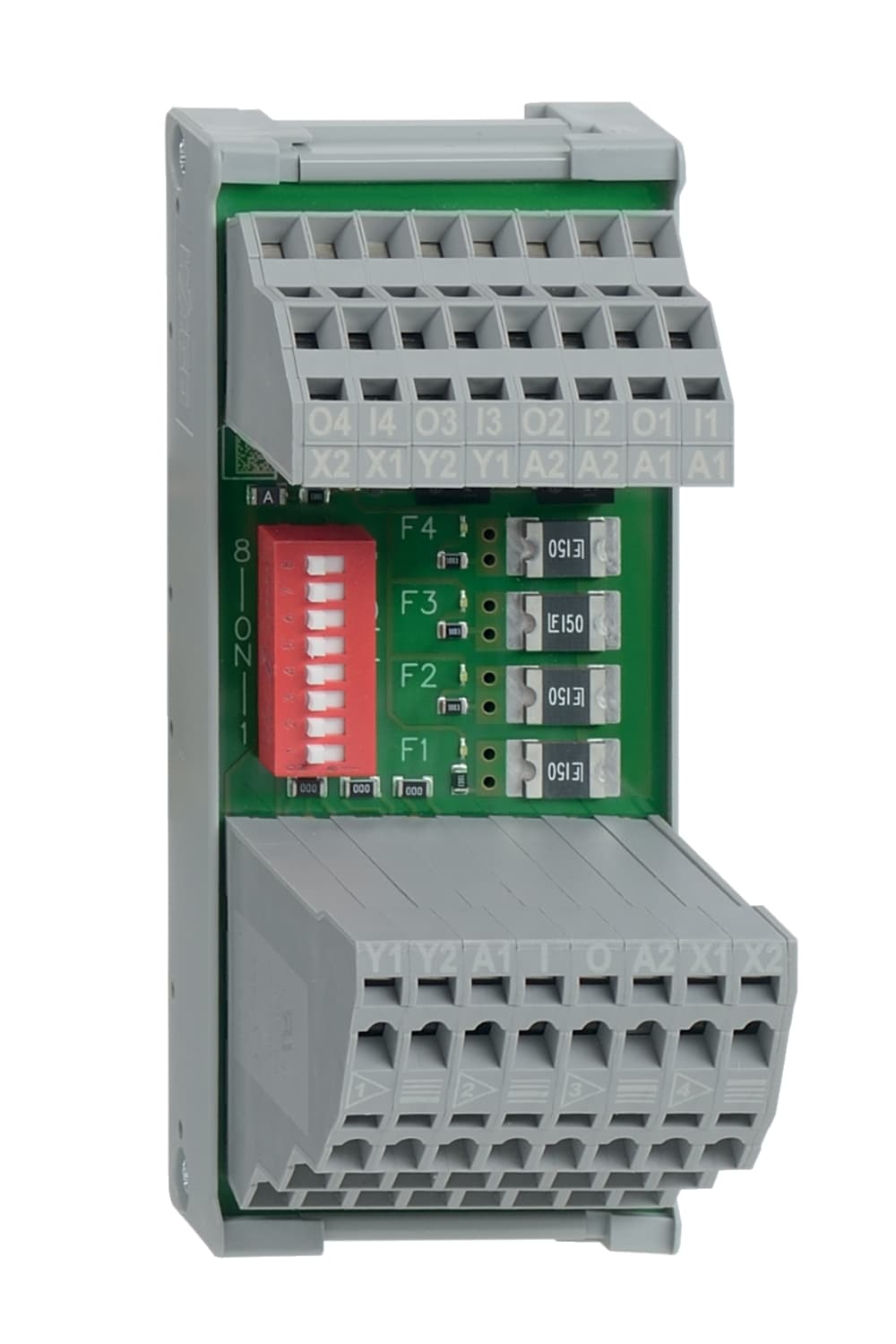

PDM-SD-4CC-SD Schmersal Safety Accessories
Part#:PDM-SD-4CC-SD
Alt. Part#:103012161
Manufacturer:Schmersal
Category:Safety Accessories
Product Lifecycle:Active
Product description
PDM-SD-4CC-SD Schmersal - Input expanders; Distribution modules and fieldboxes; For SD-Interface devices; Passive distribution module for series-wiring; Cage clamps; For up to 4 safety switchgears; Fuse protected device ports; For installation in terminal boxes; Protection class I
Product Details
- Depth 67.7 mm
- Gross weight 120 g
- Enclosure material Plastic, Polyamide PA 66 GV
- Number of LEDs 5
- Ambient temperature, maximum +65 °C
- Terminal Connector Cage clamps
- Width 45 mm
- Rated impulse withstand voltage Uimp 0.8 kV
- Rated insulation voltage Ui 32 VDC
- Rated operating voltage 24 VDC
- Note (Relative humidity) non-condensing
- Standards IEC 60947-1
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Degree of pollution to VDE 0100 2
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Protection rating III
- Integral System Diagnostics, status Yes
- Storage and transport temperature, minimum -40 °C
- Relative humidity, minimum 5 %
- Overvoltage category III
- Cable section, maximum 1.5 mm²
- Height 105.4 mm
- Cable section, minimum 0.25 mm²
- Degree of protection IP00
- Storage and transport temperature, maximum +85 °C
- Restistance to shock 30 g / 11 ms
- Ambient temperature, minimum -25 °C
- Relative humidity, maximum 95 %
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PDM-SD-4CC-SD on Applied Automation is $198.00. Order now.
