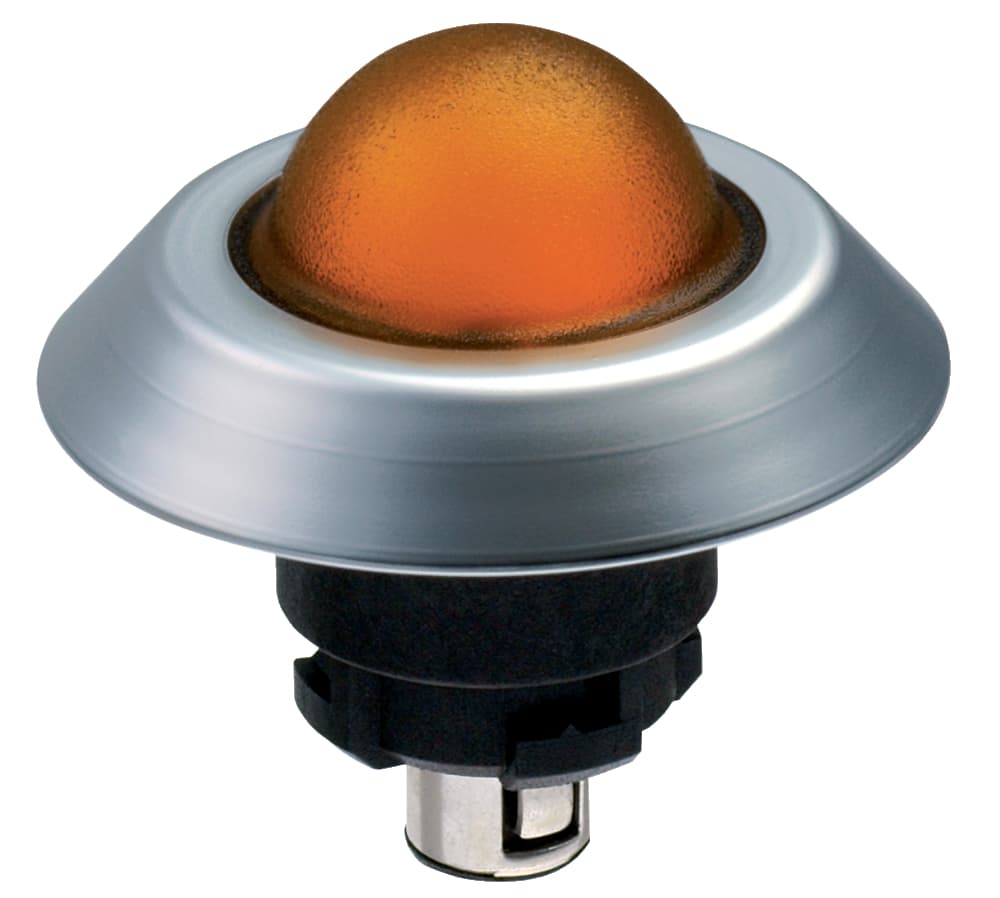

NMEGN Schmersal Indicator Lights

Product Details

• Colour of the front ring
  Silver
• Material of the front ring
  ABS, chrome-plated
• Fully insulated
  Yes
• Integral System Diagnostics, general
  Yes
• Diameter hole
  22.3 mm
• Degree of protection
  IP67, IP69K
• Sealing type
  Membrane, Lip gaskets, Form seals
• Material of the dome
  PA (12)
• Colour of the dome
  Green
• Gross weight
  50 g
• Design
  Round, High calotte
• Versions
  LED - Indicator light - Front plate mounting
• Installation conditions (mechanical)
  arbitrarily
• Standards
  EN 60947-5-1, IEC/EN 60947-1
• Illuminable
  Yes
• Mounting flange
  Yes
• Mounting
  Mounting flange ELM
• Height of the dome
  10.4 mm
• Tightening torque of the screw
  0.6 Nm
• Diameter of the front ring
  44.5 mm
Diameter total
44.5 mm
Diameter of the dome
22 mm
Thickness of the front panel, maximum
6 mm
Thickness, of the front panel, minimum
1.5 mm
Diameter hole, with tolerance indication
22.3 + 0.4 mm
Ambient temperature, minimum
-25 °C
Spacing
50 x 50 mm
Ambient temperature, maximum
+80 °C
