NDTP30WS Schmersal Pushbuttons
Part#:NDTP30WS
Alt. Part#:103005363
Manufacturer:Schmersal
Category:Pushbuttons
Product Lifecycle:Active
Product description
NDTP30WS Schmersal - Mushroom Button from N Series (IP69K)
Product Details
- Material of the bellows Silicone
- Gross weight 36 g
- Degree of protection IP67, IP69K
- Colour of the operating element White
- Fully insulated Yes
- Material of the operators Plastic
- Probing possible Yes
- diameters for the actuating heads 30 mm
- Thickness, of the front panel, minimum 1.5 mm
- Colour of the front ring Silver
- Colour of the bellows White
- Thickness of the front panel, maximum 6 mm
- Ambient temperature, minimum -25 °C
- Material of the front ring ABS, chrome-plated
- Height 20 mm
- Spacing 50 x 50 mm
- Design Round
- Actuating stroke 5 mm
- Tightening torque of the screw 0.6 Nm
- Ambient temperature, maximum +80 °C
- Versions round, Mushroom button
- Mounting flange Yes
- Diameter hole 22.3 mm
- Standards EN 60947-5-1, IEC/EN 60947-1
- Sealing type Membrane, Lip gaskets
- Mounting Mounting flange EFM
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NDTP30WS on Applied Automation is $53.00. Order now.
NDTP30WS Related Documents
Manufacturer warranty
NDTP30WS Schmersal
$53.00
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$53.00
$53.00 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare NDTP30WS with other Pushbuttons products
Material of the bellows
Gross weight
Degree of protection
Colour of the operating e...
Fully insulated
Material of the operators
Probing possible
diameters for the actuati...
Thickness, of the front p...
Colour of the front ring
Selected product
Material of the bellowsSilicone
Gross weight36 g
Degree of protectionIP67, IP69K
Colour of the operating elementWhite
Fully insulatedYes
Material of the operatorsPlastic
Probing possibleYes
diameters for the actuating heads30 mm
Thickness, of the front panel, minimum1.5 mm
Colour of the front ringSilver
D7P-U2EFFE
Sprecher + Schuh
Sprecher + Schuh D7P-U2EFFE - D7 22mm Multifuction, Non-Illuminated, Plastic, 2 Position Extended Fl...
Material of the bellows-
Gross weight-
Degree of protection-
Colour of the operating element-
Fully insulated-
Material of the operators-
Probing possible-
diameters for the actuating heads-
Thickness, of the front panel, minimum-
Colour of the front ring-
D7P-F301PX10
Sprecher + Schuh
Sprecher + Schuh D7P-F301PX10 - D7 22mm Push Button, Non-Illuminated, Plastic, Flush Momentary, Gree...
Material of the bellows-
Gross weight-
Degree of protection-
Colour of the operating element-
Fully insulated-
Material of the operators-
Probing possible-
diameters for the actuating heads-
Thickness, of the front panel, minimum-
Colour of the front ring-
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of NDTP30WS?
Purchase the NDTP30WS from Applied Automation at the price of $53.00. Order today.
Out if stock but available for backorder.
NDTP30WS Schmersal - Mushroom Button from N Series (IP69K)

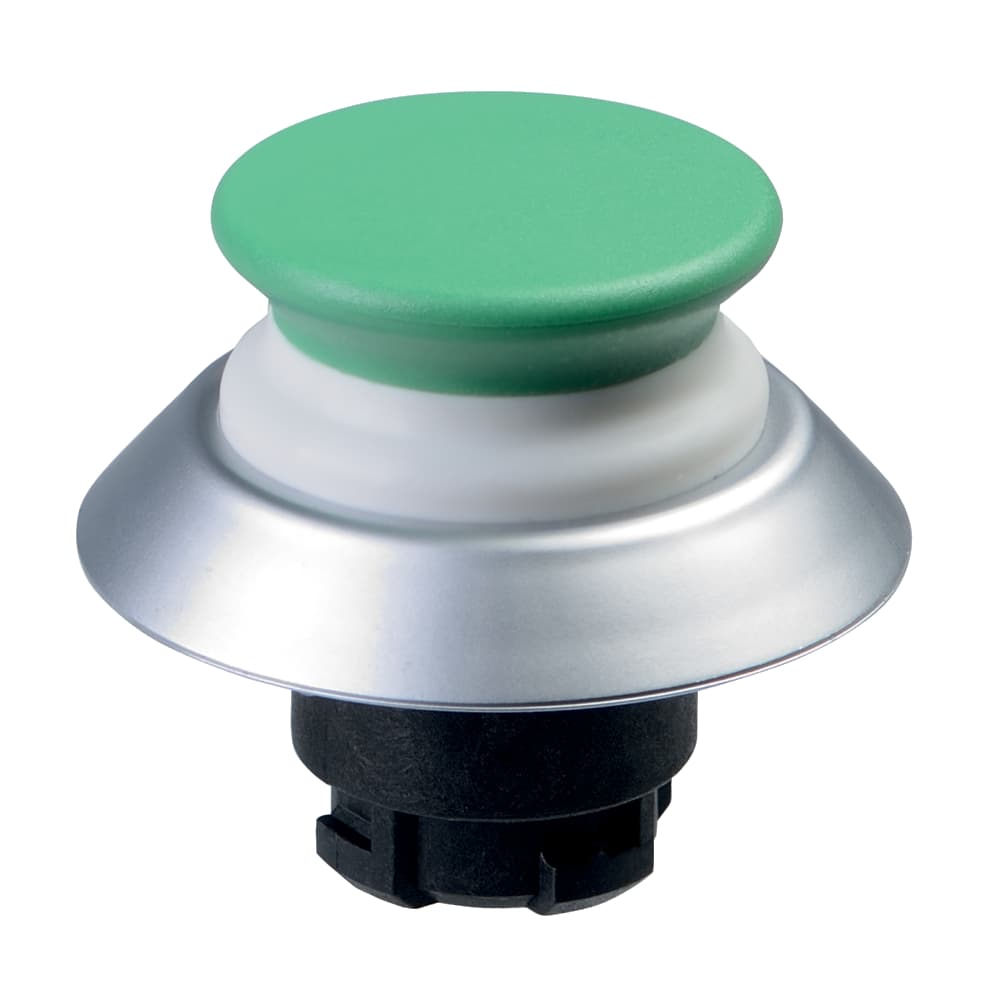

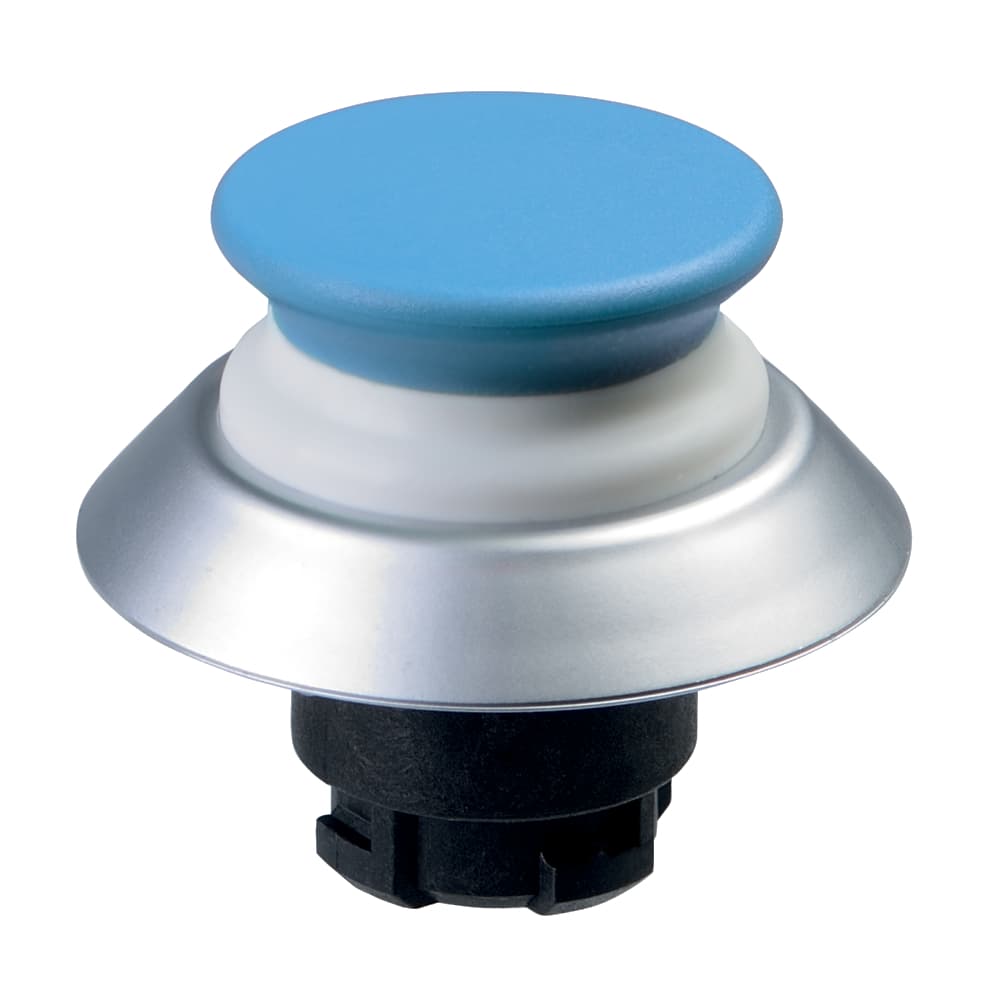

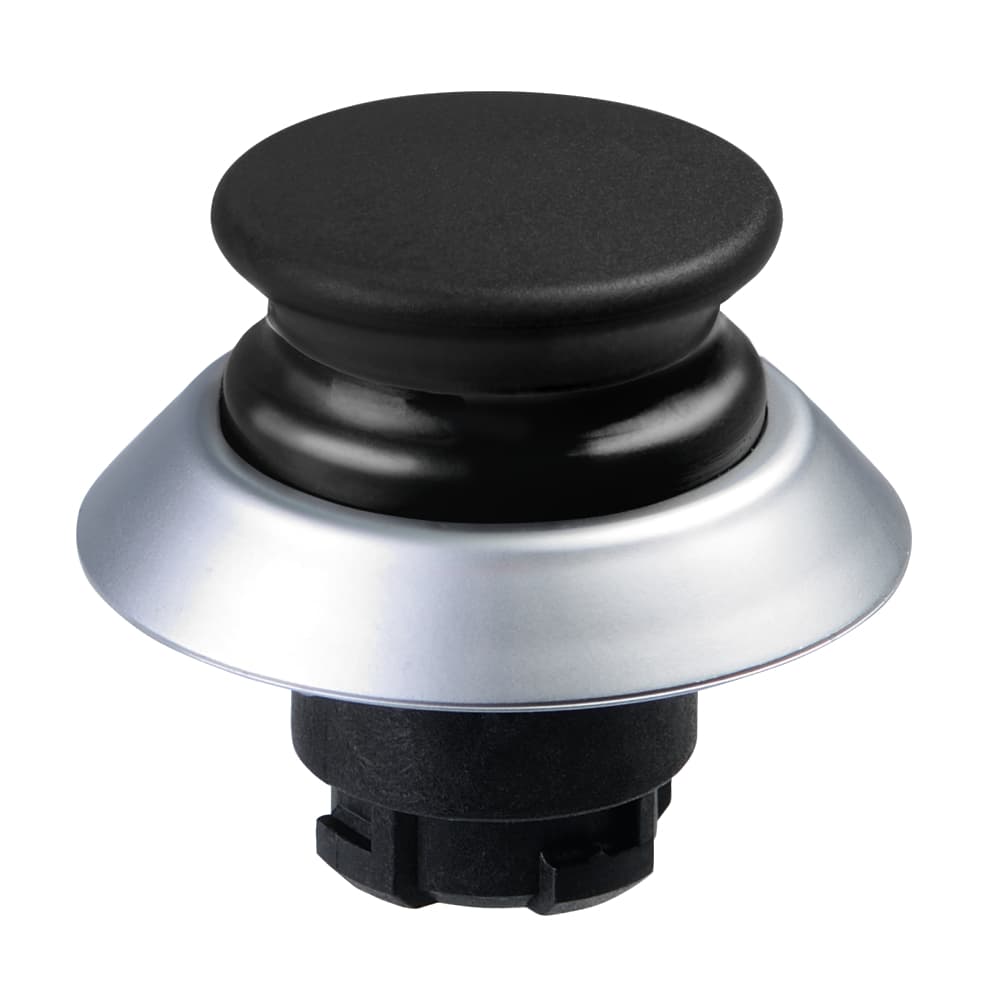

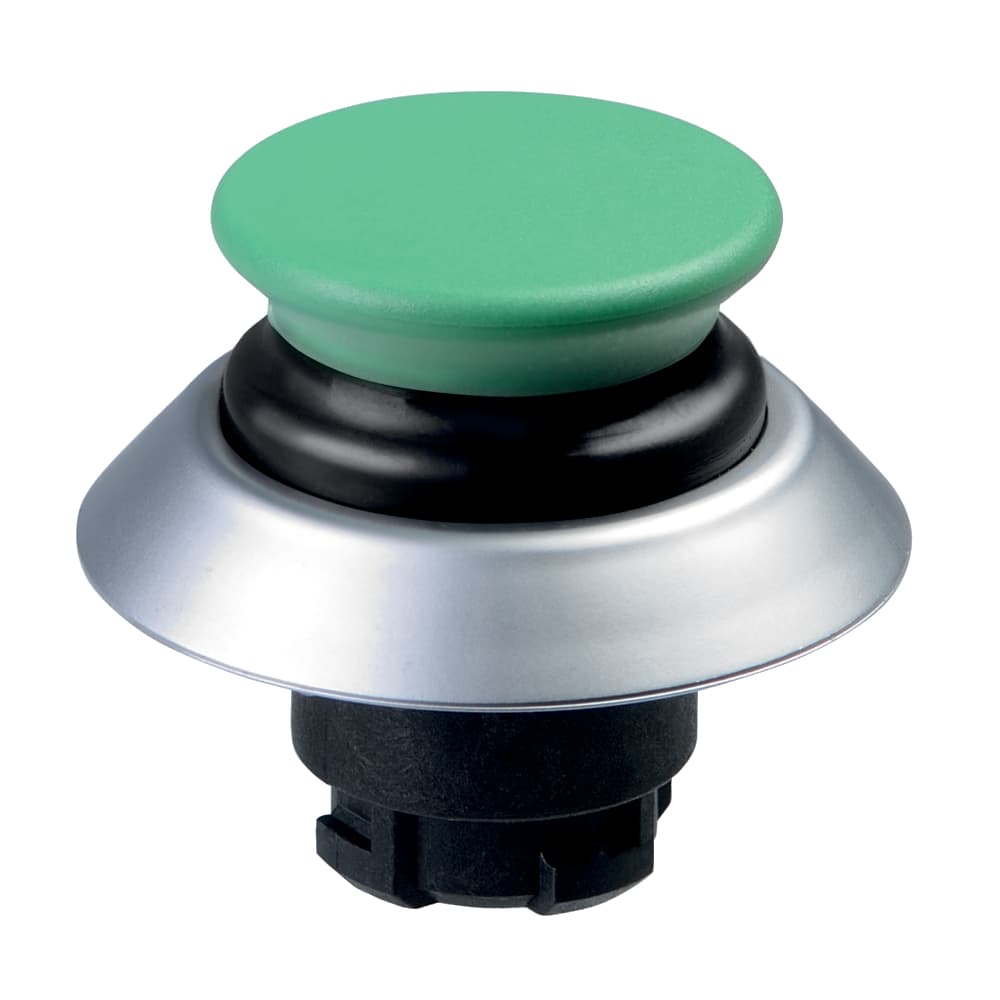

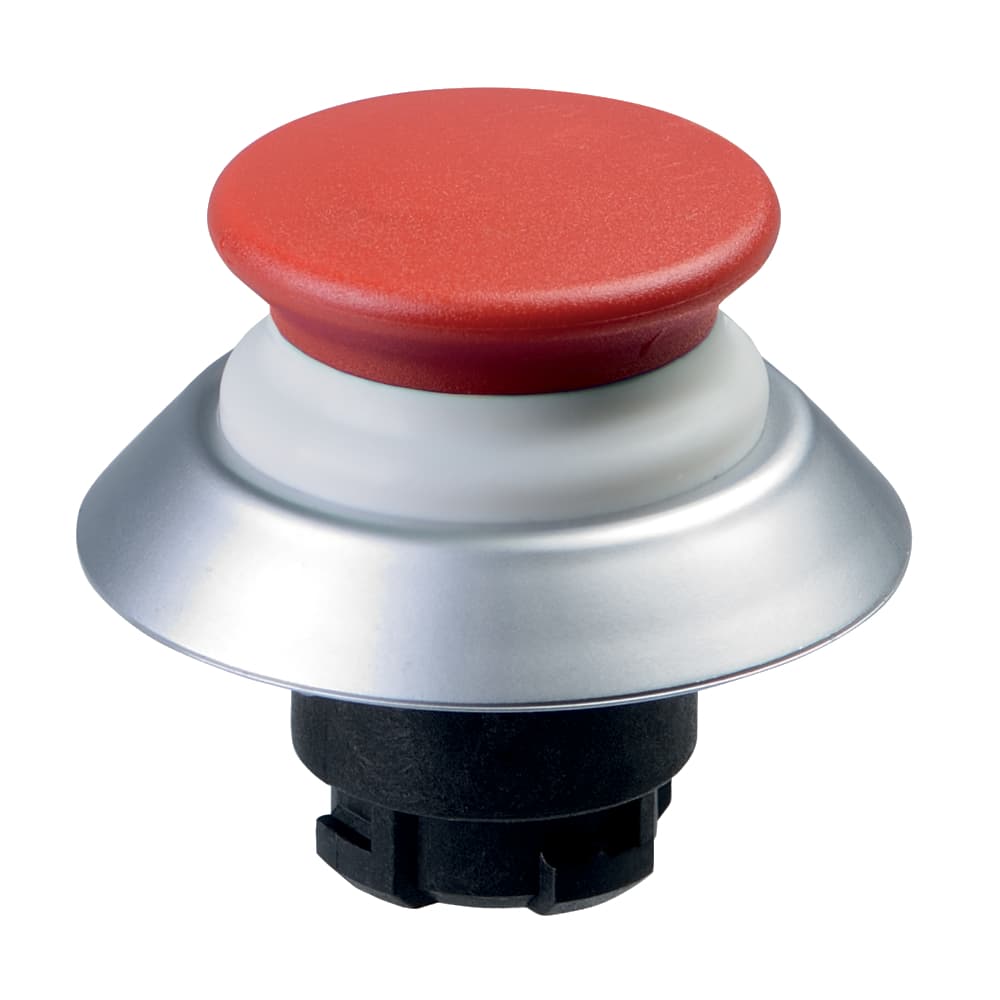

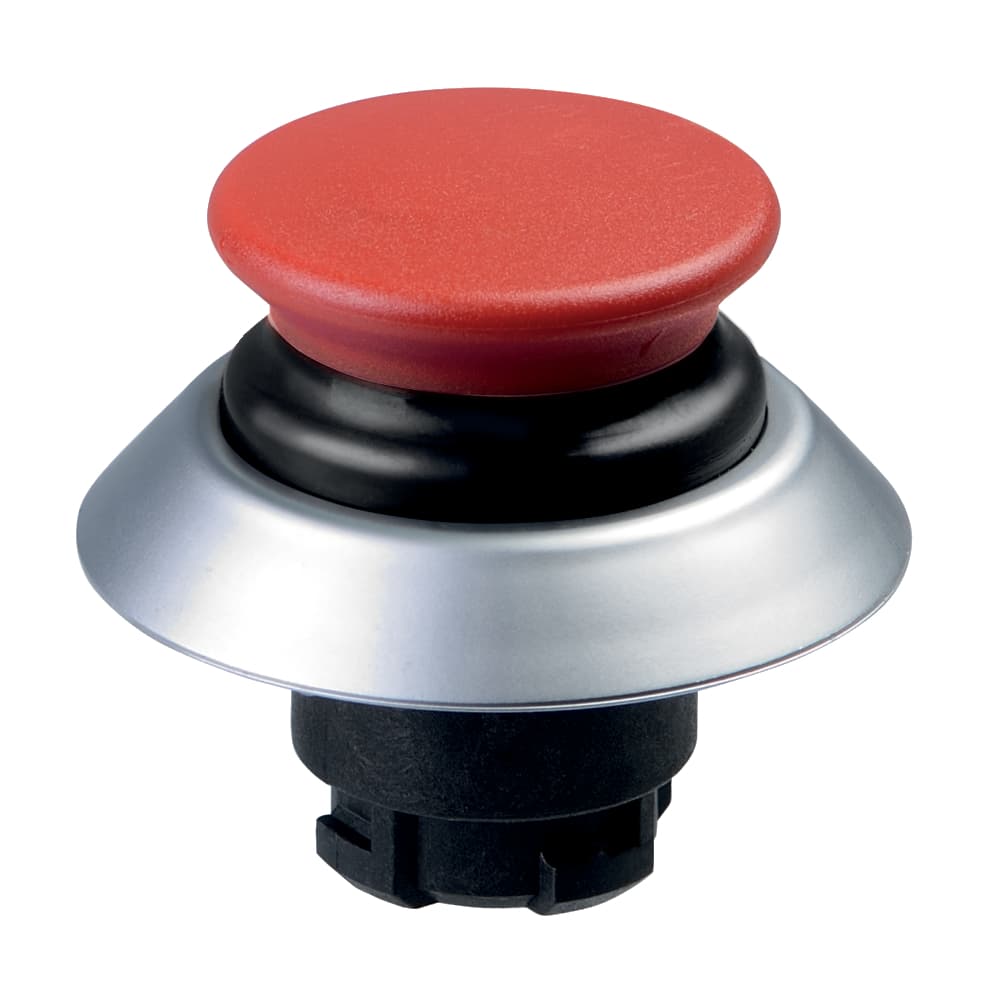

Similar products from: Pushbuttons
