NDTP30GR/WS Schmersal Pushbuttons

Name: NDTP30GR/WS
Brand: Schmersal
Price: 53 USD
Availability: BackOrder

Part#:NDTP30GR/WS

Alt. Part#:103009114

Manufacturer:Schmersal

Category:Pushbuttons

Product Lifecycle:Active

Product description

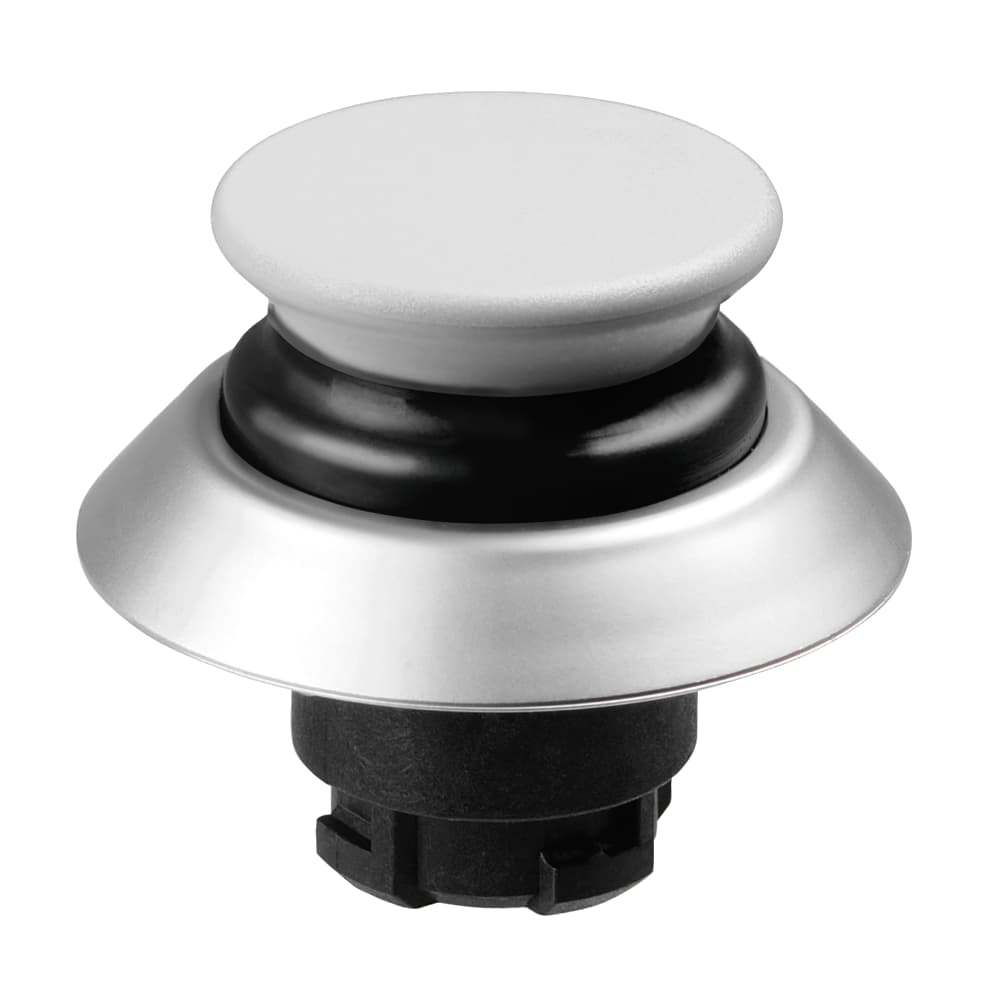

NDTP30GR/WS Schmersal - Mushroom Button from N Series (IP69K)

Product Details

Design
Round
Colour of the operating element
White
diameters for the actuating heads
30 mm
Colour of the front ring
Silver
Actuating stroke
5 mm
Thickness of the front panel, maximum
6 mm
Standards
EN 60947-5-1, IEC/EN 60947-1
Diameter hole, with tolerance indication
22.3 + 0.4 mm
Ambient temperature, maximum
+80 °C
Material of the front ring
ABS, chrome-plated
Gross weight
36 g
Height
20 mm
Spacing
50 x 50 mm
Versions
round, Mushroom button
Probing possible
Yes
Thickness, of the front panel, minimum
1.5 mm
Sealing type
Membrane, Lip gaskets
Fully insulated
Yes
Tightening torque of the screw
0.6 Nm
Material of the operators
Plastic

Mounting

Mounting flange EFM

Diameter hole

22.3 mm

Ambient temperature, minimum

-25 °C

Material of the bellows

Silicone

Colour of the bellows

Black

Mounting flange

Yes

Degree of protection

IP67, IP69K

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NDTP30GR/WS on Applied Automation is $53.00. Order now.
