NDTP30GR/BL Schmersal Pushbuttons
Part#:NDTP30GR/BL
Alt. Part#:103009115
Manufacturer:Schmersal
Category:Pushbuttons
Product Lifecycle:Active
Product description

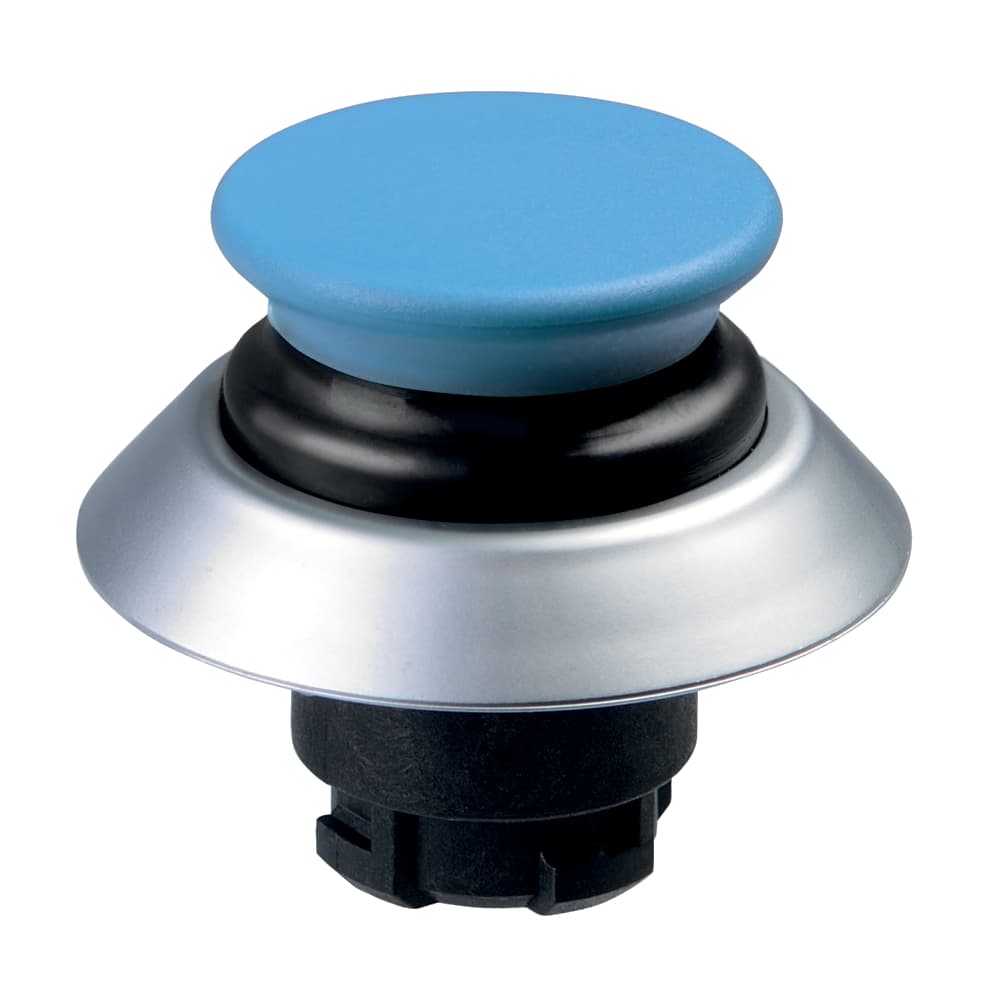

NDTP30GR/BL Schmersal - Mushroom Button from N Series (IP69K)
Product Details
- Material of the front ring ABS, chrome-plated
- Height 20 mm
- Ambient temperature, maximum +80 °C
- Design Round
- Mounting flange Yes
- Mounting Mounting flange EFM
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Colour of the front ring Silver
- Actuating stroke 5 mm
- Thickness of the front panel, maximum 6 mm
- Colour of the operating element Blue
- Standards EN 60947-5-1, IEC/EN 60947-1
- Tightening torque of the screw 0.6 Nm
- Diameter hole 22.3 mm
- Material of the bellows Silicone
- Probing possible Yes
- Degree of protection IP67, IP69K
- Material of the operators Plastic
- Fully insulated Yes
- Spacing 50 x 50 mm
- Versions round, Mushroom button
- Gross weight 36 g
- diameters for the actuating heads 30 mm
- Ambient temperature, minimum -25 °C
- Sealing type Membrane, Lip gaskets
- Colour of the bellows Black
- Thickness, of the front panel, minimum 1.5 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NDTP30GR/BL on Applied Automation is $53.00. Order now.
NDTP30GR/BL Related Documents
Manufacturer warranty
NDTP30GR/BL Schmersal
$53.00
