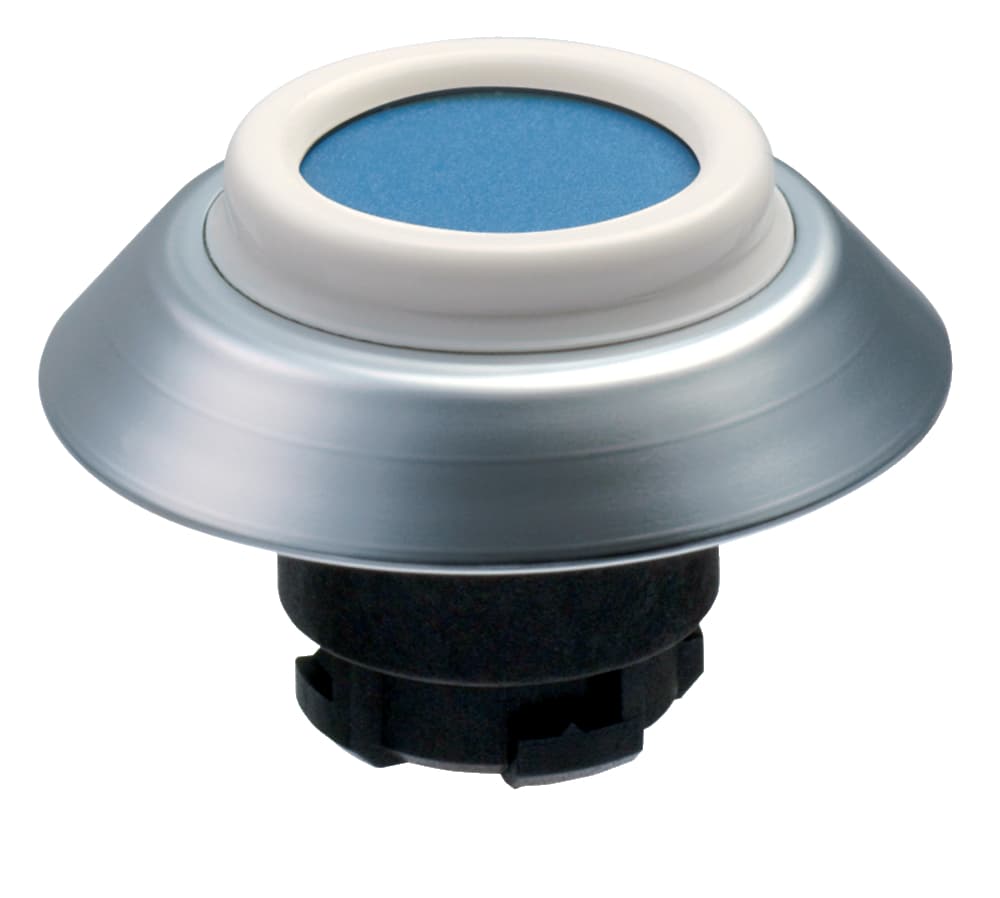

NDTBL/GN Schmersal Pushbuttons
Part#:NDTBL/GN
Alt. Part#:103009714
Manufacturer:Schmersal
Category:Pushbuttons
Product Lifecycle:Active
Product description
Command and signalling devices; "N" program
Product Details
- Design Round
- Mounting Mounting flange EFM
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Colour of the front ring Silver
- Gross weight 25 g
- diameters for the actuating heads 44.5 mm
- Ambient temperature, maximum +80 °C
- Versions Embeddable button - Front plate mounting
- Sealing type Membrane, Lip gaskets
- Tightening torque of the screw 0.6 Nm
- Thickness of the front panel, maximum 6 mm
- Colour of the bellows Blue
- Fully insulated Yes
- Thickness, of the front panel, minimum 1.5 mm
- Material of the operators ABS
- Actuating stroke 5 mm
- Ambient temperature, minimum -25 °C
- Standards EN 60947-5-1, IEC/EN 60947-1
- Probing possible Yes
- Diameter hole 22.3 mm
- Material of the front ring ABS, chrome-plated
- Unlocking without
- Spacing 50 x 50 mm
- Colour of the operating element Green
- Mounting flange Yes
- Height 11 mm
- Degree of protection IP67, IP69K
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NDTBL/GN on Applied Automation is $34.00. Order now.
